An acid scrubber is specified to last 15 years. An SS304 scrubber in HCl service lasts two. The difference is not manufacturing quality or maintenance diligence — it is a fundamental material incompatibility that no amount of weld repair or recoating can fix. Across electroplating lines, chemical processing plants, and semiconductor fabs, the same four failures appear on the same timeline: the shell develops through-wall pitting at 18–24 months, the recirculation tank leaks at the welded seams, the packing clogs with precipitated salts, and the mist eliminator saturates until acidic droplets carry over into the stack.
This article examines why SS304 and FRP fail in acid gas scrubbing — and why PP, a material with no metal to corrode and no resin to delaminate, eliminates each failure mode at its source.
For specifications and pricing, browse our product catalog.
Key Takeaways
- SS304 develops through-wall pitting in HCl service within 18–24 months. Chloride ions penetrate the Cr₂O₃ passive film at grain boundaries. Once initiated, pits grow autocatalytically — the pit interior drops to pH <2 while the surrounding surface remains passive. No weld repair permanently fixes this.
- FRP fails through permeation, not corrosion. HCl and HF molecules diffuse through the resin barrier and attack the glass-fiber structural layer from within. The first visible sign is a blister — by which point 30–50% of structural thickness has delaminated.
- PP eliminates the corrosion mechanism entirely. PP is a hydrocarbon polymer — chemically inert to HCl, H₂SO₄, HF, and NaOH at pH 0–14 and temperatures up to 80°C. No passive film to pit. No resin to permeate. No fiber to delaminate.
- Packing scaling reduces removal efficiency by 20–40% before any visible symptom. The earliest warning is a 15–20% increase in differential pressure at constant fan speed — detectable months before outlet concentration drifts toward the permit limit.
- Regulatory penalties from a failed scrubber exceed the cost of a PP replacement. CPCB limits of ≤10 mg/Nm³ HCl mean a pitted SS304 scrubber can trigger enforcement actions costing more than a new PP system designed to hold compliance for 15+ years.

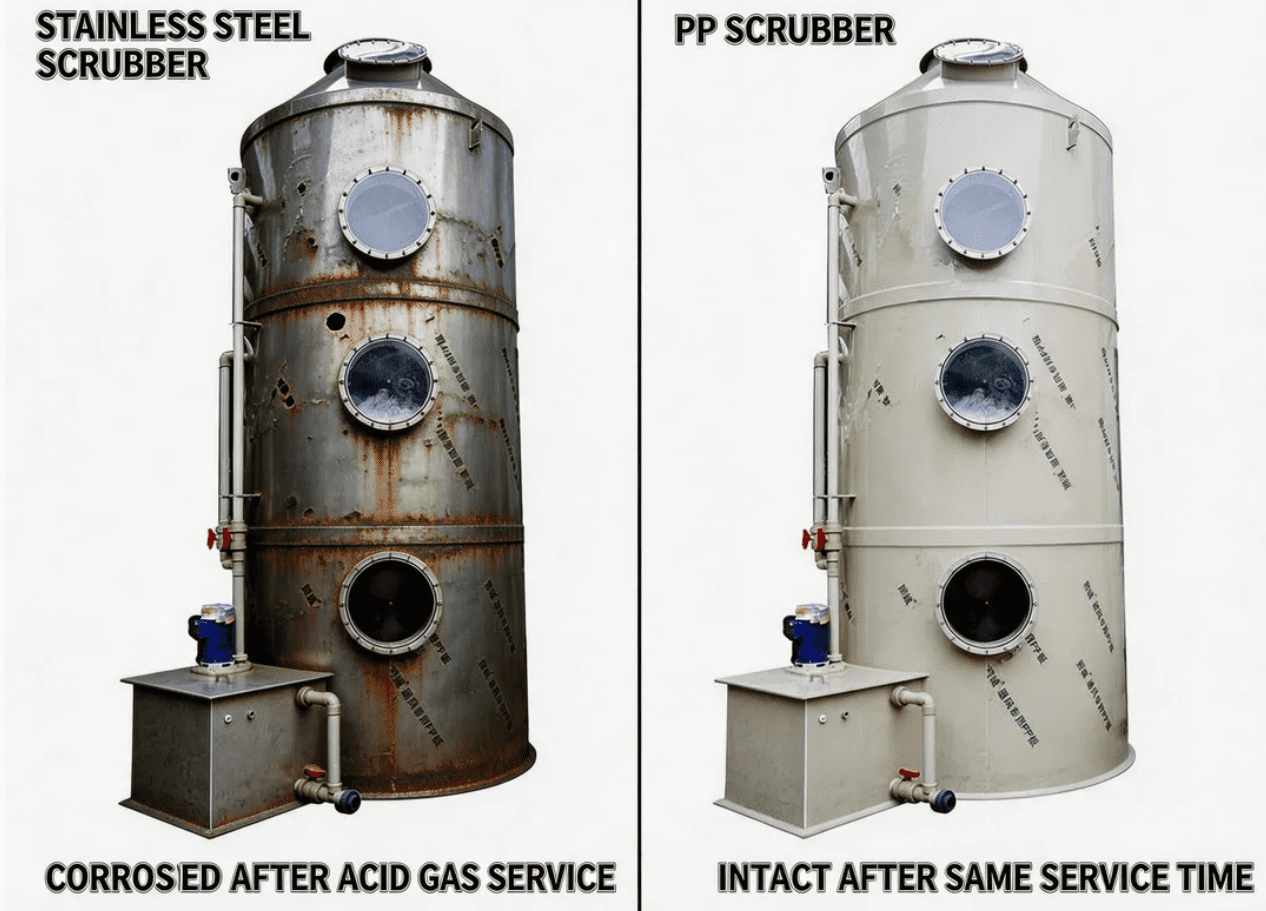

Shell Corrosion: Why SS304 and FRP Fail in Acid Gas Service
The SS304 Pitting Mechanism
SS304 relies on a passive chromium oxide (Cr₂O₃) film — approximately 1–3 nanometers thick — for corrosion protection. This film forms spontaneously when chromium at the alloy surface reacts with dissolved oxygen in the scrubbing solution. As long as the film remains intact, the underlying steel is protected.
Chloride ions destroy this film through a mechanism called pitting corrosion. Cl⁻ ions are small enough to penetrate the Cr₂O₃ lattice at grain boundaries and manganese sulfide inclusion sites. Once a chloride ion reaches the metal surface beneath the film, it forms a soluble iron-chloride complex that dissolves into the scrubbing solution — creating a microscopic pit. The pit interior becomes an oxygen-depleted anode where active dissolution proceeds at 0.1–1.0 mm/year. The surrounding surface remains a passive cathode. The pit chemistry becomes autocatalytic: Fe²⁺ and Cr³⁺ ions hydrolyze to produce H⁺, dropping the pit interior pH below 2.0. The acidic micro-environment prevents the oxide film from reforming inside the pit while the surrounding surface remains intact.
In HCl scrubbing service at 50–80°C, visible pitting appears on SS304 within 12–18 months. Through-wall pinholes — allowing untreated acid gas to bypass the packed bed — typically appear at 18–24 months. Our field data across hundreds of failed SS304 units in electroplating and pickling applications confirms this timeline. It is not a manufacturing defect. It is a material incompatibility.
FRP Permeation and Delamination
FRP addresses external corrosion — the resin-rich barrier resists acid solutions at the surface. But FRP fails through a different mechanism: permeation. HCl and HF are small, polar molecules that diffuse through the resin matrix via Fickian diffusion, driven by the concentration gradient between the high-HCl interior and the ambient exterior.
Once through the corrosion barrier, these molecules attack the glass-fiber structural layer. HCl hydrolyzes the silane coupling agents that bond glass fibers to the resin. HF dissolves the silica glass directly: SiO₂ + 4HF → SiF₄↑ + 2H₂O. The result is delamination — the structural layer separates from the corrosion barrier because the fiber-resin interface has been chemically destroyed from within. An FRP shell can appear intact on external inspection while internal delamination has progressed through 30–50% of the structural thickness. The first visible sign is a blister in the shell wall. At that point, repair costs equal 30–50% of replacement cost and require specialized FRP laminating expertise.
PP: A Material With No Corrosion Mechanism
PP eliminates pitting and permeation because its resistance is intrinsic, not dependent on a passive film or barrier layer. PP is a semi-crystalline hydrocarbon polymer — roughly 50–60% crystalline spherulites in an amorphous matrix. The crystalline regions are impermeable to ionic species (Cl⁻, F⁻, SO₄²⁻) and small polar molecules (HCl, HF). The polymer backbone’s C-C and C-H bonds (348 and 413 kJ/mol) exceed the energy available from chloride or fluoride ion contact at scrubber temperatures below 80°C.
There is no oxide film to pit. There is no resin layer to permeate. There is no fiber reinforcement to delaminate. PP is rated for continuous immersion in HCl at concentrations up to 37% and temperatures up to 80°C. EPA wet scrubber monitoring guidelines identify gas-tight integrity as the primary compliance-critical parameter for corrosive gas service. Homogeneous PP welding fuses the vessel shell into a single continuous piece — no seams, no joints, no interfaces for chemical attack. For the full material comparison across acid service environments, see our acid scrubber maintenance guide.
Tank Failures: The Weakest Link in the Recirculation Loop
Why the Tank Fails Before the Vessel
The recirculation tank operates under conditions that are chemically more aggressive than the scrubber shell. The tank holds the scrubbing solution at its most concentrated — dissolved salts accumulate here, pH is lowest at the sump bottom, and solids settle in a layer that maintains continuous contact with the tank floor and walls. While the vessel shell sees intermittent contact with acid gases, the tank sees continuous immersion in the scrubbing liquid at peak chloride concentration.
In an SS304 tank, chloride concentrations in the sump routinely reach 50,000–80,000 ppm — 3–8× above the pitting threshold. The tank floor, where precipitated solids accumulate, is the most vulnerable zone. Pits initiate beneath the sludge layer where oxygen is depleted, creating the perfect conditions for crevice corrosion: an oxygen-starved anode under the solids and an oxygen-rich cathode at the tank walls. The tank can develop through-wall leaks within 12–18 months — faster than the vessel shell.
FRP tanks face the permeation problem in its most concentrated form. The tank wall is in continuous contact with the scrubbing liquid, maximizing the concentration gradient that drives HCl and HF diffusion through the resin barrier. Delamination in an FRP tank typically initiates at the bottom corner joints, where structural stress concentrates and where the sludge layer maintains constant chemical contact. Once a leak develops at a tank seam, the repair options are limited: FRP patch repairs on a chemically saturated laminate have a high failure rate because the new resin cannot bond effectively to the contaminated substrate.
The PP Tank Solution
A PP tank eliminates both failure modes. PP is chemically inert to the full spectrum of dissolved salts — NaCl, Na₂SO₃, NaF, CaSO₄ — at any concentration encountered in acid scrubbing. There is no chloride pitting threshold because there is no metal to pit. There is no permeation because the crystalline regions of the polymer are impermeable to ionic species.
The tank is fabricated from PP sheet using homogeneous extrusion welding — the same material is melted and fused, creating a continuous chemical bond between the tank wall and floor. The welded joint has the same chemical resistance as the parent material. No adhesive. No dissimilar material interface. No galvanic corrosion risk. The tank lasts as long as the scrubber shell — 15–20 years in normal acid gas service — because the material that resists the chemistry of the vessel interior also resists the chemistry of the sump.
Packing Scaling: The Gradual Efficiency Killer
How Scaling Destroys Packing Performance
Packing scaling is the slowest of the four failure modes — and the easiest to misdiagnose. The symptoms look like inadequate chemical dosing: outlet concentration gradually rises, pH control becomes erratic, and the operator responds by increasing the NaOH feed rate. But the root cause is not chemical — it is physical. The packing surface area available for gas-liquid contact is shrinking as precipitated salts accumulate on the packing surfaces.
The scaling chemistry depends on the acid species and the scrubbing reagent. In HCl scrubbing with NaOH, the reaction product NaCl is highly soluble and does not scale — but calcium and magnesium carbonates in hard makeup water precipitate as CaCO₃ and Mg(OH)₂ on packing surfaces. In HF scrubbing, the reaction product NaF has limited solubility and can crystallize on packing if the blowdown rate is insufficient. In SO₂ scrubbing with limestone, calcium sulfate (gypsum) precipitates throughout the packed bed. Iron oxides from corroding SS304 internals add a third scaling component — dissolved Fe²⁺ oxidizes to Fe³⁺ and precipitates as Fe(OH)₃, forming a rust-colored coating on packing that further reduces surface area.
Detection and Prevention
The earliest quantifiable indicator of packing scaling is a 15–20% increase in differential pressure across the packed bed at constant fan speed. This pressure drop increase precedes any detectable change in outlet concentration — typically by 3–6 months. Monitoring differential pressure weekly and trending the data over time provides advance warning before removal efficiency degrades to the point of non-compliance.
PP packing resists scaling better than ceramic or metal alternatives because its smooth, hydrophobic surface reduces the number of nucleation sites where crystals can initiate. When scaling does occur on PP packing, the deposits adhere less tenaciously than on ceramic — a high-pressure water wash during a scheduled shutdown typically removes 80–90% of accumulated scale without damaging the packing. Ceramic packing, by contrast, requires chemical cleaning (typically 5–10% HCl solution) to dissolve scale, adding chemical cost and wastewater volume. For detailed packing selection and maintenance scheduling, see our scrubber packing media guide.
Regulatory Non-Compliance: When Scrubber Failure Becomes a Legal Liability
A corroded scrubber is not just a maintenance problem — it is a compliance problem with financial consequences that can exceed the cost of a full system replacement. When an acid scrubber develops through-wall pitting, untreated gas bypasses the packed bed entirely through the perforations. When packing scales over and surface area drops, removal efficiency drifts downward even as the pH controller maintains the correct setpoint. When the mist eliminator saturates, visible plumes exit the stack — a visual signature that attracts regulatory attention.
India’s CPCB mandates HCl outlet concentration ≤10 mg/Nm³ from chemical processes. China’s ultra-low emission standards require similar or tighter limits for acid gases. Facilities that exceed these limits face enforcement actions: mandated shutdowns until the scrubber is repaired or replaced, financial penalties, and public disclosure of violations that affects community relations and future permitting. The cost of a single enforcement action — including lost production during a forced shutdown, penalty payments, and legal fees — can exceed $100,000. That amount buys a complete PP acid scrubber system sized for a 10,000 CFM application.
The compliance risk compounds when the scrubber is specified with SS304 or FRP. An SS304 scrubber that passes its commissioning stack test will not pass the same test three years later — the pitting that has developed over those three years has created permanent bypass pathways. An FRP scrubber with internal delamination may still show acceptable removal efficiency but is one shell blister away from catastrophic failure. The only permanent compliance solution is a material that maintains its original gas-tight integrity and mass transfer performance for the full 15–20 year service life.
Material Comparison: PP vs SS304 vs FRP in Acid Service
| Property | SS304 | FRP | PP |
|---|---|---|---|
| HCl resistance | Pitting within 12–18 months | Good at surface; permeation over 5–7 years | Inert at all concentrations up to 80°C |
| HF resistance | Rapid attack, not recommended | Poor — HF dissolves glass fiber | Resistant up to 60°C (use PVDF above) |
| Chloride pitting threshold | 10,000–20,000 ppm | No pitting mechanism | No limit — rated for saturated brine |
| Service life in HCl | 2–5 years with repairs | 5–10 years (shorter if HF present) | 15–20 years |
| Maintenance requirement | Annual weld inspection, passivation | Blister inspection, UV protection | Visual inspection every 6 months |
| Corrosion allowance needed | 3–6 mm extra wall thickness | Corrosion barrier layer | Zero — no corrosion mechanism |
| Repairability | Weld repair + passivation | FRP patch — limited bond to aged laminate | Hot-gas extrusion weld — same material, same bond |
| 10-year maintenance cost | $72,000 (including 2–3 repair events) | $54,000 (including one delamination repair) | $36,000 (routine inspections only) |
For a typical 10,000 CFM HCl scrubber, a PP system saves approximately $80,000 over ten years compared to SS304. The savings come from three buckets: zero corrosion repair events ($37,000–$68,000 each), 40% lower routine maintenance labor (no weld inspection, no passivation), and 15% lower fan energy consumption (PP’s smooth internal surfaces reduce pressure drop). The initial CapEx premium for PP over SS304 — typically $3,000–6,000 — is recovered within the first avoided repair event at Year 2–3. For the complete cost breakdown, see our acid scrubber system cost analysis.
Frequently Asked Questions
How fast does SS304 actually corrode in an acid scrubber?
Visible pitting appears on SS304 shell surfaces within 12–18 months of continuous HCl service at 50–80°C. Through-wall pinholes — allowing untreated gas to bypass the packed bed — typically develop at 18–24 months. The timeline is consistent across electroplating, pickling, and chemical processing applications where HCl concentrations range from 20–500 mg/Nm³ at the scrubber inlet. The corrosion rate is not linear — once pitting initiates, the pit growth rate accelerates because the pit interior chemistry becomes autocatalytic.
Why does the scrubber tank fail sooner than the vessel shell?
The recirculation tank operates in continuous immersion in the scrubbing liquid at peak chloride concentration (50,000–80,000 ppm), whereas the vessel shell sees intermittent gas-phase contact. The tank floor is the most vulnerable zone — precipitated solids accumulate there, creating oxygen-depleted conditions that accelerate crevice corrosion beneath the sludge layer. This combined chemical-mechanical attack can produce through-wall leaks in an SS304 tank within 12–18 months, faster than the vessel shell.
What causes acid scrubber packing to clog, and how can I prevent it?
Three scaling mechanisms dominate: calcium/magnesium carbonate precipitation from hard makeup water, sodium fluoride crystallization in HF scrubbing with insufficient blowdown, and gypsum (CaSO₄) scaling in limestone-based SO₂ scrubbing. Iron oxides from corroding SS304 internals add a fourth component. Prevention starts with monitoring differential pressure across the packed bed — a 15–20% increase signals scaling months before outlet concentration drifts. PP packing resists scaling better than ceramic because its smooth surface provides fewer nucleation sites. When cleaning is needed, PP packing can be high-pressure water washed; ceramic requires chemical cleaning.
Can an acid scrubber help meet India’s CPCB emission standards?
Yes — a properly specified PP acid scrubber with adequate packing depth routinely achieves outlet concentrations below 10 mg/Nm³ for HCl, the CPCB limit for chemical processes. For HF, the CPCB limit of 5 mg/Nm³ requires deeper packing (3.0–4.0 m vs 1.5–2.5 m for HCl) and a pH setpoint of 10.0–12.0. The scrubber material must be PP — SS304 cannot maintain the gas-tight integrity needed for compliance-level removal beyond 2–3 years, and FRP is incompatible with HF.
Can I retrofit my existing FRP or SS304 scrubber to solve these problems?
Partial retrofits have limited effectiveness. Replacing SS304 internals with PP internals in an SS304 shell extends the life of the internals but does not address shell pitting — the vessel will continue to corrode. FRP shell repairs with patch laminates have a high failure rate because new resin bonds poorly to aged, chemically saturated laminate. The most cost-effective long-term solution is to replace the entire system with PP at the next scheduled major maintenance window. The payback on the PP system, through avoided repair events alone, is typically under 24 months.
Conclusion
The four failure modes that destroy acid scrubbers — shell corrosion, tank leakage, packing scaling, and regulatory non-compliance — share a common root cause. SS304 pits because chloride ions penetrate its passive film. FRP delaminates because HCl and HF permeate its resin barrier. These are not manufacturing defects or maintenance failures. They are material incompatibilities — chemical inevitabilities that follow from specifying a material that is not inert to the species it encounters.
PP eliminates each failure mode at the material level. No metal to corrode. No resin to permeate. No fiber to delaminate. Homogeneous PP welding fuses the vessel, tank, and internals into a single chemically inert system that maintains its original gas-tight integrity and mass transfer performance for 15–20 years — not because of protective coatings or corrosion allowances, but because the material itself is incompatible with the degradation mechanisms that destroy SS304 and FRP.
The economics reinforce the engineering. A PP acid scrubber costs $3,000–6,000 more than an SS304 equivalent at purchase, saves $80,000 over ten years in avoided repairs, reduced maintenance, and lower energy consumption, and eliminates the compliance risk that comes with operating a scrubber that is slowly corroding from the inside out. For a material recommendation matched to your specific acid species, concentration, and operating temperature — Request Your Material Consultation →
