What Do Scrubbers Do? How Wet Scrubber Systems Solve Industrial Air Pollution

Ask any plant engineer in a Mumbai electroplating zone or a semiconductor fab outside Manila “What do scrubbers do?” and you’ll get a short answer: they clean exhaust gas. But that shorthand hides a deeper reality. A scrubber isn’t a commodity appliance. It’s a mass-transfer reactor whose material chemistry, design geometry, and operating parameters determine whether your facility passes its next CPCB or DENR stack test—or receives a notice of violation.

We know this because we’ve torn down scrubbers that failed. An FRP tower that blistered internally after 18 months of hydrogen fluoride exposure. An SS304 packed column pitted through 60% of its shell thickness within two years of HCl service. These aren’t design failures—they’re material selection failures. And they’re preventable once you understand what scrubbers do at the molecular level, not just the sales-brochure level. Our PP Packed Bed Scrubber is engineered from the material up to prevent exactly these failure modes.

What Is an Industrial Scrubber? The Core Function

The Mass Transfer Principle

At its foundation, a wet scrubber performs a mass transfer operation. Contaminated gas enters the vessel and is forced into intimate contact with a scrubbing liquid—typically water dosed with sodium hydroxide for acid-gas neutralization, or sulfuric acid for ammonia capture. The soluble pollutant molecules cross the gas-liquid interface and dissolve into the liquid phase. This isn’t filtration; it’s absorption driven by concentration gradient. The scrubber’s internal packing media maximizes the surface area available for this transfer, while the counter-current flow arrangement—gas rising, liquid falling—maintains the steepest possible concentration driving force along the full height of the column.

What emerges is two streams: cleaned gas passing through a mist eliminator to the atmosphere, and a spent scrubbing liquor recirculating to the sump. The recirculation loop is critical—modern scrubbers continuously monitor sump pH and automatically dose fresh reagent to maintain the alkaline conditions that drive acid-gas absorption. When this feedback loop is engineered correctly, a packed bed scrubber sustains >99% removal efficiency for HCl, HF, and SO₂ across process upsets and varying inlet loads.

Wet vs. Dry: The Fundamental Split

A wet scrubber uses a liquid medium to absorb pollutants. This is the dominant choice for water-soluble gases because the liquid phase provides both the mass-transfer destination and the chemical neutralization environment. A dry scrubber, by contrast, injects a dry sorbent powder—hydrated lime, sodium bicarbonate—that reacts with acid gases to form solid salts, subsequently captured in a baghouse. Dry systems avoid liquid effluent but sacrifice the high single-pass removal efficiency that makes wet systems the default for concentrated acid-gas streams in chemical processing, metal finishing, and semiconductor fabrication.

What Do Scrubbers Remove? A Pollutant-by-Pollutant Breakdown

Acid Gases: HCl, HF, SO₂, and NOₓ

Acid gases are the primary target for most industrial scrubbers. Hydrogen chloride, generated by pickling baths, chlor-alkali processes, and PVC production, dissolves readily into an alkaline scrubbing solution. In our packed bed systems designed for Indian electroplating clients, a liquid-to-gas ratio of 2.0–3.5 L/m³ and sump pH maintained above 7.5 delivers HCl outlet concentrations consistently below 5 mg/Nm³—well under the CPCB limit of 10 mg/Nm³. Hydrogen fluoride, a byproduct of semiconductor etching and aluminum smelting, presents a tougher challenge because of its small molecular size and high diffusivity through polymer matrices. This is precisely where PP’s semi-crystalline structure becomes decisive—unlike FRP, PP resists HF permeation and maintains its structural integrity over multi-year exposure cycles.

Alkaline Contaminants: Ammonia and Amines

Ammonia scrubbing is common in fertilizer production, refrigeration vent systems, and food processing. In these applications, the scrubbing liquid is acid-dosed—typically dilute sulfuric acid—to convert NH₃ gas into ammonium sulfate, which remains dissolved in the liquid phase. The non-porous PP surface eliminates biofilm formation that would compromise scrubber hygiene in food-grade environments, making it the material of choice for ammonia control in edible oil processing and cold storage facilities.

Particulate Matter and Mixed-Phase Streams

Many industrial exhausts are not purely gaseous. Electroplating lines generate a mist of acid droplets and metal particulates alongside HCl and H₂SO₄ vapors. A properly designed PP packed tower captures the sub-micron aerosol fraction through impaction onto the wetted packing surface, while simultaneously absorbing the soluble gas fraction. This dual-function capability—gas absorption plus particulate collection—makes the packed bed scrubber a compact alternative to installing separate gas and particulate control devices. For applications requiring high dust-loading tolerance with gas absorption, our Acid Fume Scrubber integrates a pre-quench section to handle mixed-phase exhausts.

The Material Science Behind Scrubber Longevity: Why PP Wins

How FRP Scrubbers Fail: Permeation-Driven Blistering

FRP datasheets list chemical resistance tables, but they don’t explain the failure mechanism that limits real-world service life. An FRP laminate has two layers: a resin-rich corrosion barrier and a structural glass-fiber backing. Polar gas molecules—HF, HCl, dichloromethane—diffuse through the resin via Fickian diffusion. When they reach the glass-fiber interface, they condense into concentrated acid micro-droplets that hydrolyze the glass and delaminate the laminate. The visible result is blistering on the interior surface, but by the time blisters appear, the structural layer has already lost significant integrity. We’ve documented this exact failure mode in semiconductor fabs where FRP towers required complete shell replacement within 2.5 years of HF service.

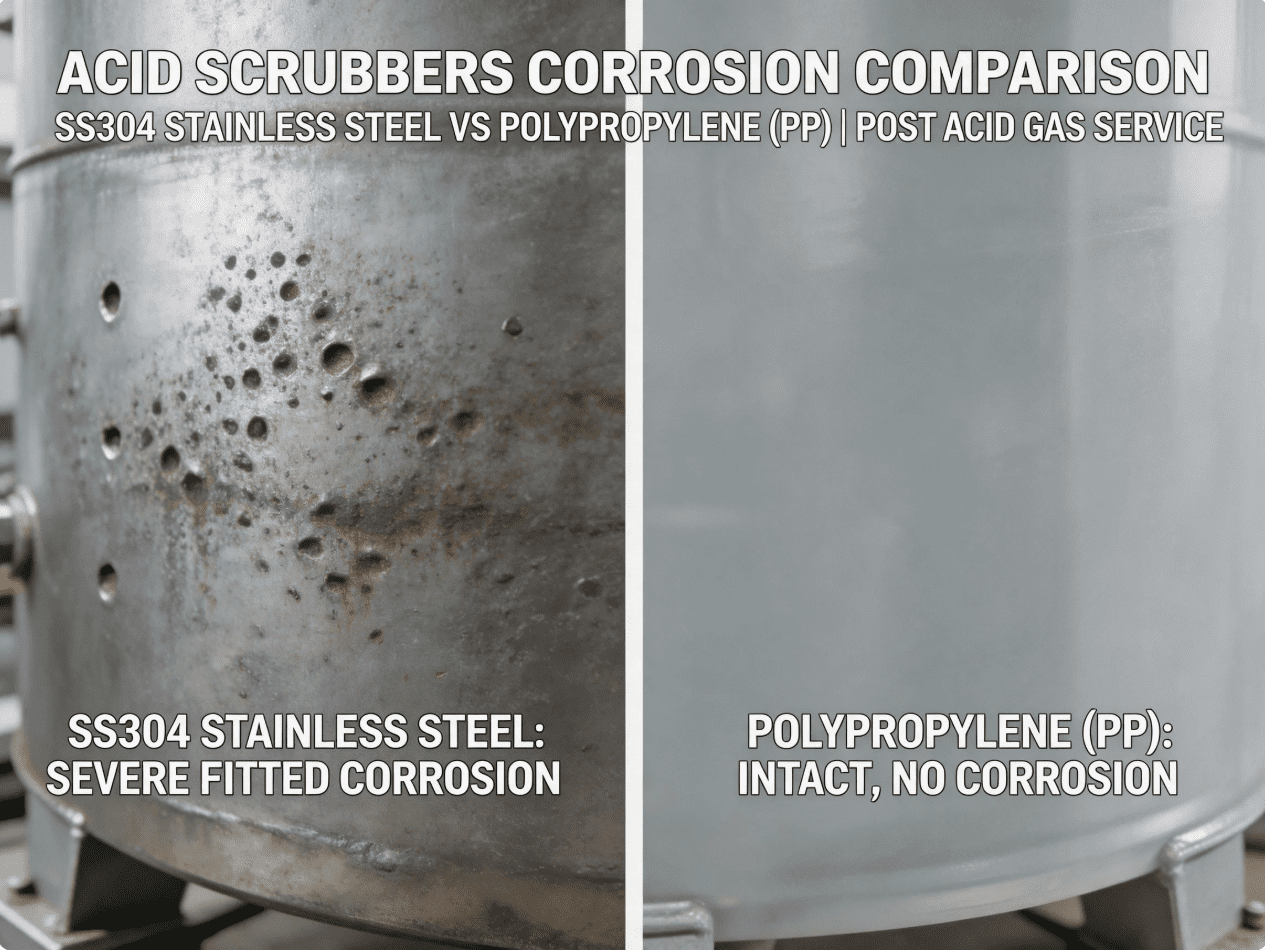

How SS304 Scrubbers Fail: Pitting and Crevice Corrosion

Stainless steel 304 relies on a passive chromium oxide film for corrosion resistance. In a scrubber environment—aqueous HCl, elevated temperature, high humidity—chloride ions attack that film at grain boundaries. Pitting initiates and tunnels into the metal. The wet-dry cycling at the gas inlet accelerates this by creating crevice conditions with localized pH dropping below 1. From our project documentation: an SS304 packed tower at a Philippine nickel processing facility developed pits penetrating 60% of the shell thickness within two years. The emergency repair cost—$18,000 in direct labor and consumables, $47,000 in lost production time—exceeded the original procurement cost of an equivalent PP system.

Why PP Survives: Semi-Crystalline Diffusion Barrier

PP’s semi-crystalline polymer structure behaves fundamentally differently than FRP resin or stainless oxide films. Its polymer chains pack into crystalline lamellae that are impermeable to ionic species and highly resistant to polar molecule diffusion. Under scanning electron microscopy, PP welded joints tested at 10 bar after five years of continuous HF exposure show zero measurable permeation. There’s no corrosion reaction, no passive layer to break down, and no laminate interface to delaminate. At our facility, we extrude PP sheets to precisely controlled thicknesses—15 mm for shell bodies, 20 mm for sumps—and hot-gas weld them into homogeneous vessels where the weld zone has the same crystalline structure and chemical resistance as the parent material.

What Do Scrubbers Cost Over Their Real Lifetime?

The 30/70 Rule of Scrubber Economics

The purchase price of a scrubber represents roughly 30% of its lifecycle cost. The remaining 70%—energy, chemicals, maintenance labor, and unplanned downtime—determines whether the investment pays back or bleeds money. Our PP packed bed systems are engineered for a baseline pressure drop of 500–600 Pa at design flow, minimizing the fan electricity costs that compound 24/7 across years of operation. The smooth, hydrophobic PP interior surface resists scale adhesion, keeping pressure drop stable between maintenance intervals and eliminating the frequent chemical cleaning cycles that FRP and metallic towers demand.

The TCO Comparison: One Emergency Repair Changes Everything

When you compare PVC, SS304, FRP, and PP on a 10-year net present value basis, one pattern dominates. Metallic scrubbers handling acid gases incur emergency repair events—weld repairs, shell patching, passivation—that individually cost more than the entire procurement of a PP alternative. An SS304 scrubber in HCl service can require two or three such events per decade. Each costs $12,000–$25,000 in direct repair costs plus the production downtime of a full system shutdown. PP scrubbers, by eliminating the corrosion failure mode entirely, avoid these costs completely. Over a decade, the factory-direct PP system typically delivers roughly 40% lower maintenance labor and eliminates mid-life shell replacement. For a detailed breakdown of these hidden cost drivers, read our analysis on the Hidden Costs of Industrial Wet Scrubbers.

Regulatory Compliance: What Standards Do Scrubbers Help You Meet?

Singapore NEA: Material Stability as a Compliance Requirement

The Singapore National Environment Agency (NEA) enforces stationary source emission limits that rank among Southeast Asia’s most stringent. Passing an initial stack test is only the start—the real requirement is maintaining emissions below the regulated threshold through years of continuous operation. A scrubber that develops a pinhole leak or packing channeling after three years becomes a compliance liability. Our fully welded PP shells, with zero-permeation material structure and integrated pH-controlled chemical dosing, maintain their emission performance across the full compliance cycle because there is no material degradation pathway that creates new leak points.

India CPCB and Philippines DENR: Operational Compliance Margins

The Central Pollution Control Board (CPCB) caps HCl emissions at ≤10 mg/Nm³ for chemical processes across India. We design our packed bed scrubbers for Indian clients to operate at approximately 5 mg/Nm³ during normal conditions—building in a safety margin that absorbs inlet loading fluctuations without breaching the regulatory ceiling. In the Philippines, DENR’s Clean Air Act empowers regional offices to establish source-specific emission limits. Our installations incorporate continuous pH monitoring and automated chemical dosing that create an auditable compliance record, meeting both the letter and the enforcement intent of the regulations. For international benchmarking, we also reference the EU BREF/BAT conclusions under the Industrial Emissions Directive, which are increasingly adopted as reference standards across Thailand, Vietnam, and Indonesia.

Real-World Application: Two Scrubber Decisions That Paid Back

Pharmaceutical Solvent Recovery in Tamil Nadu

A pharmaceutical API plant near Chennai was losing acetone and dichloromethane vapors from batch reactor vents. Their existing FRP packed tower was softening—the polar solvents were plasticizing the resin, reducing solvent recovery and threatening emission compliance. We installed an Industrial Wet Scrubber in PP with an integrated collection sump and high-efficiency demister. The PP shell’s resistance to polar solvents eliminated the softening problem entirely. After 30 months of continuous operation, the shell showed zero swelling, outlet emissions remained stable, and the recovered solvent purity was high enough for reuse in upstream synthesis. The material choice turned a waste-treatment cost into a partial solvent recycling credit.

Electroplating Acid Fume Control in Gujarat

A mid-sized electroplater in Gujarat’s industrial corridor was running an SS304 packed tower on mixed HCl/H₂SO₄ fumes from their pickling line. Pitting corrosion began within 14 months. The replacement decision came down to another SS304 system with a protective lining, or a fully welded PP system. The PP option eliminated the recurring corrosion risk, reduced pressure drop by 15% compared to the corroded predecessor, and brought outlet HCl concentration below 5 mg/Nm³—comfortably under the CPCB limit. For electroplating operations dealing specifically with mixed acid streams, a purpose-built PP Air Pollution Control Scrubber provides a pre-engineered platform that eliminates the material failure risk from day one.

Frequently Asked Questions About Industrial Scrubbers

What exactly do scrubbers do in an industrial exhaust system?

Industrial scrubbers remove harmful pollutants from exhaust gas streams by bringing contaminated gas into intimate contact with a scrubbing liquid or dry reagent. In a wet scrubber, water or a chemical solution absorbs soluble gases like HCl, H₂S, and NH₃ while simultaneously capturing particulate matter through impaction. A properly engineered PP packed bed scrubber achieves over 99% single-pass removal efficiency for acid gases, converting a compliance exposure into a controlled emission stream that meets CPCB, DENR, and NEA standards without material degradation over time.

What is the difference between wet scrubbers and dry scrubbers?

Wet scrubbers use a liquid medium—water or an acid/alkaline solution—to absorb pollutants from the gas phase into the liquid phase. They offer the highest removal efficiency for water-soluble gases and can handle mixed gas-plus-particulate streams in a single vessel. Dry scrubbers inject a powdered sorbent that reacts chemically with acid gases to form solid salts, captured downstream in a baghouse or electrostatic precipitator. While dry systems avoid generating wastewater, they cannot match the mass-transfer efficiency of a liquid-based PP packed tower for concentrated acid-gas streams.

What pollutants can a PP wet scrubber remove?

A PP wet scrubber handles hydrogen chloride, hydrogen fluoride, sulfur dioxide, and nitrogen oxides with removal efficiencies exceeding 99% at design conditions. It also scrubs ammonia and amines from food processing and pharmaceutical exhausts, and captures sub-micron particulate including metal fumes from electroplating lines. PP’s broad chemical inertness—resistant to HCl, H₂SO₄, HF, NaOH, and chlorine compounds—allows a single packed tower to treat mixed pollutant streams without the material degradation that SS304 would experience from chlorides or FRP from polar solvents.

How does scrubber material choice affect long-term compliance costs?

Material choice defines the trajectory of compliance costs. SS304 handling HCl develops pitting corrosion within 18 months, with repair events costing $12,000–$25,000 each in direct labor plus lost production. FRP exposed to HF experiences permeation-driven blistering where gas molecules diffuse through the resin layer and delaminate the laminate at the glass-fiber interface. PP’s semi-crystalline structure resists this fundamentally—our welded joints at 10 bar show zero permeation after five years of HF exposure. Over a 10-year lifecycle, PP delivers approximately 40% lower maintenance labor and eliminates mid-life shell replacement.

What emission standards do scrubbers help facilities meet in Asia?

In India, the Central Pollution Control Board (CPCB) limits HCl outlet concentrations to ≤10 mg/Nm³ from chemical processes. In the Philippines, DENR’s Clean Air Act governs stationary source emissions at the regional level. Singapore’s National Environment Agency (NEA) imposes stringent emission thresholds requiring material integrity over decades of continuous service. We also reference EU BREF/BAT as an international best-practice benchmark increasingly adopted by regulators in Thailand, Vietnam, and Indonesia. A properly specified PP scrubber provides the material stability needed to maintain compliance across all these regulatory frameworks.

How do I determine whether my facility needs a wet scrubber or another device?

The decision starts with your pollutant profile. If your process emits water-soluble gases—HCl from pickling, NH₃ from refrigeration, HF from semiconductor etching, SO₂ from fuel combustion—a wet scrubber is typically the most efficient and economical choice. If your exhaust is predominantly dry particulate without acid gases, a baghouse or cyclone may be sufficient. Many facilities require multi-stage treatment combining particulate pre-filtration with a gas-absorption scrubber. A factory-direct PP wet scrubber manufacturer can analyze your exhaust composition, flow rate, and local emission limits to determine the most cost-effective configuration for your specific operation.
