In 2024, we replaced an SS304 packed bed scrubber at a Malaysian electroplating facility that had been in service for 23 months. The shell had five through-wall perforations — the largest 8 mm in diameter — all concentrated within 30 cm of the HCl gas inlet. The facility manager told us the purchase price was “$12,000 less than the PP option.” He paused. “That was the most expensive $12,000 I ever saved.” The two emergency repairs, lost production during the five-day outages, and the replacement PP system together cost $94,000 — roughly 8× the initial “savings.”
Scrubber technology is not defined by the vessel shape, the packing type, or the control system. It is defined by the material that stands between corrosive acid gases and the atmosphere. Change the material from PP to SS304, and the technology changes from a 15-year compliance asset to a 2-year corrosion liability. The packing geometry, the L/G ratio, and the pH control strategy are secondary — they determine how efficiently the scrubber removes pollutants, but only the material determines whether the scrubber survives long enough for that efficiency to matter.
For specifications and pricing, browse our product catalog.
Key Takeaways
- PP eliminates corrosion as a failure mode — no passive film to pit, no resin to permeate. In 500+ installations across 30 countries, PP scrubbers in HCl/HF/H₂SO₄ service average 15–20 years before replacement. SS304 in the same service averages 2–3 years.
- Wet packed bed scrubbers achieve 95–99.5% removal of water-soluble acid gases; dry scrubbers achieve 80–90% with no liquid handling. Wet is the default for acid gases when water is available. Dry is the choice when water is scarce, freezing is a risk, or wastewater permits are tight.
- PP is not the right material above 80°C or with concentrated oxidizing agents. For hot gas streams, PVDF extends polymer-based resistance to 120°C. For hot + oxidizing, Hastelloy C-276 is justified — at 3–5× CapEx. Knowing PP’s limits is as important as knowing its advantages.
- The 10-year TCO of a PP scrubber is $134,400 lower than SS304 in HCl service. The $3,000–6,000 CapEx premium is recovered within 18–24 months — the first avoided emergency repair. After payback, savings come from 40% lower maintenance labor and zero corrosion inspection.
- EPA 40 CFR Part 60 and CPCB emission limits (HCl ≤10 mg/Nm³) require scrubber materials that maintain gas-tight integrity for 15+ years. A corroded scrubber cannot meet its emission permit — regardless of packing depth, L/G ratio, or reagent quality.

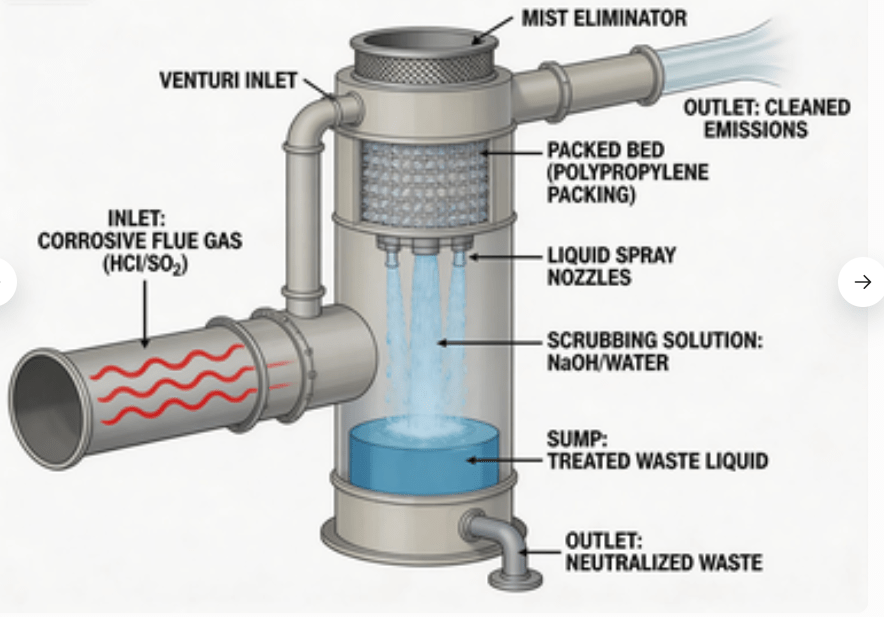

Wet Scrubber Technology: How Packed Bed Absorption Works
A wet packed bed scrubber removes acid gases by bringing the exhaust stream into contact with a scrubbing liquid — typically water with a neutralizing reagent — across the wetted surface of packing media. The pollutant transfers from the gas phase into the liquid phase through absorption. If the scrubbing liquid contains a reactive chemical (NaOH for acids, H₂SO₄ for ammonia), a simultaneous neutralization reaction converts the dissolved pollutant into a stable, soluble salt that remains in the liquid phase.
The packing provides the surface area where this gas-liquid contact occurs. Random packing — 25 mm PP Pall rings, saddles, or Tri-Packs — offers 100–250 m² of wetted surface per cubic meter of packed volume. Structured packing exceeds 400 m²/m³. The packing depth required is calculated from the target removal efficiency: Z = HETP × NTU, where NTU = −ln(1 − η). For 95% HCl removal, NTU = 3.0. For 99.5%, NTU = 5.3 — the last 4.5 percentage points of removal efficiency require 77% more packing height. This nonlinear relationship is why specifying the removal target first — not the packing depth — is the correct design sequence.
The L/G ratio controls how much of that packing surface is actually wetted. For HCl with NaOH: 2.0–4.0 liters of liquid per cubic meter of gas. For HF: 3.0–5.0 L/m³ — higher because HF’s weak-acid behavior (pKa = 3.17) means the mass transfer driving force is lower at the same pH. The recirculation pump and the L/G ratio are locked together: doubling L/G doubles the pump electricity consumption. The optimal L/G is the minimum that achieves the target removal — no more. For the complete sizing methodology with worked examples, see our scrubber sizing calculation guide.

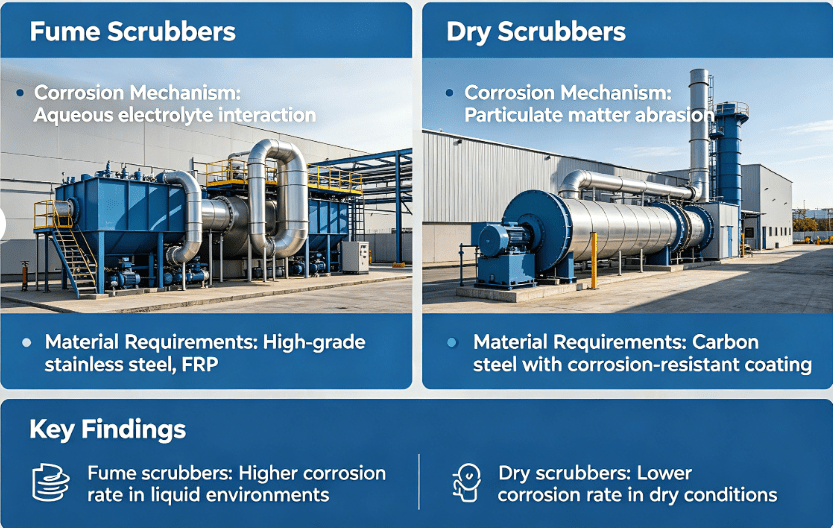

Dry Scrubber Technology: When Water Is Not an Option
Dry scrubbers inject a dry alkaline powder — hydrated lime, trona, or sodium bicarbonate — into the exhaust duct. The sorbent reacts with acid gases in the gas phase to form solid salts, which are collected downstream by a baghouse or electrostatic precipitator. There is no liquid recirculation loop, no sump, no blowdown, and no wastewater discharge. The technology eliminates water from the pollution control process entirely.
The trade-off is removal efficiency. Dry sorbent injection achieves 50–80% SO₂ removal and 80–90% HCl removal — lower than the 95–99.5% of a wet packed bed. The sorbent is consumed at 2–3× the stoichiometric ratio, versus 1.05–1.10× for wet limestone FGD, because gas-solid contact is less efficient than gas-liquid contact. The spent sorbent, mixed with fly ash, must be landfilled — a disposal cost that wet FGD avoids by producing saleable gypsum. Dry scrubbers are the correct choice when water is scarce, when freezing risk makes wet systems impractical, or when the facility’s wastewater permit cannot accommodate scrubber blowdown. They are not a cheaper wet scrubber — they are a different technology for a different operating constraint. For the complete comparison with cost data, see our dry vs wet scrubber guide.
The Material That Defines the Technology
Whether wet or dry, the scrubber housing material determines the system’s service life. Most of the corrosion attention goes to wet scrubbers — and rightly so, because the continuous liquid contact creates the highest corrosion demand. But dry scrubbers handling acid gases also see acidic condensation during startup, shutdown, and temperature excursions. The housing material matters regardless of the scrubbing medium.
For wet scrubbers handling HCl, HF, or H₂SO₄ below 80°C, PP is the standard material. We specify it because we have replaced enough SS304 and FRP systems to know what happens when it isn’t specified. PP’s chemical resistance comes from its molecular structure — a hydrocarbon backbone with bond energies (C-C: 348 kJ/mol, C-H: 413 kJ/mol) that chloride and fluoride ions cannot break at scrubber temperatures. There is no passive film to maintain. There is no resin barrier to monitor for permeation. The material is either compatible with the environment or it isn’t — and for acid gases below 80°C, PP is compatible. CPCB emission standards require HCl outlet ≤10 mg/Nm³ — a limit that demands the scrubber maintain gas-tight integrity for its full service life, which only a corrosion-proof material can guarantee.
Frequently Asked Questions
How does PP compare to stainless steel for corrosive emissions?
PP is chemically inert to HCl, HF, and H₂SO₄ at pH 0–14 and temperatures up to 80°C. SS304 in HCl service develops through-wall pitting within 18–24 months. We have documented this timeline across hundreds of failed SS304 units — it is consistent across electroplating, pickling, and chemical processing applications. PP costs 5–10% more than SS304 at purchase and saves $134,400 over 10 years by eliminating corrosion repair events, reducing maintenance labor by 40%, and lowering fan electricity through smoother internal surfaces. The question is not which material is cheaper — it is which material lasts. For the complete 10-year cost breakdown, see our acid scrubber cost analysis.
What are the limitations of PP scrubber technology?
PP has two hard limits. Temperature: maximum continuous service is 80°C. Above this, the crystalline regions soften and the material loses mechanical strength. The engineering solution is a quench section upstream of the PP vessel — not a different material. Oxidizer compatibility: concentrated nitric acid, hypochlorite solutions, and peroxides attack the polymer backbone. For gas streams combining high temperature (>80°C) with aggressive oxidizers, PVDF (to 120°C) or Hastelloy C-276 are the appropriate materials. These conditions describe fewer than 10% of industrial acid-gas applications. For the other 90%+, PP is the correct choice — and knowing its limits means knowing when it isn’t.
Do I need a wet scrubber or a dry scrubber for corrosive gases?
If your facility has reliable water supply, wastewater discharge capacity, and the pollutant is a water-soluble acid gas (HCl, HF, H₂SO₄, SO₂) — wet packed bed. It achieves 95–99.5%+ removal at the lowest lifecycle cost. If water is scarce, freezing is a concern, or your wastewater permit cannot accommodate blowdown — dry sorbent injection. It achieves 80–90% removal with no liquid handling. The decision is not about which technology is “better” — it is about which constraint dictates the choice. For facilities that can operate a wet system, wet delivers higher removal at lower operating cost. For facilities that cannot, dry delivers adequate removal where wet is not an option.
How long does a PP scrubber last compared to FRP?
A properly fabricated PP scrubber in acid gas service lasts 15–20 years. FRP in the same service lasts 5–15 years — with the wide range reflecting the fabrication-dependency of FRP laminate quality and whether HF is present. HF dissolves the glass fiber in FRP (SiO₂ + 4HF → SiF₄↑ + 2H₂O), making FRP fundamentally incompatible with HF service regardless of resin type or laminate quality. PP contains no silica — HF has nothing to attack. This is not a performance difference; it is a chemical compatibility difference. For HF at any concentration, PP or PVDF are the only polymer options. EPA monitoring guidelines require material integrity verification as part of ongoing scrubber compliance.
Conclusion
Scrubber technology is material science applied to pollution control. The packing geometry, the L/G ratio, the pH setpoint, and the control system determine how efficiently the scrubber removes pollutants. The material of construction determines whether the scrubber survives long enough for that efficiency to matter. We have replaced SS304 scrubbers that achieved 99% HCl removal at commissioning and 60% removal 18 months later — not because the packing depth changed, not because the pH control drifted, but because through-wall pinholes created gas bypass pathways that no amount of chemical adjustment could close.
The three decisions that determine whether a scrubber is a 15-year asset or a 2-year liability are made before the purchase order is signed. First: match the scrubber type to the pollutant — packed bed for water-soluble acid gases, venturi for submicron particulate, carbon adsorption for VOCs. Second: select a material that is chemically compatible at peak concentration and maximum temperature — for the 90%+ of acid-gas applications below 80°C, that material is PP. Third: size the packing depth from the required removal efficiency with a 1.2–1.5× safety factor — Z = HETP × NTU, where NTU comes from your permit limit, not a catalog recommendation. The purchase price comparison comes after these three decisions, not before.
