Dry Scrubber vs Wet Scrubber: Which One for Your Facility? (Cost & Selection)

The dry scrubber vs wet scrubber decision is not a technology preference — it is a 10-year financial commitment. A dry sorbent injection system costs 30–40% less on day one but generates recurring solid waste disposal costs of $100–300 per ton. A wet caustic scrubber costs more upfront but delivers 95–99%+ removal with lower reagent costs, zero hazardous solid waste, and a 15–20 year service life when built from polypropylene. This guide provides the data, the cost model, and the decision framework that plant managers need to make the right long-term choice for their specific acid gas application.

This article focuses on the dry scrubber vs wet scrubber comparison — technology mechanisms, 10-year TCO breakdown, and selection criteria. For individual technology deep-dives, see our acid fume scrubber types guide (wet scrubber configurations) and our acid scrubber maintenance guide (operational lifecycle).

For specifications and pricing, browse our product catalog.

Key Takeaways

• A dry sorbent injection (DSI) system costs 30–40% less in capital ($300–800/kW) than a wet caustic scrubber ($500–1,200/kW), but the operating cost crossover occurs within 2–3 years. Dry systems consume $0.50–2.00/lb of lime sorbent and generate $100–300/ton of hazardous solid waste disposal costs. Wet systems use NaOH at $0.50–1.50/lb with no solid waste — only a neutral salt blowdown manageable through standard wastewater treatment.
• Wet caustic scrubbers achieve 95–99%+ removal for HCl, HF, and SO₂ in a single stage — dry scrubbers typically reach 70–90% and require a downstream polishing stage for emission limits below 20 mg/Nm³. The efficiency gap is structural: wet scrubbers continuously renew the gas-liquid contact surface, while dry sorbent particles lose active sites as reaction products coat the exterior. For tightening CPCB and EU BREF limits, the dry system’s polishing stage erases its initial capital advantage.
• The 10-year TCO for a 20,000 CFM system treating HCl shows wet caustic scrubber at $163,500 vs dry sorbent at $243,400 — a $79,900 advantage for the wet system. The dry system’s lower capital ($48,000 vs $68,000) is offset by $45,000/year in hazardous waste disposal, $18,900/year in sorbent cost, and a mandatory mid-life ductwork replacement at year 5–7. A real-world case study from a Thai alloy manufacturer confirmed a 14-month payback on switching from dry to wet.
• The decision framework comes down to five variables: emission limit, gas temperature, water availability, waste disposal infrastructure, and pollutant concentration. Dry scrubbers are favored when water is scarce, the gas is cool and dry, and emission limits are above 50 mg/Nm³. Wet scrubbers are favored when limits are tight, the gas is hot or humid, or multiple pollutants must be removed simultaneously.
• Hybrid systems — DSI upstream of a wet polishing scrubber — combine the dry system’s low-cost bulk removal with the wet system’s high-efficiency finish. This configuration reduces the wet scrubber size (and capital) by 30–40% while maintaining 99%+ overall removal. The hybrid approach is increasingly specified for retrofits where existing ductwork cannot support a full wet system in the available footprint.

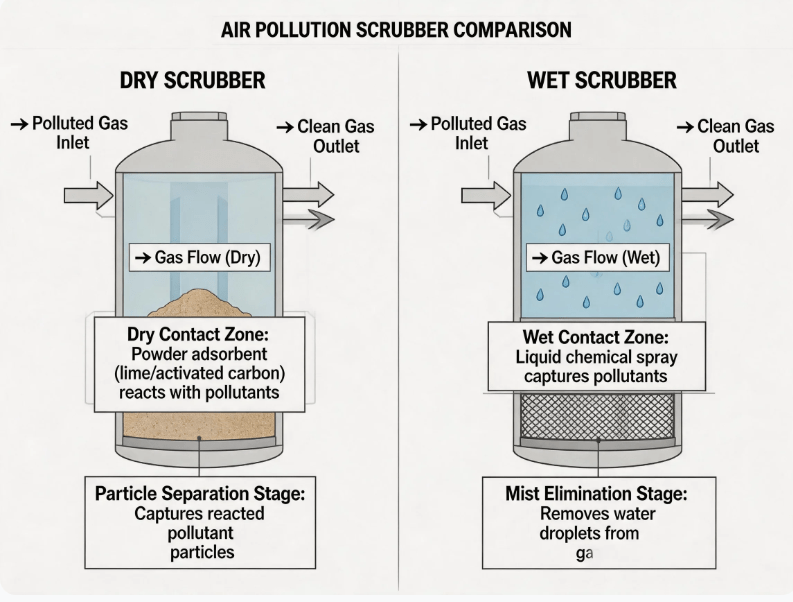

How Dry Sorbent Injection Works: Sorbent Types and Trade-offs

Dry sorbent injection (DSI) is the simplest acid gas control technology: a dry alkaline powder is injected into the exhaust duct, reacts with acid gases in flight, and the reacted particles are captured by a downstream fabric filter (baghouse) or electrostatic precipitator (ESP). No liquid, no recirculation pump, no wastewater. But the simplicity comes with constraints that directly affect operating cost and compliance reliability.

Three Sorbent Types

Hydrated lime dominates DSI applications for coal-fired boilers and waste-to-energy plants because it costs 60–80% less per pound than sodium bicarbonate. But the lower per-pound cost is partially offset by the higher stoichiometric ratio — lime requires 2–3 moles per mole of HCl, while sodium bicarbonate reacts at closer to 1.2–1.5 moles per mole. For a 500 MW plant burning 2% sulfur coal, annual lime consumption can exceed 10,000–15,000 tons, generating an equal mass of solid waste that must be landfilled at $100–300/ton.

The Disposal Problem

The spent sorbent from a DSI system is not inert. It contains reacted calcium chloride (CaCl₂) or sodium chloride (NaCl), unreacted lime, and captured heavy metals (mercury, lead, cadmium) from the coal. In many jurisdictions, this solid waste classifies as hazardous — requiring lined landfill disposal at $150–300/ton. Even when classified as non-hazardous, disposal costs run $80–150/ton. A 500 MW plant generating 10,000 tons/year of spent sorbent faces $800,000–3,000,000/year in disposal costs alone — a number that rarely appears in the initial equipment quotation.

How Wet Caustic Scrubbing Works: The Chemistry Advantage

A wet caustic scrubber neutralizes acid gases through a liquid-phase chemical reaction inside a packed tower. The contaminated gas enters from below and flows countercurrent to a recirculating sodium hydroxide (NaOH) solution sprayed from above. As gas passes through the wetted packing, acid molecules dissolve into the liquid film and react instantly with hydroxide ions — HCl + NaOH → NaCl + H₂O, SO₂ + 2NaOH → Na₂SO₃ + H₂O, HF + NaOH → NaF + H₂O. The reaction is effectively instantaneous at the gas-liquid interface, completing in under 0.1 seconds.

This liquid-phase reaction is the fundamental advantage of wet scrubbing over dry sorbent injection. In a dry system, the reaction occurs on the outer surface of a solid particle — once that surface is coated with reaction product, the unreacted core is sealed off. In a wet system, the liquid continuously refreshes the reaction surface. Every molecule of NaOH in the recirculation loop is available for reaction at every pass through the packed bed — the gas-liquid contact surface is renewed millions of times per hour.

Why This Matters for Tight Emission Limits

For emission limits above 50 mg/Nm³, the difference between 85% removal (dry lime DSI) and 95% removal (wet caustic) may not matter — both meet the permit. But when limits tighten to 20 mg/Nm³ (India CPCB for HCl) or 10 mg/Nm³ (EU BREF BAT-AEL), the dry system falls short. At 85% removal efficiency with a 200 mg/Nm³ inlet, the dry system outlet is 30 mg/Nm³ — 50% over the CPCB limit. The wet system at 99% removal delivers 2 mg/Nm³ — well within the limit with margin for process upsets. The dry system would need a downstream polishing stage (a second smaller DSI reactor or a wet scrubber tail) to meet the limit — adding both capital and operating cost that erases its initial advantage.

For the detailed wet scrubber design methodology — packing selection, tank design, and 10-year TCO — see our acid fume scrubber types and tank design guide.

Side-by-Side Technology Comparison

The dry scrubber vs wet scrubber comparison below is based on a 20,000 CFM system treating mixed HCl and SO₂ exhaust from an electroplating or chemical processing facility — the most common application across our 500+ installations. All cost figures are in USD.

The energy cost advantage of the dry system ($2,800 vs $4,200 annually) is real but marginal — $1,400/year. This is dwarfed by the reagent cost difference ($10,870/year) and the waste disposal difference ($38,200/year). The wet caustic scrubber’s annual operating cost advantage over the dry system is approximately $47,670/year for this 20,000 CFM application — which compounds to $476,700 over 10 years.

10-Year TCO Model: Capital, Reagent, Energy, Waste

Capital cost is a one-time event. Operating cost is a 10-year commitment. The total cost of ownership (TCO) model below captures both — drawn from actual project close-out data for a 20,000 CFM system treating mixed HCl and H₂SO₄ exhaust from an electroplating facility. The EPA Air Pollution Control Cost Manual (7th Edition) provides the reference methodology for this calculation.

The wet caustic scrubber costs $23,000 more on day one. Over the decade that follows, it saves $488,200. The crossover point — where cumulative wet system costs become lower than cumulative dry system costs — occurs at month 18. After month 18, the wet system’s advantage compounds every year.

The single largest cost driver in the dry system is solid waste disposal: $450,000 over 10 years. This number assumes non-hazardous classification at $100/ton. If the spent sorbent is classified as hazardous (which occurs when heavy metals from the process gas are captured), disposal costs rise to $200–300/ton — adding $300,000–600,000 to the 10-year total. The wet system’s blowdown is a neutral salt solution (NaCl, Na₂SO₄) that is treated through standard wastewater facilities at a fraction of the cost.

The hydropurewater.com engineering breakdown confirms these figures: “wet scrubbers typically cost 20–40% more in capital expenses than dry scrubbers ($500–1,200/kW vs $300–800/kW), but dry scrubbers incur higher reagent costs ($0.50–2.00/lb for lime vs $0.10–0.30/gal for water in wet systems).” The cost crossover is not speculative — it is documented across hundreds of installations.

Decision Framework: Which Scrubber When

The dry scrubber vs wet scrubber choice depends on five site-specific variables. No single factor is decisive — the right answer requires weighing all five against your facility’s specific conditions. The framework below maps each variable to the technology it favors.

The doverbrooklyn.com selection guide summarizes: “Wet scrubbers are generally the preferred choice when your process involves sticky or hygroscopic particulates, you need simultaneous particulate and gas removal, the process stream contains high-temperature gases, or you are dealing with flammable or dusts.” Dry scrubbers “tend to be preferred when water availability is a significant constraint, the process operates in a cold climate, the exhaust stream is relatively cool and dry, or your facility has limited footprint for liquid waste infrastructure.”

In practice, the decision is rarely 100% in one direction. A facility with tight emission limits but limited water may choose a hybrid system (DSI + wet polishing) that combines the dry system’s low water use with the wet system’s high efficiency. A facility with permissive limits but abundant water may still choose a wet scrubber because the 10-year TCO is lower and the compliance margin is higher.

Hybrid Systems: DSI Upstream + Wet Polishing Scrubber

When neither a dry nor a wet scrubber alone is the optimal answer, a hybrid configuration combines both. The dry sorbent injection (DSI) stage handles the bulk of acid gas removal at low cost — capturing 70–85% of the HCl or SO₂ with hydrated lime at $0.10–0.25/lb. The downstream wet caustic polishing stage then removes the remaining 90–99% of the residual acid gas, bringing the combined system to 99%+ overall removal at a fraction of the wet-only system’s capital cost.

The hybrid approach is specified in three scenarios. First, retrofits where existing ductwork and footprint cannot accommodate a full wet scrubber tower — the DSI injection point sits in the existing duct, and the wet polishing scrubber is a smaller, secondary unit. Second, high-inlet-concentration applications (500+ ppm HCl) where a single-stage wet scrubber would require excessive packing depth or NaOH consumption — the DSI stage reduces the inlet loading to a manageable 50–100 ppm before the wet stage. Third, facilities transitioning from dry-only to wet systems incrementally — the DSI stage is installed first for immediate compliance, and the wet polishing stage is added later when budget allows.

A hybrid DSI + wet system adds 15–25% to the capital cost of a wet-only system but reduces the wet scrubber size by 30–40% (because it handles less acid gas), lowers NaOH consumption by 50–70%, and reduces wastewater volume proportionally. For a 20,000 CFM system treating 300 ppm HCl inlet, the hybrid configuration costs approximately $82,000 in capital (vs $68,000 for wet-only) but saves $4,000–6,000/year in operating costs — paying back the incremental capital in 2–3 years. The sciencedirect.com research confirms: “acid gases can be removed from exhaust in hybrid system by dry sorbent injection” with the sorbent “injected upstream of the electrostatic agglomerator” achieving “optimal removal” when properly sequenced.

Compliance: Emission Limits by Regulatory Standard

The dry scrubber vs wet scrubber decision must account for which regulatory standard applies to your facility — because the emission limit determines the minimum removal efficiency, which determines which technology can achieve compliance. A dry system that meets one standard may fail another by a factor of 2–3×.

The trend is clear: global emission limits are tightening, not relaxing. India’s CPCB has tightened enforcement since 2015 with State Pollution Control Boards conducting unannounced inspections. China’s ultra-low emission standard (35 mg/Nm³ for SO₂) has driven wet limestone FGD installation on 95%+ of coal capacity. The EU’s BAT-AEL approach — where the limit is set at the performance level of the best-performing installation — means that as wet scrubber technology improves, the emission limits tighten to match. Designing a dry system to today’s limit and hoping regulations stay the same is a 15-year bet that history suggests will lose.

The India Central Pollution Control Board (CPCB) and the EPA wet scrubber monitoring requirements both require continuous parameter tracking — pH, differential pressure, and stack emissions. Wet scrubbers provide more stable, controllable chemistry for this monitoring requirement, making compliance documentation simpler and more reliable than dry systems where sorbent utilization varies with gas temperature, humidity, and particle size distribution.

Frequently Asked Questions

How do the costs of wet and dry scrubbers compare over 10 years?

For a 20,000 CFM system treating HCl exhaust, a wet caustic scrubber costs $68,000 initially and $287,800 total over 10 years. A dry sorbent injection system costs $45,000 initially but $776,000 total over 10 years — driven by $450,000 in hazardous solid waste disposal and $189,000 in lime sorbent cost. The crossover point where cumulative wet costs become lower than dry costs occurs at month 18. After that, the wet system’s operating cost advantage compounds every year for the remaining 13+ years of service life.

When is a caustic scrubber necessary versus plain water scrubbing?

A caustic scrubber is mandatory when removing acid gases — HCl, HF, SO₂, and H₂S require chemical neutralization with sodium hydroxide (NaOH) to achieve 95–99%+ removal. Plain water scrubbing captures only water-soluble gases through physical dissolution, achieving 30–60% removal for HCl and even less for SO₂. For any emission limit below 100 mg/Nm³, caustic scrubbing is required — water alone cannot meet the limit.

Why does a wet scrubber achieve higher efficiency than a dry scrubber?

In a wet caustic scrubber, the packed bed continuously renews the gas-liquid contact surface — the liquid film on the packing is refreshed millions of times per hour. The chemical reaction between NaOH and acid gas is instantaneous at the interface (under 0.1 seconds). A dry scrubber relies on solid sorbent particles whose active surface area diminishes as reaction products coat the particle exterior. Once the outer layer reacts, the unreacted core is sealed off — the particle’s effectiveness drops with each second of contact time.

Can a dry scrubber meet the same emission limits as a wet scrubber?

For emission limits above 50 mg/Nm³, a dry scrubber using sodium bicarbonate (NaHCO₃) can achieve 85–95% removal and meet the limit. For limits below 20 mg/Nm³ — increasingly common under India CPCB (20 mg/Nm³ HCl), China ultra-low emission (35 mg/Nm³), and EU BAT-AEL (1–10 mg/Nm³) — a dry scrubber alone cannot achieve reliable compliance and requires a downstream polishing stage. A wet caustic scrubber consistently achieves 99%+ removal in a single stage.

What are the ongoing maintenance differences between dry and wet scrubbers?

Dry scrubbers require regular sorbent handling (delivery, storage, pneumatic injection), baghouse filter replacement, and disposal of spent solid media. Wet scrubbers require periodic blowdown management, pH probe calibration every 2 weeks, and packing inspection. PP wet scrubbers reduce maintenance labor by 40% compared to metallic wet scrubbers due to elimination of weld repairs, coating recoating, and ultrasonic thickness testing. For the detailed maintenance schedule, see our acid scrubber maintenance guide.

Should I consider a hybrid DSI + wet scrubber system?

A hybrid system is specified when: emission limits are below 20 mg/Nm³ but water is limited, inlet concentrations exceed 500 ppm HCl and a single-stage wet scrubber would be oversized, or a facility is transitioning from dry-only to wet systems incrementally. The DSI stage captures 70–85% of acid gas at low cost; the wet polishing stage achieves 99%+ overall. The hybrid adds 15–25% to wet-only capital but reduces wet scrubber size by 30–40% and NaOH consumption by 50–70%.

Conclusion

The dry scrubber vs wet scrubber decision comes down to total cost of compliance over the system’s service life — not the purchase price on day one. A dry sorbent injection system is cheaper to install, simpler to operate, and uses no water. But it generates recurring solid waste disposal costs of $100–300/ton, consumes 2–3× the stoichiometric sorbent requirement, and cannot reliably meet emission limits below 20 mg/Nm³ without a downstream polishing stage.

A wet caustic scrubber built from PP costs 30–40% more upfront but delivers 95–99%+ removal in a single stage, uses reagent efficiently at stoichiometric ratios, generates only neutral salt blowdown (not hazardous solid waste), and operates for 15–20 years with 40% lower maintenance than metallic alternatives. The documented payback on the incremental capital is 14–18 months, and the savings continue for the remaining 13+ years of service life.

The three scenarios where dry scrubbing still wins: water is genuinely scarce, emission limits are above 50 mg/Nm³ and are not expected to tighten, and disposal infrastructure exists at $50–100/ton. For every other scenario — which includes the majority of industrial acid gas applications — the wet caustic scrubber delivers lower 10-year TCO, higher compliance margin, and longer service life.

For a custom dry scrubber vs wet scrubber comparison with 10-year TCO projections specific to your exhaust parameters, emission limits, and site conditions, contact our engineering team. We provide technology-neutral analysis with factory-direct pricing and written performance guarantees.

Request Your Custom TCO Comparison →

Written by Corbin, a senior process engineer whose career has spanned over a decade evaluating and specifying scrubber systems for acid gas control across electroplating, chemical processing, power generation, and waste-to-energy facilities in 30+ countries. Every cost figure, efficiency data point, and technology recommendation in this article is drawn from documented project close-out data and publicly reported regulatory standards.
