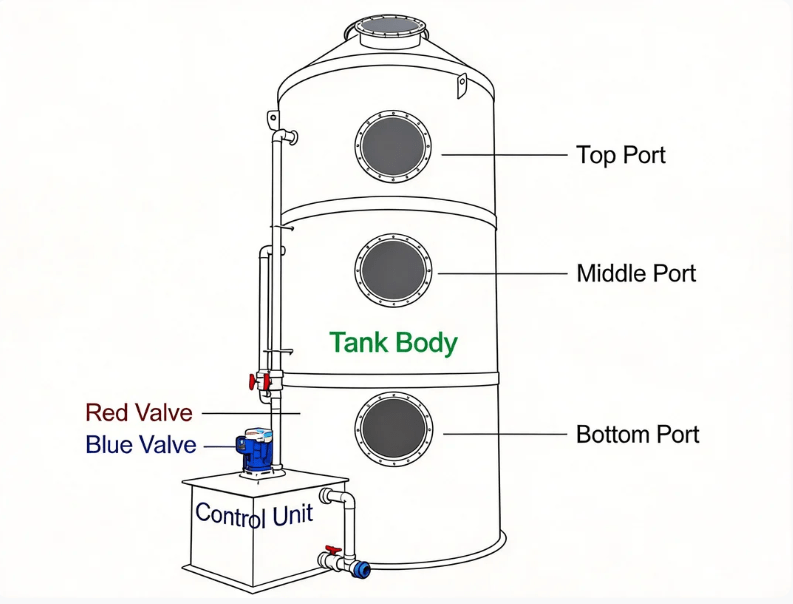

Caustic Scrubber: Install, Operate & Maintain Guide

A caustic scrubber neutralizes acid gases — HCl, HF, SO₂, Cl₂ — by contacting the contaminated gas stream with a sodium hydroxide (NaOH) solution in a packed tower. The purchase order is signed. The equipment arrives on site. But the difference between a system that delivers 15 years of compliant operation and one that underperforms from day one lies in the chemistry, the control strategy, and the commissioning discipline that follow delivery.

This guide covers the chemical reaction fundamentals, NaOH concentration selection, pH control strategy, pre-installation engineering checks, commissioning protocol, and performance testing procedure. The focus is on the operating chemistry and control systems — not general scrubber sizing (see our PP scrubber sizing guide) or scrubber troubleshooting (see our wet scrubber troubleshooting guide).

For specifications and pricing, browse our product catalog.

Key Takeaways

• NaOH neutralizes acid gases through fast liquid-phase reactions — the rate-limiting step is gas-liquid mass transfer, not chemical kinetics. For HCl + NaOH, the reaction completes in under 0.1 seconds at the gas-liquid interface. This means removal efficiency depends on packing surface area and liquid distribution, not on contact time. A properly designed packed bed with 25 mm PP Pall rings achieves 97–99% HCl removal at 3 m packing height with pH maintained above 7.
• NaOH concentration must match the acid gas species — pH 7–9 for HCl and SO₂, pH 10–12 for HF and Cl₂. HF is a weak acid that requires excess hydroxide ions (higher pH) to drive the neutralization reaction to completion. Using HCl-target pH for HF service leaves unreacted HF in solution, creating a corrosion hazard inside the scrubber shell and sump.
• Automated pH control with a PID controller saves 15–20% in chemical costs compared to manual dosing. A properly tuned PID controller maintains pH within ±0.3 units of the setpoint with 30-second response time. For a 20,000 CFM system treating 50 ppm HCl, this precision saves approximately 3,200 kg NaOH per year ($1,760 at $0.55/kg) compared to manual once-per-shift chemical addition.
• Conductivity monitoring prevents the silent efficiency killer — TDS buildup in the scrubbing solution. As NaOH neutralizes acid gases, dissolved salts (NaCl, Na₂SO₄, NaF) accumulate. When conductivity exceeds 30–50 mS/cm, the saturated solution reduces gas-liquid mass transfer by 10–25%. Automated blowdown triggered by conductivity setpoint prevents this degradation without wasting water.
• Stack testing with EPA reference methods is the only way to verify removal efficiency — instrumentation readings are not a substitute. Three one-hour test runs using EPA Method 26 (acid gases) or Method 29 (metals) with simultaneous inlet and outlet sampling confirm whether the scrubber meets its design specification. If the test shows lower efficiency than expected, the three most common causes are uneven liquid distribution, insufficient packing depth, or incorrect pH setpoint.

How Caustic Scrubbing Works: Chemistry and Reaction Kinetics

Caustic scrubbing uses sodium hydroxide (NaOH) dissolved in water to neutralize acid gases through liquid-phase chemical reactions. The contaminated gas enters the packed tower from below and flows countercurrent to the NaOH solution sprayed from above. As the gas passes through the wetted packing, acid molecules transfer from the gas phase into the liquid film on the packing surface. Once dissolved, the acid reacts instantly with hydroxide ions (OH⁻) — the reaction rate for HCl + NaOH is effectively instantaneous at the gas-liquid interface, completing in less than 0.1 seconds.

This speed matters for scrubber design: because the reaction is not the rate-limiting step, removal efficiency depends entirely on how much gas-liquid contact surface area the packing provides — not on how long the gas stays in the tower. This is why packing selection, liquid distribution, and L/G ratio control efficiency in a caustic scrubber, while chemical dosing only needs to maintain the correct pH to keep the reaction favorable. For a detailed breakdown of packing types and their surface area specifications, see our scrubber packing media guide. The stoichiometric ratio is 1:1 for monoprotic acids (one mole NaOH per mole HCl) and 2:1 for diprotic gases like SO₂ (two moles NaOH per mole SO₂).

Reaction Equations by Pollutant

In a caustic scrubber, the reaction products remain dissolved in the scrubbing solution until blowdown removes them. As dissolved salt concentration rises, the solution’s ability to absorb additional acid gas decreases — a phenomenon called TDS (Total Dissolved Solids) inhibition. Managing this buildup through conductivity-controlled blowdown is the key to sustaining removal efficiency over time.

NaOH Concentration: Matching Reagent Strength to Gas Stream

In a caustic scrubber, the concentration of the NaOH solution fed into the sump determines the reaction driving force, the pH stability between dosing cycles, and the chemical cost per ton of acid gas removed. Most caustic scrubbers operate with NaOH concentrations between 5% and 15% by weight — but the optimal concentration depends on the acid gas species, the inlet loading, and the blowdown rate.

Concentration Selection by Application

In a caustic scrubber, using NaOH concentration above 15% in the sump creates two problems: salt crystallization at the packing surface when dissolved product salts exceed their solubility limit, and accelerated corrosion of any metallic components in the sump or piping. Using concentration below 5% requires more frequent NaOH tank refills and can cause pH swings that drop below the setpoint during peak acid gas loading. For most HCl and SO₂ applications, 10% NaOH feed — prepared by diluting 50% commercial caustic 1:4 with water — is the optimal starting point.

PP caustic scrubber shells contribute to chemical efficiency by eliminating competing side reactions. In metallic scrubbers (FRP with gel coat, SS316, or rubber-lined steel), dissolved metal ions from slow shell corrosion consume NaOH through hydroxide precipitation reactions — effectively diverting chemical that should be neutralizing acid gases. PP contributes zero dissolved metal ions, so every kilogram of NaOH goes directly toward its intended purpose.

pH Control Strategy: Automated vs Manual Dosing

The pH controller is the brain of every caustic scrubber system. It measures the scrubbing solution’s hydrogen ion concentration in real time and adjusts the NaOH feed pump to maintain the target pH. Without precise pH control, chemical consumption runs 15–40% above stoichiometric requirements — or worse, pH drops below the neutralization threshold and acid gas passes through the packed bed untreated.

Why Automated PID Control Beats Manual Dosing

In a caustic scrubber with manual dosing — adding NaOH once per shift based on a pH paper reading — creates a sawtooth pH profile. At the start of the shift, pH is high (12–13) and NaOH is wasted through over-neutralization and CO₂ absorption from ambient air. By the end of the shift, pH drops to 5–6 and removal efficiency falls. For a 20,000 CFM system treating 50 ppm HCl, this cycle wastes approximately 3,200 kg of NaOH per year compared to a properly tuned PID controller — worth $1,760 at $0.55/kg NaOH. More importantly, the low-pH periods allow acid gas to pass through the scrubber, creating compliance risk during those hours.

In a caustic scrubber, a PID controller with a 30-second response time and ±0.3 pH setpoint accuracy eliminates both the waste and the compliance risk. The Sensorex pH application note for odor scrubbers provides detailed guidance on sensor selection for wet scrubbing environments. The controller modulates a chemical metering pump (diaphragm or peristaltic) that feeds NaOH from a day tank into the scrubber sump. The probe should be located in the recirculation line near the sump — not in the sump itself — because the flowing liquid gives a faster, more representative reading than the stagnant sump.

pH Sensor Installation Requirements

pH probes must be installed in a flow-through tee of at least 2 inches (50 mm) diameter so the entire lower two inches of the sensor is immersed in the solution. The glass bulb, reference junction, and stainless steel grounding band must all be submerged. A probe mounted in a pipe smaller than 2 inches gives erratic readings because the liquid does not fully wet the sensor surface. The recommended sensor for wet acid scrubbers is a pre-amplified pH probe (such as the Rosemount 3500P or equivalent) that generates a strong signal to the controller, reducing noise from the industrial environment.

Important: pH probes calibrated with standard buffer solutions (pH 4.0, 7.0, 10.0) can read 0.3–0.5 units off when immersed in the actual scrubbing solution containing dissolved salts. Always calibrate with two-point calibration using fresh buffer solutions, then verify the reading against a grab-sample tested with a calibrated portable meter. Replace the probe every 12–18 months — the glass electrode degrades continuously in high-pH scrubbing solutions.

Conductivity as a Complementary Measurement

Conductivity provides a second control dimension that pH alone cannot. As the scrubber neutralizes acid gas, dissolved product salts (NaCl, Na₂SO₄, NaF) accumulate in the solution. Conductivity rises proportionally to TDS — and when conductivity exceeds 30–50 mS/cm, the saturated solution loses 10–25% of its absorption capacity because the dissolved ions compete with NaOH at the gas-liquid interface. A conductivity controller triggers automated blowdown when TDS reaches the setpoint, replacing a portion of the concentrated solution with fresh water. This keeps the scrubbing solution effective without operator intervention.

ORP (Oxidation-Reduction Potential) is a third measurement useful for Cl₂ scrubbing, where the reaction produces sodium hypochlorite (NaOCl). ORP indicates the completeness of the oxidation reaction — a rising ORP signal means free chlorine is present in the solution and more NaOH is needed. ORP is not a substitute for pH but supplements it in oxidation-reduction scrubbing reactions.

Pre-Installation Engineering: 6 Checks Before Startup

Every caustic scrubber is a chemical processing unit, not a simple exhaust fan. Installation errors compound over time — a 1° distributor tilt that seems insignificant at commissioning creates a 30% removal efficiency gap within six months. These six pre-installation checks, drawn from 500+ field commissioning projects, prevent the most common startup failures.

Check 1: Ductwork Slope and Drainage

In a caustic scrubber installation, inlet ductwork must slope toward the scrubber at a minimum 2% grade with no flat or reverse-sloped sections. Flat ducts collect corrosive condensate — pH can drop below 2.0 in HCl service — that eats through carbon steel within weeks. Every duct joint should be leak-tested at 1.5× maximum operating pressure before insulation is applied.

Check 2: Fan Placement and Airflow Verification

In a caustic scrubber system, the exhaust fan should sit on the clean-gas side (induced draft configuration) so the impeller operates in non-corrosive gas. Before connecting to the scrubber, verify rotation direction, measure full-load amperage, and confirm actual airflow is within ±5% of the design point. A fan delivering 10% less airflow than designed reduces removal efficiency more than most engineers expect — because gas velocity through the packed bed directly controls mass transfer coefficient.

Check 3: Liquid Distributor Leveling

This is the most overlooked commissioning step. The liquid distributor inside the packed bed must be leveled to ±1 mm across its span. An out-of-level distributor sends more scrubbing liquid to one side of the packing, creating dry channels on the opposite side where untreated gas passes through. PP distributors eliminate warping and sagging issues that plague stainless steel distributors at scrubber operating temperatures.

Check 4: Recirculation Tank Sealing

The recirculation tank must be covered and vented back to the scrubber inlet. An open tank allows captured volatile compounds to re-entrain into the surrounding air — creating a secondary emission source. The vent line should be sized for maximum blowdown rate plus a 2.0 safety factor.

Check 5: Instrumentation Calibration with Process Liquids

pH probes, conductivity sensors, differential pressure transmitters, and level switches must be calibrated on-site using actual process liquids — not factory buffer solutions alone. A pH probe calibrated with standard buffers can read 0.3–0.5 units off when immersed in the real scrubbing solution. Verify each instrument against a grab-sample measurement before commissioning.

Check 6: Emergency Shutdown and Bypass Testing

Every properly designed caustic scrubber must include a tested bypass damper or emergency shutdown procedure. If the recirculation pump fails, the system must either divert exhaust to a backup scrubber or trigger a process shutdown. Test this sequence under simulated failure conditions before commissioning. Document the alarm activation sequence, response time, and operator actions — environmental auditors routinely request this documentation first.

Commissioning Sequence: First Week Protocol

Commissioning a caustic scrubber installation is not a one-day event — it is a five-to-seven-day sequence where each step depends on the results of the previous one. Rushing commissioning creates a system that appears to work but drifts out of compliance within weeks as undetected calibration errors, distribution problems, and control loop instabilities accumulate.

Day 1: Mechanical Verification

To commission the caustic scrubber, fill the sump with clean water (no NaOH yet). Run the recirculation pump at design flow and verify: pump amperage matches the nameplate, spray nozzles produce uniform coverage visible through the access port, sump level control maintains the design range, and no leaks exist at flanges, nozzle connections, or the sump-to-shell joint. Check the mist eliminator for proper seating — a misaligned mist eliminator allows liquid carryover into the fan and exhaust stack. For details on scrubber component materials and chemical resistance, see our chemical fume scrubber design guide.

Day 2: Instrument Calibration

Calibrate pH, conductivity, differential pressure, and level instruments with clean water. Then introduce NaOH to bring the sump to the design concentration (typically 10% by weight). Re-calibrate the pH probe at the operating concentration using two-point calibration with fresh buffers. Verify the conductivity reading against a grab-sample tested with a portable calibrated meter. Confirm the differential pressure reading across the packed bed matches the design value ±15% at the design flow rate.

Day 3: Control Loop Tuning

Start the pH PID controller in manual mode. Step-change the NaOH feed pump and measure the response time — how quickly does the pH probe detect the change? Set the proportional band, integral time, and derivative time to achieve a stable pH within ±0.3 units of the setpoint with less than 5% overshoot. A typical starting point for a 20,000 CFM scrubber is P = 10%, I = 60 seconds, D = 15 seconds — but the actual values depend on the sump volume, recirculation rate, and NaOH feed pump capacity.

Day 4–5: Process Gas Introduction

In the caustic scrubber commissioning, gradually introduce process gas at 25%, 50%, 75%, and 100% of design flow over two days. At each step, record: inlet and outlet concentrations (using portable gas analyzers), pH stability under acid gas loading, differential pressure across the packed bed, and chemical consumption rate. If pH drops below the setpoint at 75% flow and the PID controller cannot recover, suspect insufficient NaOH feed capacity — increase the day tank pump size or NaOH concentration.

Day 6–7: Performance Baseline

Run the caustic scrubber at full design conditions for 48 continuous hours while recording all parameters at 5-minute intervals. Plot inlet and outlet concentration trends, pH stability, conductivity trend (to confirm blowdown is controlling TDS), and chemical consumption rate. This baseline data becomes the reference for all future performance comparisons — every maintenance decision, packing changeout, and chemical optimization should be measured against this baseline.

Operator Training: 5 Core Competencies

The most precisely engineered caustic scrubber system system will fail if operators do not understand what the instruments are telling them and how to respond. A standard operator training program should develop five competencies — each tied to a specific failure mode that documented training prevents.

Competency 1: Instrument Interpretation

In a caustic scrubber, operators must understand that rising differential pressure across the packed bed indicates scaling or fouling — and that the correct response is to increase blowdown and inspect the packing, not to ignore the trend. Falling differential pressure with no flow change suggests packing settlement or collapse. A pH reading above 12 for extended periods means NaOH is being wasted. Each instrument trend maps to a specific cause and response — training must build these connections through hands-on exercises, not just reading manuals.

Competency 2: Chemical Handling Safety

Sodium hydroxide at 25–50% concentration causes severe burns on contact with skin and eyes. Operators handling NaOH tank refills must wear chemical splash goggles, face shield, rubber apron, and chemical-resistant gloves. Spill response procedures — neutralize with citric acid or dilute HCl, contain with absorbent, dispose as hazardous waste — must be trained and drilled quarterly. The OSHA permissible exposure limit for NaOH mist is 2 mg/m³ — a level that can be exceeded near an open sump during pH testing if ventilation is inadequate.

Competency 3: Blowdown Management

Operators must understand the relationship between makeup water TDS, evaporation rate, and required blowdown volume. In a system running 8 hours per day, evaporation from the sump can concentrate dissolved salts by 2–5% per day if no blowdown occurs. Automated conductivity-triggered blowdown eliminates guesswork — but operators still need to verify the conductivity setpoint is correct for their water chemistry and adjust seasonally as makeup water temperature and mineral content change.

Competency 4: Alarm Response

Each alarm — high pH, low pH, low recirculation flow, high differential pressure, low sump level, high conductivity — must have a documented one-page response procedure that operators can execute without hesitation. The procedure should specify: immediate action (what to do in the first 60 seconds), investigation (what to check if the alarm persists), escalation (when to call the shift supervisor or engineering), and documentation (what to record in the log).

Competency 5: Record-Keeping

pH trends, chemical consumption logs, maintenance activities, blowdown volumes, and stack test results form the compliance trail that environmental auditors review during inspections. Records should be maintained for a minimum of 5 years in most jurisdictions. Digital logging with automatic trend capture is preferred over paper logs because it provides continuous data resolution and eliminates transcription errors.

Performance Testing: Stack Test Protocol

After commissioning a caustic scrubber, a formal performance test verifies that the caustic scrubber achieves its design removal efficiency under normal operating conditions. For a caustic scrubber, this test is not optional — it is required by most environmental permits and is the data point that regulators, auditors, and insurance companies use to confirm compliance. Instrument readings from the pH probe and differential pressure transmitter do not substitute for a stack test — they indicate operational health, not removal efficiency.

Test Method Selection

The test method depends on the pollutant being controlled. For acid gases (HCl, HF, SO₂), use EPA Method 26A — which measures both condensible and non-condensible fractions simultaneously. For particulate plus metals, use EPA Method 29. For chlorine gas, use EPA Method 26 or a site-specific method approved by the regulatory agency. Each method specifies the sampling train, flow rate, duration, and analytical procedure — the testing firm must follow the method exactly or the results may be challenged.

Test Protocol

Three consecutive one-hour test runs at the design gas flow rate form the standard protocol. During each run, simultaneous inlet and outlet sampling determines the removal efficiency across the scrubber. Document scrubbing liquid pH, blowdown rate, NaOH feed rate, recirculation flow, differential pressure, gas temperature, and fan speed during each run. Any parameter that deviates more than 10% from the design value during a test run invalidates that run — repeat it after correcting the deviation.

For a caustic scrubber designed for 99% HCl removal at 50 ppm inlet, the outlet should measure below 0.5 ppm. The EPA wet scrubber monitoring guidelines require continuous pH monitoring with documented calibration records as part of the compliance documentation. If the test shows lower efficiency, the three most common causes in order of frequency are: (1) uneven liquid distribution — check distributor level and nozzle condition; (2) insufficient packing depth — verify against the design specification and check for settlement; (3) incorrect pH — calibrate the probe and verify the controller setpoint. Each cause can be diagnosed without a shutdown if the tower has access ports for visual inspection.

Retest Frequency

Most permits require an initial performance test within 60–90 days of startup and annual retesting thereafter. Retesting after any major change — packing replacement, chemical change, flow rate increase, or control system modification — is recommended even if not required by the permit. The baseline test data from commissioning provides the reference point for all future comparisons.

Frequently Asked Questions

What NaOH concentration should I use in my caustic scrubber?

For HCl and SO₂ scrubbing, 10% NaOH by weight (diluted from 50% commercial caustic at a 1:4 ratio with water) is the optimal starting point. For HF scrubbing, use 5–10% at a higher pH setpoint (10–12) rather than a more concentrated solution. Concentrations above 15% risk salt crystallization on the packing surface and accelerated corrosion of metallic components. Below 5% requires frequent tank refills and causes pH swings during peak acid gas loading.

What pH setpoint should I maintain?

pH depends on the acid gas species: pH 7.0–9.0 for HCl and SO₂, pH 10.0–12.0 for HF (because HF is a weak acid requiring excess hydroxide ions for complete neutralization), and pH 9.0–11.0 for Cl₂. A PID controller with ±0.3 pH accuracy and 30-second response time keeps the setpoint stable. If the controller cannot maintain the setpoint during peak gas loading, the NaOH feed pump capacity is undersized for the acid gas inlet concentration.

How does conductivity relate to scrubber performance?

Conductivity measures Total Dissolved Solids (TDS) — the accumulated reaction products (NaCl, Na₂SO₄, NaF) in the scrubbing solution. When conductivity exceeds 30–50 mS/cm, the saturated solution absorbs 10–25% less acid gas because dissolved ions compete with NaOH at the gas-liquid interface. Automated blowdown triggered by a conductivity controller (setpoint typically 30–40 mS/cm) replaces concentrated solution with fresh water to maintain absorption capacity.

Can I use a pH probe calibrated with buffer solutions in the scrubber?

Not without a verification step. pH probes calibrated with standard buffer solutions (pH 4.0, 7.0, 10.0) can read 0.3–0.5 units off when immersed in scrubbing solution containing dissolved salts. Always perform two-point calibration with fresh buffers, then verify the reading against a grab-sample tested with a calibrated portable meter. Replace the probe every 12–18 months — the glass electrode degrades continuously in high-pH solutions.

What does a scrubber stack test involve?

Three consecutive one-hour test runs at the design gas flow rate using EPA reference methods (Method 26A for acid gases, Method 29 for metals). Simultaneous inlet and outlet sampling determines removal efficiency. Document pH, blowdown rate, chemical feed rate, recirculation flow, differential pressure, and gas temperature during each run. For a scrubber designed for 99% HCl removal at 50 ppm inlet, the outlet should measure below 0.5 ppm.

What is the expected service life of a PP caustic scrubber?

A PP scrubber properly installed and maintained lasts 15–20 years — twice the service life of FRP and 3× longer than stainless steel in acid-gas service. PP is chemically inert to NaOH, HCl, HF, and SO₂ across pH 0–14 at temperatures up to 80°C. Maintenance consists of visual inspections every 6 months and occasional nozzle cleaning. No welding repairs, no recoating, no mid-life shell replacements.

Conclusion

A caustic scrubber is only as effective as its chemistry, its control system, and its commissioning discipline. The NaOH neutralization reaction is fast and reliable — the variables that determine whether the scrubber meets its permit limit are the pH setpoint stability, the conductivity-controlled blowdown rate, the packing surface area for gas-liquid contact, and the liquid distributor uniformity across the packed bed.

The three highest-return investments for a caustic scrubber installation are: (1) automated PID pH control — saving 15–20% in chemical costs and eliminating the compliance risk of manual dosing; (2) conductivity-triggered blowdown — preventing the 10–25% efficiency loss from TDS buildup without wasting water; and (3) a documented seven-day commissioning sequence with baseline performance data — providing the reference point for every future maintenance and optimization decision.

For a caustic scrubber installation plan, commissioning checklist, and operator training outline specific to your facility’s exhaust composition and regulatory requirements, contact our engineering team. We provide technology-neutral engineering support with factory-direct pricing and 500+ successful installations worldwide.

Request Your Installation Plan →

Written by Corbin, a senior process engineer whose career has spanned over a decade designing and commissioning caustic scrubbing systems for electroplating, chemical processing, and semiconductor facilities across 30+ countries. Every pH setpoint, control loop parameter, and commissioning protocol in this article is drawn from field-verified commissioning outcomes.
