Acid Scrubber Maintenance: Stop Corrosion & Scaling

Acid scrubber maintenance is not about working harder — it is about preventing the three failure modes that cause 90% of unplanned shutdowns: sensor drift that masks declining removal efficiency, packing scaling that silently raises pressure drop, and tank corrosion that leaks acid solution onto the factory floor. The most effective maintenance program is one that eliminates these failure mechanisms at the design stage — through material selection, automated chemical control, and documented inspection protocols that catch problems months before they cause downtime.

This guide covers the maintenance tasks that keep an acid scrubber operating at design efficiency for 15–20 years: sensor calibration schedules, packing condition monitoring, tank inspection methods, emergency repair protocols, annual overhaul planning, and chemical dosing system upkeep. For general acid scrubber design and selection, see our acid fume scrubber types guide. For corrosion troubleshooting, see our acid scrubber tank failure prevention guide.

For specifications and pricing, browse our product catalog.

Key Takeaways

• pH probe calibration must be performed every 2 weeks using fresh two-point buffer solutions — not monthly, not quarterly. A pH probe in acid scrubbing service degrades 0.1–0.3 units per month due to reference junction poisoning by dissolved salts. A probe reading 0.5 units high wastes $200–400/year in excess NaOH; a probe reading 0.5 units low allows acid gas breakthrough that creates compliance risk. PP probe housings protect the wiring but cannot slow the glass electrode degradation — calibration frequency is the only control.
• Packing replacement should be planned at year 7–8 for random packing and year 5–6 for structured packing in continuous acid service. The decision to replace is based on differential pressure trend data, not visual inspection alone. A 30% increase in ΔP from the clean-bed baseline — documented through monthly trend plotting — indicates that the packing has lost 15–25% of its active surface area to scaling, deformation, or settlement. Cleaning restores temporary performance, but cumulative damage reduces the packing’s effectiveness with each cycle.
• Tank waterline inspection is the single most important maintenance item for SS304 acid scrubbers — and the one that PP systems eliminate entirely. In metallic tanks, the fluctuating waterline concentrates chloride salts at a rate 3–5× higher than the submerged zone. Ultrasonic thickness testing at the waterline every 6 months detects wall thinning before pinhole leaks develop. PP tanks have no waterline corrosion mechanism — the inspection reduces to a visual check for sediment and mechanical damage.
• An emergency repair protocol — pre-drafted, posted at the scrubber, and drilled quarterly — reduces unplanned downtime from 3–5 days to 4–8 hours. The protocol must cover three scenarios: pump failure (switch to backup or bypass), tank leak (contain, drain, patch), and packing collapse (reduce flow, plan shutdown). Each scenario has a 60-second immediate action, a 30-minute investigation, and a 4-hour resolution path.
• Auditors check three things first: pH trend charts showing consistent setpoint control, differential pressure trends showing no upward drift, and stack test results showing permit compliance. If these three records are complete and consistent, the audit passes quickly. If any one is missing or shows drift, the auditor expands the review to chemical logs, maintenance records, and instrument calibration history — which takes 3–5× longer and often results in corrective action requests.

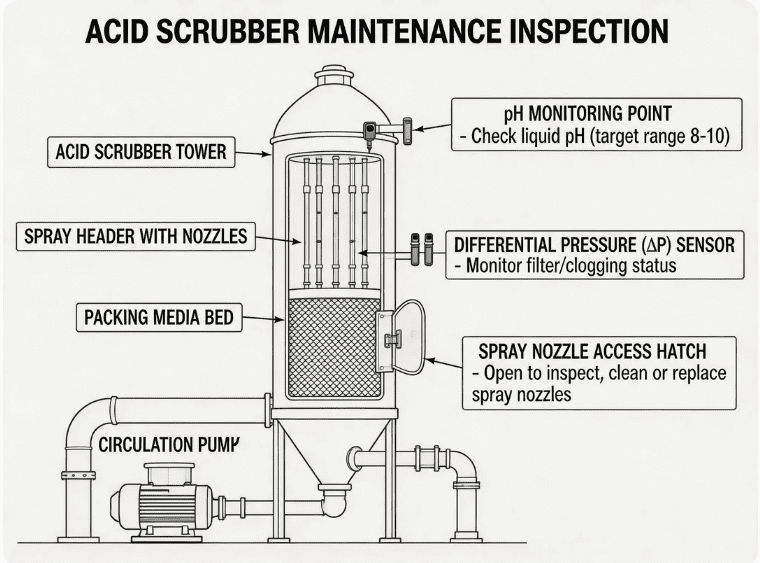

Tiered Inspection Schedule: What to Check, When, and Why

An acid scrubber maintenance inspection program must balance two priorities: catching problems before they cause downtime, and not spending labor hours on inspections that yield no actionable information. The tiered approach below — drawn from commissioning data across 500+ installations — assigns each maintenance task to a frequency tier based on the failure risk and the time-to-detect for each component.

PP systems eliminate Tier 5 entirely. There is no waterline corrosion mechanism, no coating to assess, and no welds subject to crevice corrosion — the homogeneous PP weld is chemically inert at every point in the vessel. This eliminates the most labor-intensive and specialist-dependent inspection in the entire acid scrubber maintenance program. For PP vs SS304 vs FRP material comparison across the full scrubber system, see our PP vs FRP wet scrubber comparison.

The Tier 1 walk-around should be documented in a shift log — even if the entry is “all parameters within range.” A continuous log showing stable pH, stable ΔP, and consistent pump readings is the single strongest piece of evidence during an environmental audit. The hydropurewater.com FGD maintenance guide confirms: “audit maintenance logs and KPIs monthly — this high-level audit identifies systemic issues that daily inspections might miss, such as a slow drift in reagent quality or a gradual increase in power consumption.”

Sensor Calibration: pH Probe, Conductivity, and Differential Pressure

Sensors are the eyes of the acid scrubber maintenance program. If the pH probe reads wrong, the dosing system wastes caustic or allows acid breakthrough. If the conductivity sensor drifts, blowdown occurs too frequently or too infrequently, leading to either water waste or salt crystallization on packing surfaces. If the differential pressure transmitter reads incorrectly, packing fouling goes undetected until removal efficiency collapses. Each sensor has a different degradation rate, calibration method, and replacement interval.

pH Probe: Two-Point Calibration Every 2 Weeks

pH probes in acid scrubbing service degrade faster than in most other industrial applications. The glass electrode dissolves slowly in the acidic environment, and the reference junction — the porous ceramic plug connecting the internal reference electrode to the process liquid — gets clogged by dissolved salts, crystallized reagent, and precipitated metal hydroxides. A probe installed today reads within ±0.1 units; by month 3 without calibration, it can drift ±0.5 units or more.

Two-point calibration with fresh buffer solutions (pH 4.0 and pH 7.0 for HCl/H₂SO₄ service; pH 7.0 and pH 10.0 for HF service) resets the probe slope and offset. After calibration, verify the reading by testing a grab sample from the recirculation line with a calibrated portable meter. If the inline probe and portable meter disagree by more than 0.2 units after calibration, replace the probe — the glass electrode has reached end of life. Average probe life in acid scrubbing service is 8–14 months. The Endress+Hauser pH calibration guide emphasizes: “users must develop their own maintenance and calibration schedule based on the specific process conditions — all pH readings should only be accepted when the sensor has been recently calibrated against traceable standards.”

Conductivity Sensor: Monthly Verification

Conductivity sensors are more stable than pH probes because they have no glass electrode to degrade. Toroidal (non-contact) conductivity sensors are preferred for acid scrubbing because they have no electrodes in contact with the process liquid, eliminating the fouling and corrosion that plague contacting-electrode designs. Verify the conductivity reading monthly by testing a grab sample with a portable calibrated meter. If the inline sensor deviates more than 10% from the portable reading, clean the sensor bore with a mild acid solution and re-verify.

Conductivity is the primary trigger for automated blowdown control. The setpoint depends on the dissolved salt type: 30–40 mS/cm for chloride-dominated solutions (HCl scrubbing), 25–35 mS/cm for sulfate-dominated solutions (H₂SO₄ scrubbing), and 20–30 mS/cm for fluoride-dominated solutions (HF scrubbing). Setting the conductivity blowdown setpoint too high allows salt crystallization on packing surfaces; setting it too low wastes water and increases wastewater treatment volume.

Differential Pressure Transmitter: Monthly Zero Check

The differential pressure (ΔP) transmitter across the packed bed measures pressure drop — the single most reliable indicator of packing condition. Monthly, verify the transmitter zero reading with both pressure ports open to atmosphere — the reading should be 0 ± 10 Pa. If the zero drifts more than 20 Pa, recalibrate the transmitter. Record the monthly ΔP reading in the trend log: a steady increase of more than 20% from the clean-bed baseline over 6 months indicates packing fouling or scaling requiring corrective action. According to the hydropure FGD maintenance guide, “pH stability within ±0.3 units from the setpoint” is a critical KPI — “any deviation should trigger an automatic system review.”

Packing Monitoring: ΔP Trending and Clean vs Replace Decision

The packed bed is where the acid scrubber chemistry actually occurs — and its condition directly determines removal efficiency. Unlike sensors that can be recalibrated, packing cannot be tuned. It can be cleaned, and if cleaning no longer restores performance, it must be replaced. The decision between cleaning and replacement is based on three data points: the differential pressure trend, visual condition during shutdown inspection, and the age of the packing relative to its expected service life.

When to Clean the Packing

Clean the packing when ΔP increases 15–25% above the clean-bed baseline AND the packing has been in service for less than 5 years. Cleaning involves draining the sump, filling the packed bed with a cleaning solution (typically 5% NaOH for sulfate scale, or 5% HCl for calcium carbonate scale), soaking for 4–8 hours, and flushing with clean water. For PP packing in acid service, cleaning restores 80–95% of the original surface area — because PP’s smooth hydrophobic surface resists the tenacious scale adhesion that occurs on corroded metal or rough ceramic surfaces. The wscnc.com fume scrubber service team confirms: “comprehensive cleaning, packing replacement, and mechanical checks” are the core restoration services for acid, caustic, and VOC scrubbers — with packing replacement being “the single most impactful service for restoring design static pressure and airflow.”

When to Replace the Packing

Replace the packing when: (1) ΔP increases more than 30% above baseline AND cleaning no longer restores it — indicating permanent deformation, settlement, or deep-scale penetration; (2) the packing has been in service for 7–8 years (random PP packing) or 5–6 years (structured packing) — even if ΔP appears stable, the surface has degraded 15–25% through cumulative chemical and thermal exposure; or (3) visible inspection reveals cracked pieces, deformed geometry (especially spherical packing that has flattened), or fragment debris in the sump. For packing type specifications and selection criteria, see our scrubber packing media guide.

Packing Replacement Procedure

Drain the sump and flush the packed bed with clean water. Remove the packing support grid bolts and lift the grid with a hoist or manual lift — the grid plus 3 m of wet PP packing weighs approximately 200–400 kg per m² of tower cross-section. Dump the old packing into waste containers (PP packing is non-hazardous and can be recycled). Inspect the support grid for cracking, sagging, or nozzle erosion — replace if any damage is found. Install the new packing to 8–12% above the design bed height to account for initial settlement. Re-level the liquid distributor and verify spray pattern before restarting the scrubber.

ΔP Trend Documentation

Plot monthly ΔP readings on a trend chart — this chart is the most valuable document in the entire acid scrubber maintenance file. A flat trend means the packing is stable; a rising trend signals fouling; a sharp jump indicates sudden blockage or collapse. The trend chart also predicts replacement timing: if ΔP is increasing at 3% per month, the packing will reach the 30% replacement threshold in 10 months — enough time to order new packing, schedule a shutdown, and avoid emergency procurement. The machengineering.com maintenance guide notes that “increased pressure drop (ΔP) from scale, deposits, clogged nozzles, or fouled packing” is the most common operational problem — and the one that trend monitoring catches earliest.

Tank Inspection: Waterline, Welds, and Sediment

The scrubber tank holds the recirculation liquid and accumulates everything the packed bed captures — dissolved reaction products, precipitated solids, and entrained particulate. Tank failure is the most expensive acid scrubber maintenance event because it takes the entire system offline for 3–7 days while repairs are made. The inspection method depends entirely on the tank material.

SS304 Tank: Ultrasonic Thickness Testing at Waterline

In SS304 tanks handling HCl or H₂SO₄, the waterline zone corrodes 3–5× faster than the submerged zone. Dissolved chloride salts concentrate at the fluctuating liquid level, creating a thin film of highly corrosive condensate that eats through the passive chromium oxide layer. Ultrasonic thickness (UT) testing at the waterline — scanning 100 mm above and below the operating liquid level — detects wall thinning before pinhole leaks develop. A UT reading below 3.0 mm on a 5 mm nominal wall indicates the tank needs a weld patch or replacement within 12 months. The oxmaint.com pickling line maintenance guide warns: “a single tank lining leak can release 10,000 liters of acid into the pit within hours — costing $500,000 in neutralization, environmental fines, and lost production.”

PP Tank: Annual Visual Through Manway

PP tanks have no waterline corrosion mechanism — the material is chemically inert at every point in the vessel, including the fluctuating liquid level zone. The annual inspection through the manway checks for: sediment accumulation at the sump bottom (remove if more than 50 mm deep, as sediment blocks the pump intake and creates localized abrasion), weld cracking at the nozzle-to-shell joints (rare in normal operation, can occur from mechanical stress or thermal cycling), and erosion at the pump intake (caused by abrasive particles in the recirculation flow). A PP tank in normal acid scrubbing service requires no repair in its first 10 years — many last 15–20 years with zero interventions.

FRP Tank: Acoustic Emission Testing

FRP tanks can develop delamination between the resin and glass fiber layers — a failure mode invisible from the outside until the tank leaks. Acoustic emission testing detects delamination by listening for characteristic cracking sounds when the tank is filled to operating level. This test requires specialized equipment and costs $500–1,000 per event. If delamination is detected, the tank must be relined or replaced — a 5–10 day repair costing $15,000–30,000 for a mid-size scrubber tank. For the full acid scrubber tank design discussion — including sizing, welding standards, and inspection access — see our acid fume scrubber dump tank guide.

Emergency Repair Protocol: Pump Failure, Tank Leak, Packing Collapse

Every acid scrubber maintenance program needs a pre-drafted emergency repair protocol — posted at the scrubber control panel, drilled quarterly, and updated whenever the system configuration changes. Three scenarios account for 90% of acid scrubber emergencies. Each requires a specific 60-second response that, if executed correctly, reduces unplanned downtime from 3–5 days to 4–8 hours.

Scenario 1: Recirculation Pump Failure

Immediate action (60 seconds): Switch to the backup pump. If no backup is available, close the process exhaust damper to divert gas away from the scrubber and trigger a process shutdown on the emission source. Do NOT allow process gas to flow through the scrubber without liquid recirculation — dry acid gas corrodes the mist eliminator, packing support grid, and tank internals within hours.

Investigation (30 minutes): Check pump motor amperage, starter, and mechanical seal. Verify sump level — a low sump level trips the pump on low-level protection. Check for blockage at the pump intake from sediment, packing fragments, or crystallized salt. The torch-air.com wet scrubber maintenance guide identifies “pump seal wear, cavitation, clogging, and improper supply” as the most common pump failure modes — and recommends “checking suction line and filters, replacing seals/bearings, and inspecting shaft/motor” as the corrective sequence.

Resolution (2–4 hours): Repair or replace the pump. If restoration will take more than 4 hours, arrange for a temporary portable pump connection to the scrubber sump.

Scenario 2: Tank Leak

Immediate action (60 seconds): Contain the leak using the drip tray or secondary containment beneath every acid scrubber tank. Shut off the makeup water feed. Begin draining the tank to below the leak level using the blowdown valve.

Investigation (30 minutes): Locate the leak source — waterline pinhole (SS304), weld crack (PP or SS304), nozzle joint failure, or mechanical damage. Determine if a temporary patch can stop the leak until a planned repair is scheduled. PP epoxy works for PP tanks; rubber plugs provide temporary containment for SS304 pinhole leaks.

Resolution: PP tank weld repairs require a qualified thermoplastic welder and can be completed in 1–2 days. SS304 tank weld repairs in acid service require surface preparation, passivation, and inspection — typically 3–5 days. The torch-air maintenance guide notes that “if a serious hazardous leak or through-thickness corrosion is detected — stop the process and call an engineer. The cost of reactive maintenance is usually higher than preventive service due to urgent repairs.”

Scenario 3: Packing Collapse

Immediate action (60 seconds): Reduce fan speed to 50% to prevent collapsed packing fragments from being drawn into the fan impeller. If differential pressure spikes above 2× normal, shut down the fan entirely.

Investigation (30 minutes): Open the access hatch above the packed bed and visually inspect. Packing collapse is usually caused by support grid failure (cracked or sagged under weight), thermal deformation (excessive gas temperature softening PP packing above 80°C), or chemical attack (wrong packing material for the gas chemistry).

Resolution (1–3 days): Drain the sump, remove the collapsed packing, inspect and replace the support grid if damaged, and repack the bed. This is a planned shutdown event if the emergency protocol contains the situation quickly. The wscnc.com service team confirms that “packing media replacement to restore design static pressure and airflow” is the highest-impact restoration service for fume scrubbers.

Chemical Dosing System Maintenance: Pumps, Probes, and Day Tanks

The chemical dosing system is the most maintenance-intensive subsystem in an acid scrubber — because it handles concentrated NaOH (25–50% by weight) that attacks metals, degrades elastomers, and crystallizes at joints. Three components require scheduled attention: the metering pump, the chemical day tank, and the dosing line check valve. Neglecting any one of these components causes pH instability that cascades into removal efficiency loss, chemical waste, and compliance risk.

Metering Pump: Monthly Diaphragm Inspection

Diaphragm metering pumps (solenoid-driven or motor-driven) are the standard for NaOH dosing in acid scrubbers. The diaphragm flexes millions of cycles per year and eventually develops fatigue cracks that cause the pump to lose prime or deliver inconsistent flow. Inspect the diaphragm monthly by checking for NaOH leakage at the pump head, verifying that the output flow matches the setpoint (using a graduated cylinder and stopwatch), and listening for irregular clicking that indicates diaphragm deformation. Replace the diaphragm every 6–12 months depending on duty cycle. A diaphragm that fails in service dumps uncontrolled NaOH into the sump, spiking pH to 13+ and wasting $50–100 of chemical in a single event — while also creating a caustic safety hazard near the scrubber.

Chemical Day Tank: Level and Concentration Monitoring

The day tank stores diluted NaOH ready for dosing. Check the level daily — an empty day tank is the most common cause of pH drop and acid breakthrough, even in automated systems where the PID controller drives the pump to 100% output against an empty tank without triggering an alarm. Verify the NaOH concentration monthly using a hydrometer or refractometer. In hot climates, evaporation from the tank surface concentrates the solution above 15%, which accelerates corrosion of metallic fittings and can cause salt crystallization at the dosing point. For PP day tanks, this is not a corrosion concern, but concentration should still be kept within 8–12% for optimal pH control stability.

Dosing Line Check Valve: Quarterly Inspection

The check valve on the NaOH dosing line prevents sump liquid from backflowing into the day tank when the pump is off. In acid scrubbing service, this check valve can stick open due to salt crystallization at the valve seat — allowing acid-laden sump liquid to mix with concentrated NaOH in the day tank, creating a hazardous reaction and contaminating the chemical supply. Disassemble and clean the check valve quarterly. Replace the valve seat and seal annually. A stuck-open check valve is not visible during normal operation — the symptom is erratic pH control that persists even after probe calibration and pump inspection.

Compliance Documentation: What Auditors Actually Check

Maintenance records are not optional paperwork — they are the documentary evidence that your acid scrubber has been operating within its design parameters and meeting its emission permit limits. When an environmental auditor arrives (announced or unannounced), the inspection follows a predictable sequence. If the first three documents are complete and consistent, the audit passes quickly. If any one is missing or shows unexplained drift, the auditor expands the review to chemical logs, maintenance records, and instrument calibration history — which takes 3–5× longer and often results in corrective action requests.

The Three Documents Auditors Check First

1. pH trend charts showing consistent setpoint control. The auditor wants to see daily pH readings plotted over time, staying within the target range (7–9 for HCl, 10–12 for HF). Gaps in the record are a red flag — they suggest the scrubber was operating without monitoring. Excursions above or below the range must have documented corrective actions attached. The hydropure FGD guide confirms: “pH stability within ±0.3 units from the setpoint is a critical KPI — any deviation should trigger an automatic system review.”

2. Differential pressure trends showing no upward drift. The ΔP trend chart demonstrates that the packed bed is maintaining its design flow resistance. A flat trend proves the packing is clean and properly installed. A rising trend without documented corrective action (cleaning, packing replacement) suggests the scrubber was operating at reduced efficiency for an extended period.

3. Annual stack test results showing permit compliance. The stack test — conducted by a qualified third-party testing firm using EPA reference methods (Method 26A for acid gases, Method 29 for metals) — provides the numerical proof that the scrubber meets its emission limits. The auditor compares the stack test results against the permit limits and against the trend data from the pH and ΔP charts. If the stack test shows compliance but the trend data shows drift, the auditor may request a retest.

Additional Records Auditors Request

If the primary three documents pass, the auditor may still request: monthly chemical consumption summaries (showing NaOH usage is consistent with the inlet acid loading), quarterly structural inspection reports (showing the vessel, ductwork, and fan were inspected), instrument calibration records (showing pH probes, conductivity sensors, and ΔP transmitters were calibrated on schedule), and maintenance intervention records (even if the entry is “no action required — visual inspection passed”). The torch-air.com wet scrubber maintenance guide recommends logging: “date/time of inspection, operator name, pressure drop, liquid flow rate, gas velocity, pH, conductivity, liquid temperature, presence of leaks/foam/corrosion, condition of nozzles, pumps, valves, corrective actions performed and results.”

For plants serving export markets or subject to international standards, the ISO 10121-2:2013 standard provides internationally recognized methods for assessing gas-phase air cleaning media performance. Under India’s CPCB framework, consent-to-operate conditions require monitoring and recording pressure drop across the scrubber once per shift. The Central Pollution Control Board (CPCB) has tightened enforcement timelines since 2015, with State Pollution Control Boards conducting unannounced inspections with increasing frequency.

Frequently Asked Questions

How often should I inspect my acid scrubber?

A five-tier inspection schedule covers every failure mode: Tier 1 operational checks every shift (pH, ΔP, pump pressure, blowdown — 5–10 minutes), Tier 2 component checks monthly (nozzle spray pattern, mist eliminator, tank interior, dosing pump — 1–2 hours), Tier 3 structural checks quarterly (vessel exterior, weld seams, ductwork, fan — 2–4 hours), Tier 4 deep inspection annually (manway entry, packing condition, distributor levelness, full instrument calibration — 1 planned day), and Tier 5 ultrasonic thickness testing every 2 years for SS304 tanks only. PP systems eliminate Tier 5 entirely because there is no waterline corrosion mechanism.

How often should I calibrate the pH probe in my acid scrubber?

Every 2 weeks using fresh two-point buffer solutions (pH 4.0 and 7.0 for HCl/H₂SO₄ service; pH 7.0 and 10.0 for HF service). After calibration, verify the reading against a grab sample tested with a calibrated portable meter. If the inline probe and portable meter disagree by more than 0.2 units after calibration, replace the probe. Average probe life in acid scrubbing service is 8–14 months. The glass electrode degrades continuously in the acidic environment — calibration frequency is the only way to maintain measurement accuracy between replacements.

When should I clean vs replace the packing in my acid scrubber?

Clean when differential pressure increases 15–25% above the clean-bed baseline AND the packing has been in service less than 5 years. Cleaning involves draining the sump, soaking the packed bed in cleaning solution (5% NaOH for sulfate scale, 5% HCl for calcium carbonate scale) for 4–8 hours, and flushing with clean water. Replace when: ΔP increases more than 30% above baseline AND cleaning no longer restores it; packing age reaches 7–8 years (random) or 5–6 years (structured); or visible inspection reveals cracked or deformed packing pieces. PP packing’s smooth hydrophobic surface resists scale adhesion — cleaning restores 80–95% of original surface area.

What should I do if my acid scrubber tank starts leaking?

Contain the leak immediately using the drip tray or secondary containment. Shut off the makeup water feed and drain the tank to below the leak level using the blowdown valve. Locate the leak source — waterline pinhole (SS304), weld crack, or nozzle joint failure. Apply a temporary patch if possible (PP epoxy for PP tanks, rubber plug for SS304). Schedule a permanent repair: PP weld repairs take 1–2 days with a qualified thermoplastic welder; SS304 repairs require surface preparation, passivation, and inspection — typically 3–5 days. PP tanks eliminate waterline corrosion leaks entirely through chemical inertness at the liquid level zone.

What records do I need for a CPCB compliance audit?

Three documents are checked first: pH trend charts showing consistent setpoint control within target range, differential pressure trends showing no upward drift from the clean-bed baseline, and annual stack test results showing permit compliance. If these three pass, the auditor may request monthly chemical consumption summaries, quarterly structural inspection reports, instrument calibration records, and maintenance intervention logs. Under India’s CPCB framework, consent-to-operate conditions require monitoring and recording pressure drop across the scrubber once per shift.

How does material selection affect my acid scrubber maintenance schedule?

PP systems eliminate the most labor-intensive maintenance tasks that metallic scrubbers require: ultrasonic thickness testing at the waterline (every 6 months for SS304), weld crack inspection and repair, and coating recoating. PP delivers 40% lower maintenance labor compared to SS304 across all inspection tiers. FRP systems require acoustic emission testing annually (at $500–1,000 per event) to detect delamination — a failure mode invisible from the outside. For the full material comparison with lifecycle cost data, see our acid fume scrubber 10-year TCO analysis.

Conclusion

Effective acid scrubber maintenance is not about working harder — it is about engineering out the failure mechanisms that create the work. A five-tier inspection schedule assigns each task to the right frequency: shift-level walk-arounds for pH, ΔP, and pump readings; monthly checks for nozzles, mist eliminators, and tank sediment; quarterly structural inspections; annual deep inspections through the manway; and biannual ultrasonic thickness testing for SS304 tanks only. PP systems eliminate the most labor-intensive tier entirely.

The three maintenance tasks that deliver the highest return on time invested are: (1) pH probe calibration every 2 weeks — preventing the 0.5 unit drift that wastes $200–400/year in NaOH and creates compliance risk; (2) ΔP trend documentation — the single most reliable indicator of packing condition and the earliest predictor of removal efficiency decline; and (3) emergency repair protocol drills — reducing unplanned downtime from 3–5 days to 4–8 hours when pump failure, tank leak, or packing collapse occurs.

A well-maintained PP acid scrubber operates at design efficiency for 15–20 years with 40% lower maintenance labor than SS304 and no waterline corrosion, no coating recoating, and no mid-life vessel replacement. For a customized maintenance program and inspection schedule specific to your acid scrubber configuration, contact our engineering team.
