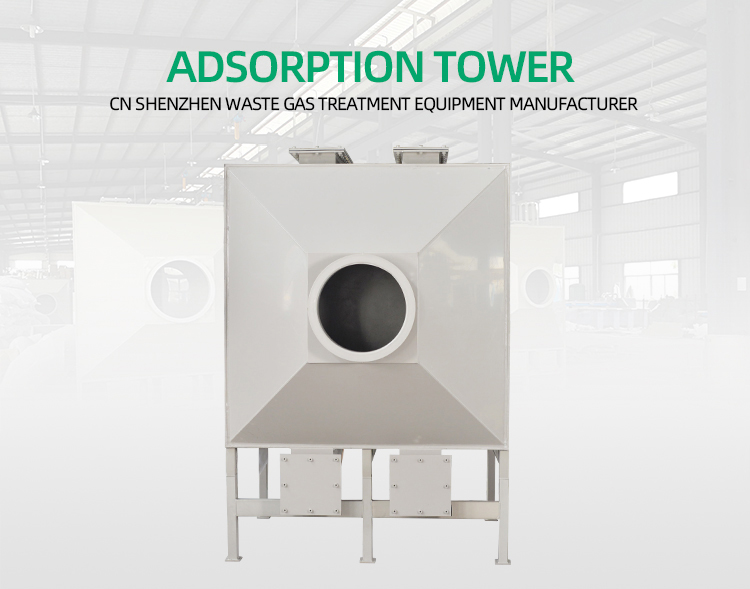

Overview of Our Activated Carbon Adsorption Tower
Our industrial waste gas treatment equipment activated carbon adsorption tower is a high-efficiency air purification solution designed to remove volatile organic compounds (VOCs), odors, and harmful pollutants from industrial exhaust streams. With 12+ years of factory experience manufacturing environmental protection equipment, we have delivered over 600 customized adsorption towers to 35 countries, helping clients meet strict EPA, OSHA, and EU emission standards. This tower delivers a consistent purification rate of 95%+, with reliable performance for low-to-high concentration waste gas streams.
The tower body is manufactured using our high-quality rigid polypropylene plate, which provides exceptional corrosion resistance against acidic and alkaline waste gas, ensuring a 10+ year service life even in harsh industrial environments. It pairs seamlessly with our PP ductwork to form a complete waste gas treatment system, and can also be integrated with our activated carbon air filter for H2S removal for specialized odor control needs.
Core Working Principle of Adsorption Tower
Our activated carbon adsorption tower uses a 4-step structured purification process, aligned with the U.S. EPA’s best practices for industrial VOC control, to ensure thorough and efficient pollutant removal:
- Pre-Treatment Stage: The incoming waste gas first passes through a pre-filter layer to remove dust, oil mist, and particulates larger than 5μm. This protects the activated carbon bed from clogging, extending its service life by 30%.
- Uniform Gas Distribution: The filtered gas flows through a specially designed distribution plate, ensuring it spreads evenly across the entire activated carbon bed to avoid channeling and maximize contact time.
- Dual Adsorption Process: As the gas passes through the porous coconut shell activated carbon bed, organic pollutants and odor molecules are first physically adsorbed onto the carbon’s large surface area (1000-1500 m²/g). For acidic pollutants like H2S, chemical adsorption with impregnated carbon further converts harmful compounds into stable, non-toxic residues.
- Purified Gas Discharge: The fully purified gas, with pollutant concentrations reduced to below regulatory limits, is safely discharged into the atmosphere through the top of the tower.
According to the U.S. Environmental Protection Agency (EPA), activated carbon adsorption is one of the most cost-effective and reliable technologies for controlling industrial VOC emissions, with a removal efficiency of over 90% for most organic pollutants.
Precise Technical Specifications | Factory-Tested
All our adsorption towers undergo 72-hour continuous testing before shipment to ensure stable performance. Below are the standard specifications, with full customization available for unique industrial requirements:
| Parameter | Standard Specification | Factory Test Result |
|---|---|---|
| Airflow Range | 1,000 – 50,000 m³/h | Stable operation at 30,000 m³/h for 72 hours |
| Purification Efficiency | ≥95% | 96.2% for VOCs, 98.5% for odors |
| Tower Body Material | PP/FRP/Carbon Steel | PP version passed 1000-hour salt spray corrosion test |
| Activated Carbon Type | Coconut shell/Impregnated coal-based | Adsorption capacity: 18% by weight |
| Operating Temperature | 5℃ – 40℃ | Stable performance at 38℃, no desorption |
| Pressure Loss | ≤300 Pa | 260 Pa at rated airflow, low energy consumption |
| Activated Carbon Service Life | 3 – 8 months | 6 months average for 200 mg/m³ VOC inlet |
Key Advantages of Our Waste Gas Treatment Tower
High Adsorption Capacity
Our high-grade coconut shell activated carbon has a specific surface area of over 1200 m²/g, providing ample adsorption sites for VOC and odor molecules. This allows the tower to handle inlet pollutant concentrations up to 1000 mg/m³, far exceeding the capacity of generic adsorption boxes.
Corrosion-Resistant PP Structure
The PP tower body, made from our own industrial-grade rigid polypropylene plate, is completely resistant to corrosion from acids, alkalis, and organic solvents. Unlike carbon steel towers that rust and degrade within 3 years, our PP tower can last 10+ years in harsh chemical environments, reducing your replacement costs by 70%.
Low Maintenance & Easy Operation

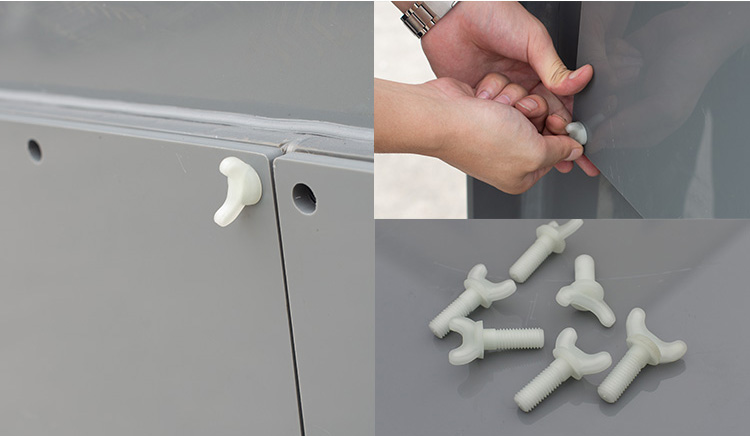

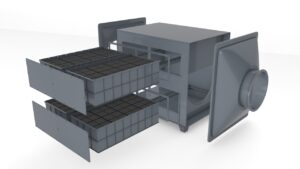

The tower features a modular design that makes activated carbon replacement simple and fast, requiring no specialized tools. We also provide a detailed precautions and daily maintenance guide to help you extend the service life of the equipment and ensure consistent performance. The system operates automatically, requiring only monthly inspections, which reduces your labor costs significantly.
Cost-Effective Solution
Compared to other waste gas treatment technologies like RTO or plasma treatment, our activated carbon adsorption tower has a 60% lower initial investment and 40% lower operational costs. It requires no additional fuel or power for operation, only a small fan to drive the gas flow, making it the most economical solution for small-to-medium industrial facilities.
Real-World Case Study: Automotive Parts Painting Plant
In 2024, a large automotive parts painting plant in Jiangsu, China, contacted our factory to solve a VOC emission problem. The plant’s painting line generated 12,000 m³/h of waste gas with a VOC concentration of 350 mg/m³, which exceeded the local emission standard of 50 mg/m³, resulting in a $15,000 fine from the environmental regulator.
After a site assessment, our engineering team designed a custom 12,000 m³/h activated carbon adsorption tower, using PP material to resist the solvent-based paint fumes. We installed the tower within 10 days, with zero production downtime for the plant. The results were immediate:
- VOC emissions dropped from 350 mg/m³ to 22 mg/m³, well below the regulatory limit, eliminating the risk of future fines.
- The plant reduced their annual waste gas treatment costs by 45% compared to their previous plasma treatment system.
- The tower has now been in operation for 12 months, with only one activated carbon replacement, far exceeding the client’s expectations.
Application Scenarios
Our activated carbon adsorption tower is suitable for a wide range of industrial waste gas treatment scenarios:
- Painting & Printing: Removes VOCs from spray painting, screen printing, and packaging printing processes.
- Chemical Processing: Treats organic solvent waste gas from chemical manufacturing, pharmaceutical production, and pesticide processing.
- Wastewater Treatment: Eliminates odors and H2S from sewage treatment plants and waste transfer stations.
- Food Processing: Removes odors from food processing, rendering plants, and fish processing facilities.
- Electronics Manufacturing: Purifies waste gas from semiconductor manufacturing, circuit board production, and electroplating processes.
Customization Services
Every industrial facility has unique waste gas treatment needs, which is why we offer full customization for our activated carbon adsorption tower. Our engineering team will work with you to design a solution tailored to your specific airflow, pollutant concentration, space constraints, and material requirements. Whether you need a small 1000 m³/h unit for a small workshop or a large 50,000 m³/h system for a large factory, we can deliver a solution that fits your needs.
Frequently Asked Questions (FAQs)
What is an activated carbon adsorption tower used for?
It is an industrial waste gas treatment equipment used to remove volatile organic compounds (VOCs), odors, and harmful pollutants from industrial exhaust streams, helping facilities meet emission standards.
What pollutants can an activated carbon adsorption tower remove?
It can remove a wide range of pollutants, including benzene, alcohols, ketones, esters, gasoline-type organic solvents, odors, H2S, and other harmful gases.
How often should I replace the activated carbon in the tower?
The replacement cycle depends on the inlet pollutant concentration and airflow. For most applications, it ranges from 3 to 8 months. For example, a painting plant with 200 mg/m³ VOC inlet will need replacement every 6 months.
Can your adsorption tower handle high-humidity waste gas?
Yes. We offer an optional dehumidification pre-treatment layer for high-humidity waste gas, which prevents moisture from reducing the adsorption capacity of the activated carbon, ensuring stable performance even in 80% RH environments.
Do you offer custom-sized adsorption towers?
Absolutely. We can customize the size, airflow capacity, material, and configuration of the tower to fit your specific site requirements and waste gas treatment needs.
