Scrubber Blowdown Management: Reduce Wastewater & Cut Costs

Every wet scrubber produces wastewater. Dissolved solids from makeup water, reaction products from acid gas neutralization, and captured particulates all concentrate in the recirculation loop until a fraction must be continuously bled. This bleed stream — scrubber blowdown — is often the single largest recurring operating cost after chemical consumption. Yet the volume, composition, and treatment cost of scrubber blowdown are not fixed. They are engineering decisions made during the design phase. This guide covers how to calculate blowdown rate, what the wastewater contains, how to treat it, and how material selection in the scrubber itself can reduce scrubber blowdown volume by 25% or more.

Key Takeaways

• Blowdown rate is governed by a simple mass balance — Blowdown = Evaporation × Cᵢ / (Cₘₐₓ – Cᵢ) — and the Cₘₐₓ limit depends on vessel material, not chemistry alone.
• PP scrubbers tolerate twice the TDS of stainless steel — 7,000–8,000 mg/L vs 3,500–4,000 mg/L — directly translating to 25% less wastewater and $8,000–$12,000 annual savings.
• Treatment technology depends on pollutant type — fluoride requires calcium precipitation, sulfate/chloride need neutralization or RO, and heavy metals demand hydroxide precipitation at pH 9–10.
• ZLD (zero liquid discharge) is justified when no discharge permit exists, hauling costs exceed $0.40/gal, or water scarcity makes recovery valuable.
• Four continuous measurements — pH, TDS, differential pressure, makeup flow — prevent 90% of scrubber blowdown-related compliance failures.

Where Scrubber Blowdown Comes From — And How to Calculate It

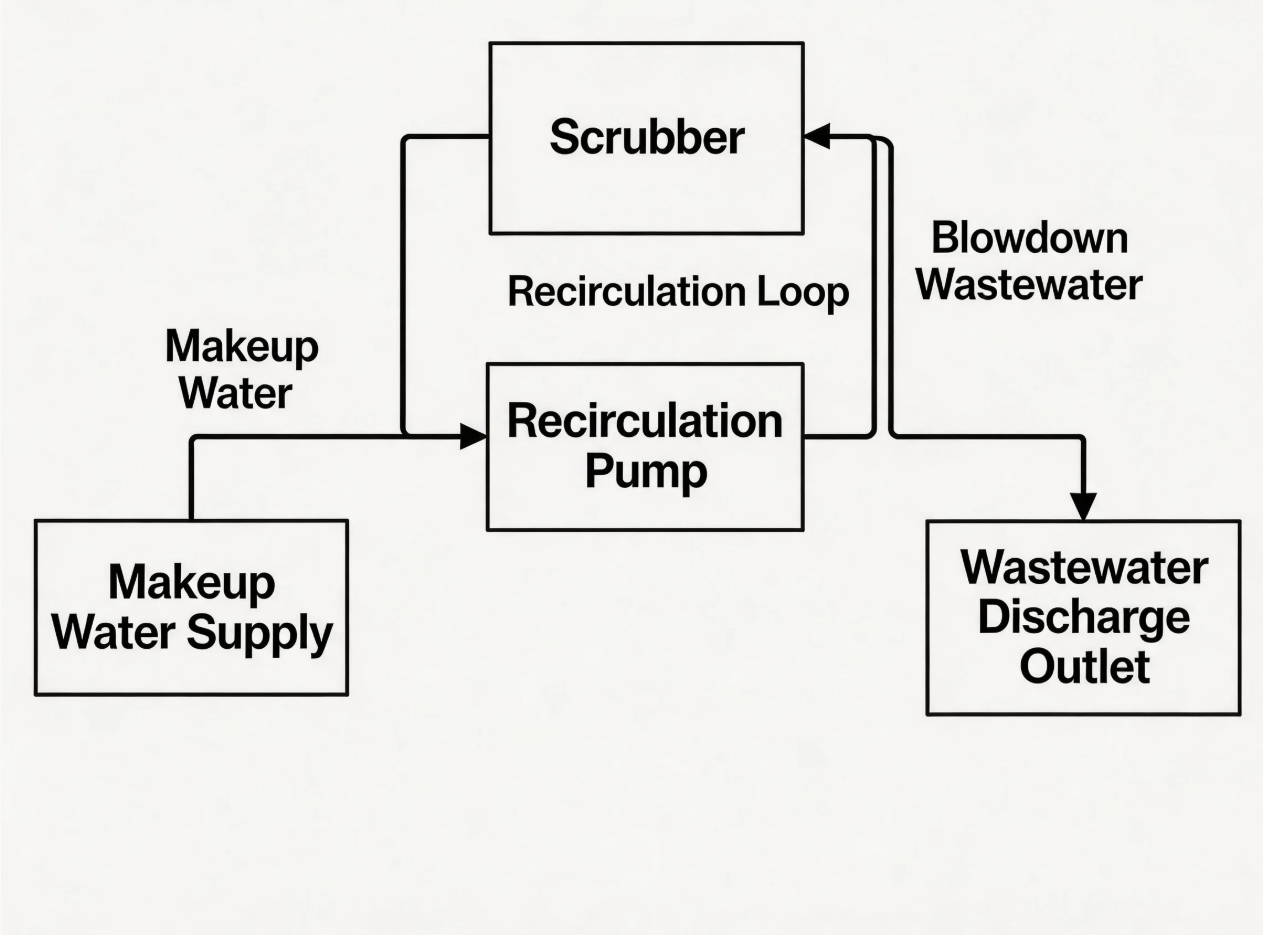

In a recirculating scrubber loop, water performs three jobs simultaneously: absorbing acid gases, capturing particulates, and carrying heat away from the packed bed. As water evaporates during this process, dissolved solids that entered with the makeup water — and reaction products from acid neutralization — steadily concentrate. Without a continuous scrubber blowdown stream, these solids precipitate as scale on packing surfaces, plug spray nozzles, and collapse removal efficiency.

The blowdown rate for a scrubber blowdown management system is governed by a straightforward mass balance:

Blowdown Rate = Evaporation Rate × Cᵢ / (Cₘₐₓ – Cᵢ)

Where:

• Cᵢ = total dissolved solids (TDS) in the makeup water (mg/L)
• Cₘₐₓ = maximum allowable TDS in the recirculating loop before scaling accelerates (mg/L)
• Evaporation Rate = water lost to gas saturation and drift (GPD)

For a 10,000 CFM HCl scrubber with makeup water at 300 mg/L TDS and evaporation of 600 GPD, the blowdown depends critically on Cₘₐₓ. With stainless steel (Cₘₐₓ = 3,500 mg/L), the result is 1,200 GPD. With PP (Cₘₐₓ = 7,500 mg/L), it drops to 900 GPD — a 25% reduction driven entirely by material selection.

Four variables shift the required scrubber blowdown volume:

• Makeup water quality — hard well water at 500+ mg/L TDS demands more blowdown than softened city water at 150 mg/L
• Gas temperature — higher inlet temperatures increase evaporation rate, concentrating solids faster
• Chemical dosing — NaOH or lime addition raises dissolved solids independently of captured pollutants
• Target Cₘₐₓ — the single largest lever, determined by vessel material. PP internals resist scale adhesion at higher TDS concentrations because their smooth, low-energy surface provides fewer nucleation sites for crystal growth

Generic rules of thumb (5% scrubber blowdown, 10% scrubber blowdown) fail because they ignore these interactions. A manufacturer that calculates scrubber blowdown during the design phase — rather than leaving operators to guess — delivers a measurably lower operating cost over the system’s 15-year life. For scrubber sizing inputs that feed this calculation, see our scrubber sizing calculation guide.

What Scrubber Blowdown Contains — And Why It Varies

The chemistry of scrubber blowdown depends entirely on what the exhaust contains. Proper characterization of scrubber blowdown is the first step toward selecting the right treatment technology. Three pollutant profiles dominate industrial applications, and each demands a different treatment pathway.

Fluoride — The Most Tightly Regulated

Hydrogen fluoride scrubbing — common in lithium battery recycling, semiconductor etching, and aluminum smelting — produces blowdown with fluoride concentrations that can exceed 100 mg/L. Most discharge permits limit fluoride to 2–10 mg/L (see Discharge Limits section below). The standard treatment is calcium salt precipitation: adding lime (Ca(OH)₂) or calcium chloride (CaCl₂) at pH 8–9 with a calcium-to-fluoride ratio of at least 1.5:1 to form insoluble calcium fluoride (CaF₂), which settles out as a filterable solid.

One detail often overlooked: the chloride ions from CaCl₂ addition attack stainless steel treatment tanks and piping. PP throughout the entire treatment train — from scrubber sump to precipitation tank to filter press — eliminates this secondary corrosion problem. See our electroplating acid scrubber guide for integrated air and water treatment design in fluoride service.

Sulfate and Chloride — Concentrated but Treatable

SO₂ scrubbing generates sulfate-laden blowdown; HCl scrubbing produces chloride-rich wastewater. Both are highly soluble and do not precipitate with lime alone. The treatment pathway depends on concentration:

• Low concentration (<2,000 mg/L) — neutralize pH to 6–9 and discharge to a centralized wastewater treatment facility
• Medium concentration (2,000–10,000 mg/L) — reverse osmosis recovers 60–80% of the water for reuse; concentrate goes to evaporation or disposal
• High concentration (>10,000 mg/L) — thermal evaporation produces dry salt for landfill disposal (ZLD configuration)

For a complete breakdown of acid scrubber chemistry, see our acid scrubber system design guide.

Heavy Metals — When Electroplating Meets Air Pollution Control

Chrome, nickel, and copper plating lines produce exhaust that carries metal mists into the scrubber. The scrubber blowdown contains dissolved heavy metals — typically 10–200 mg/L combined — that must be precipitated as hydroxides at pH 9–10 before discharge. The precipitated sludge is dewatered via filter press and disposed of as hazardous waste.

Stainless steel scrubbers complicate this treatment because they continuously leach iron, chromium, and nickel into the recirculating water — adding to the metal load that must be removed. A PP scrubber blowdown stream contributes zero metals to the wastewater, simplifying treatment and reducing the risk of exceeding discharge limits. For electroplating scrubber integration, see our electroplating ventilation system design guide.

Scrubber Blowdown Treatment Technologies — From Chemical Precipitation to Zero Liquid Discharge

Once scrubber blowdown leaves the scrubber sump, the treatment pathway depends on discharge permit conditions, local water costs, and pollutant profile. The right technology stack can reduce wastewater volume by 60–95% and, in some configurations, recover water for reuse.

Chemical Precipitation and Clarification

The baseline treatment for scrubber blowdown containing regulated pollutants. Calcium precipitation removes fluoride (as CaF₂). Hydroxide precipitation at pH 9–10 removes heavy metals (Cr, Ni, Cu, Zn). The settled sludge is dewatered via filter press and disposed of or sent to metal recovery. Capital cost: $15,000–$40,000 for a system sized to 1,000–5,000 GPD. Operating cost: $3–$6 per 1,000 gallons including chemicals and sludge disposal. This is the minimum viable treatment for any scrubber blowdown containing regulated pollutants — it does not reduce water volume, only contaminant concentration.

Reverse Osmosis (RO)

RO membranes recover 60–80% of the water from scrubber blowdown, producing a permeate stream clean enough to reuse as scrubber makeup water. The remaining 20–40% concentrate (brine) still requires disposal — evaporation, deep well injection, or hauling. Capital cost: $60,000–$150,000. Operating cost: $2–$5 per 1,000 gallons including membrane replacement and cleaning. RO is most economical where municipal water costs exceed $4/1,000 gallons or where discharge permits restrict volume.

Thermal Evaporation

Atmospheric or thermal evaporators boil off the water from scrubber blowdown, leaving a concentrated slurry or dry salt. Atmospheric evaporators work for small volumes (<5,000 GPD) and rely on ambient air temperature and wind; thermal evaporators use natural gas or waste heat and handle any volume. Capital cost: $80,000–$200,000. Operating cost: $8–$15 per 1,000 gallons, dominated by energy consumption. The main advantage: evaporation produces zero liquid discharge without the complexity of ZLD crystallization.

Zero Liquid Discharge (ZLD)

For scrubber blowdown, ZLD means no wastewater leaves the facility — all water is recovered and salts are crystallized to dry filter cake for landfill. The standard configuration is an evaporator (falling film or forced circulation) followed by a brine crystallizer. A 500 GPM falling film evaporator recovers approximately 90% of the water for reuse; the remaining 10% concentrate enters the crystallizer to produce a disposable solid. Capital cost: $250,000–$600,000 for a complete ZLD system. Operating cost: $12–$25 per 1,000 gallons.

ZLD is the right investment when one of these conditions is met:

• No discharge permit is available or the receiving water body is classified as sensitive
• Wastewater hauling costs exceed $0.40–$0.60 per gallon — common in remote or inland locations
• Recovered water has economic value in water-scarce regions
• Regulatory pressure is tightening and future ZLD mandates are anticipated

Technology Comparison

For most scrubber blowdown applications, a two-stage approach — chemical precipitation for regulated pollutants followed by RO for water recovery — provides the best balance of compliance and operating cost. ZLD is reserved for facilities where discharge is not an option. The EPA wet scrubber monitoring framework provides reference guidance on blowdown documentation and sampling frequency. For broader scrubber water management context, see our scrubber water treatment guide.

How Material Selection Drives Blowdown Volume

The material your scrubber is built from directly controls the volume of scrubber blowdown it produces. The mechanism is surface chemistry: stainless steel and FRP provide nucleation sites where dissolved solids crystallize into scale at lower TDS concentrations, while PP’s smooth, inert surface allows the loop to concentrate solids roughly twice as much before scaling begins.

The table below comes from parallel measurements on PP and SS304 scrubber systems operating on identical inlet gas streams at 10,000 CFM:

The metal ion leaching from SS304 is often overlooked but has real consequences for scrubber blowdown treatment. Stainless steel continuously releases iron, chromium, and nickel at 0.5–2.0 mg/L into the recirculating water. For electroplating scrubbers — where the blowdown already contains chrome and nickel from the captured exhaust — this added metal load pushes total concentrations closer to discharge limits and requires more chemical treatment to precipitate. PP contributes zero metals to the wastewater.

Over 10 years, the scrubber blowdown savings from PP construction compound to $80,000–$120,000 in reduced wastewater disposal, lower chemical consumption, and eliminated compliance deviations. For a full 10-year TCO comparison, see our hidden scrubber costs analysis.

Discharge Limits — What Your Permit Requires

Scrubber blowdown is regulated at the point of discharge — whether to surface water, municipal sewer, or industrial wastewater facility. Limits vary by region, receiving water body classification, and pollutant type. Always check your specific permit: the numbers below are guidelines, and individual permits may be 30–50% more restrictive.

India enforces the tightest fluoride limit at 2.0 mg/L — requiring a Ca:F ratio above 2:1 and a polishing filtration stage after chemical precipitation. China’s GB 8978 has strict heavy metal limits (0.5 mg/L for copper, 1.0 mg/L for nickel) that demand hydroxide precipitation plus membrane filtration or activated carbon polishing.

The practical implication for scrubber design: build the treatment system to meet the tightest limit you expect to face during the facility’s operating life. Adding a filter press or RO stage at initial construction costs a fraction of retrofitting after a permit violation. The US EPA Pretreatment Standards and the EU Industrial Emissions Directive provide the regulatory frameworks most commonly referenced by multinational facilities.

Monitoring the Blowdown Loop — Four Measurements That Prevent Surprises

A scrubber blowdown management program is only as good as the data feeding it. Four continuous measurements form the early warning system that keeps a scrubber blowdown loop within its design envelope and catches problems before they become compliance violations.

pH — The Immediate Indicator

For HCl scrubbing, maintain pH 7–9. For HF, pH must reach 10–12. For SO₂ scrubbing, pH 6–8 is the target range. A deviation of more than 0.5 units signals either a change in gas load or a chemical dosing failure. Continuous pH measurement with automatic chemical feed adjustment eliminates the most common cause of blowdown-related compliance failures: incorrect neutralization.

Conductivity / TDS — The Scaling Early Warning

Rising conductivity means dissolved solids are concentrating. When conductivity reaches the target Cₘₐₓ (converted to TDS via a site-specific correlation), the blowdown valve should open automatically. Manual blowdown schedules — opening a valve twice per shift — almost always result in either excessive water consumption or scaling, because gas loads vary hour by hour and concentration rates follow. A conductivity-triggered automatic blowdown valve costs $1,500–$3,000 installed and typically pays for itself within 2 months through water savings alone.

Differential Pressure Across the Packed Bed — The Physical Scaling Detector

A 20% increase from the clean-bed baseline, at constant airflow, indicates that solids are building up on packing surfaces. This is the earliest physical sign that blowdown rate is insufficient. The measurement requires two pressure taps — one above and one below the packed bed — connected to a differential pressure transmitter. Baseline readings should be recorded during commissioning at the design airflow and liquid flow rate.

Makeup Water Flow Rate — The Leak Detector

Tracked with a totalizer. If the makeup rate increases without a corresponding change in blowdown volume or evaporation, there is a hidden leak in the recirculation loop. A leaking flange, a cracked PP fitting (rare but possible from mechanical impact), or a failed spray nozzle can lose 50–200 GPD undetected if makeup water flow is not monitored.

For troubleshooting other scrubber performance issues beyond blowdown, see our wet scrubber troubleshooting guide and scrubber performance testing guide.

Case Study: How Blowdown Optimization Paid Back in 11 Months

A lithium battery recycler in Malaysia was grappling with two problems in one system. Their SS304 packed bed scrubber — sized for 8,000 CFM of HF-laden exhaust from cathode material processing — had developed pinhole leaks from fluoride and chloride attack. Just as pressing: the scrubber was discharging 1,400 gallons per day of fluoride-laden scrubber blowdown, consuming 18 tons of lime per month for treatment.

We replaced the entire scrubbing stage with a PP system. The PP shell solved the corrosion issue permanently — no more pinhole leaks, no more unplanned shutdowns for emergency welding. But the larger savings came from rethinking the scrubber blowdown design.

What changed:

• The mist eliminator was matched to the actual droplet size distribution (99% capture at 3+ microns), reducing liquid carryover and makeup water demand
• The recirculation rate was optimized: the old SS304 system ran at 120 GPM to compensate for channeling caused by scale buildup; the clean PP internals achieved the same liquid distribution at 95 GPM
• The blowdown trigger was set at TDS 7,500 mg/L — a level the PP internals could tolerate — versus the old system’s 3,800 mg/L limit
• Conductivity-triggered automatic blowdown replaced the manual twice-per-shift valve schedule

Results:

The plant’s quarterly compliance deviations — a recurring headache driven by unstable water chemistry in the corroding SS304 system — stopped entirely. The scrubber blowdown reduction alone saved $35,000/year in lime and wastewater disposal costs. Combined with eliminated repair downtime, the system paid back its incremental PP capital cost in 11 months.

Frequently Asked Questions

How do I calculate the right scrubber blowdown rate for my scrubber?

Use the mass balance: Blowdown = Evaporation × Cᵢ / (Cₘₐₓ – Cᵢ). For PP systems, Cₘₐₓ can safely reach 7,000–8,000 mg/L — roughly double the safe limit for stainless steel — enabling lower blowdown volumes. The evaporation rate depends on inlet gas temperature and airflow. A properly designed loop uses conductivity-triggered automatic discharge rather than manual scheduling.

Why does PP produce less scrubber blowdown than stainless steel?

PP’s surface is smoother and chemically inert. It provides fewer nucleation sites for scale crystals to form, so the recirculating water can safely hold a higher TDS concentration before scaling begins. Higher allowable TDS means less frequent blowdown. PP also releases zero metal ions into the water, eliminating a source of contamination that stainless steel cannot avoid.

How is fluoride removed from scrubber blowdown?

Calcium precipitation — adding lime (Ca(OH)₂) or calcium chloride (CaCl₂) at pH 8–9 with a Ca:F ratio above 1.5:1 — converts dissolved fluoride to filterable CaF₂. India’s CPCB limit of 2.0 mg/L fluoride may require a polishing filtration stage after precipitation. The entire treatment train, including chemical dosing and settling tanks, should be PP because the fluoride plus chloride mixture attacks both stainless steel and FRP.

What instruments do I need for scrubber blowdown management?

Continuous pH and conductivity sensors on the recirculation loop, differential pressure measurement across the packed bed, and a flow totalizer on the makeup water line. These four measurements detect scaling, chemical dosing failures, and hidden leaks before they cause compliance problems. Total instrument cost: $5,000–$12,000 installed — less than one compliance deviation penalty in most jurisdictions.

Can I reduce scrubber blowdown without buying a new scrubber?

If your vessel is still structurally sound, you can optimize mist elimination (reduce liquid carryover), install conductivity-triggered automatic blowdown valves (replace manual scheduling), and improve pH control with chemical dosing automation. These upgrades typically cost $5,000–$15,000 and reduce blowdown by 15–25%. However, if the shell is already showing pinholes or the packing is heavily scaled, these measures only delay the need for a complete replacement.

What is a realistic payback period for scrubber blowdown optimization?

Our documented installations show payback on blowdown optimization ranging from 11 to 18 months, depending on local water rates and wastewater disposal costs. The Malaysian lithium battery recycler described in our case study achieved an 11-month payback through blowdown reduction (32%) and chemical savings alone. The primary driver is usually wastewater disposal cost — facilities paying $0.30+/gallon for hauling or treatment see the fastest returns.

When should I invest in zero liquid discharge for scrubber blowdown (ZLD)?

ZLD is justified when no discharge permit is available, when wastewater hauling costs exceed $0.40–$0.60/gallon (common in remote locations), when water scarcity makes recovery valuable, or when future ZLD mandates are anticipated. The payback period for ZLD in industrial scrubber applications is typically 3–5 years, depending on water cost and discharge fee escalation.

Conclusion

Scrubber blowdown management is a design discipline that determines the long-term operating cost of every wet scrubber system, not an operational afterthought. The difference between a system that calculates blowdown during engineering and one that leaves it to manual valve operation shows up in every operating cost line item: water consumption, treatment chemical purchases, disposal fees, and compliance consistency. The mass balance formula — Blowdown = Evaporation × Cᵢ / (Cₘₐₓ – Cᵢ) — is straightforward. The variable that most engineers overlook is Cₘₐₓ, which depends as much on vessel material as on water chemistry. PP construction enables a fundamentally more efficient blowdown strategy: higher allowable TDS, less scale, zero metal leaching, and 25% less wastewater — savings that compound into tens of thousands of dollars over the system’s 15-year service life.

Treatment technology selection — from simple chemical precipitation to full ZLD — depends on your discharge permit, pollutant profile, and local water economics. The four-instrument monitoring system (pH, TDS, differential pressure, makeup flow) ensures the blowdown loop stays within its design envelope year after year.

Contact our team with your exhaust gas composition, makeup water quality, and discharge permit limits. We will return a complete scrubber blowdown management design — including TDS setpoint, blowdown rate, treatment chemical consumption, and monitoring instrumentation specification — with a written performance guarantee and factory-direct pricing.
