Introduction
Choosing the right gas scrubber for your industrial plant can mean the difference between years of trouble-free compliance and constant emergency repairs. Whether you need to remove hydrogen sulfide from biogas, neutralize hydrochloric acid from pickling lines, or clean fuel gas before combustion, the underlying technology is similar — but the materials and chemistry must match your specific pollutant. This guide compares h2s gas scrubber, acid gas scrubber, and fuel gas scrubber systems, showing when each type is needed and why polypropylene (PP) construction delivers the lowest lifecycle cost. As a factory-direct manufacturer with over 500 installations worldwide, we have seen how the wrong material choice causes failure within two years — and how PP prevents it for over a decade.

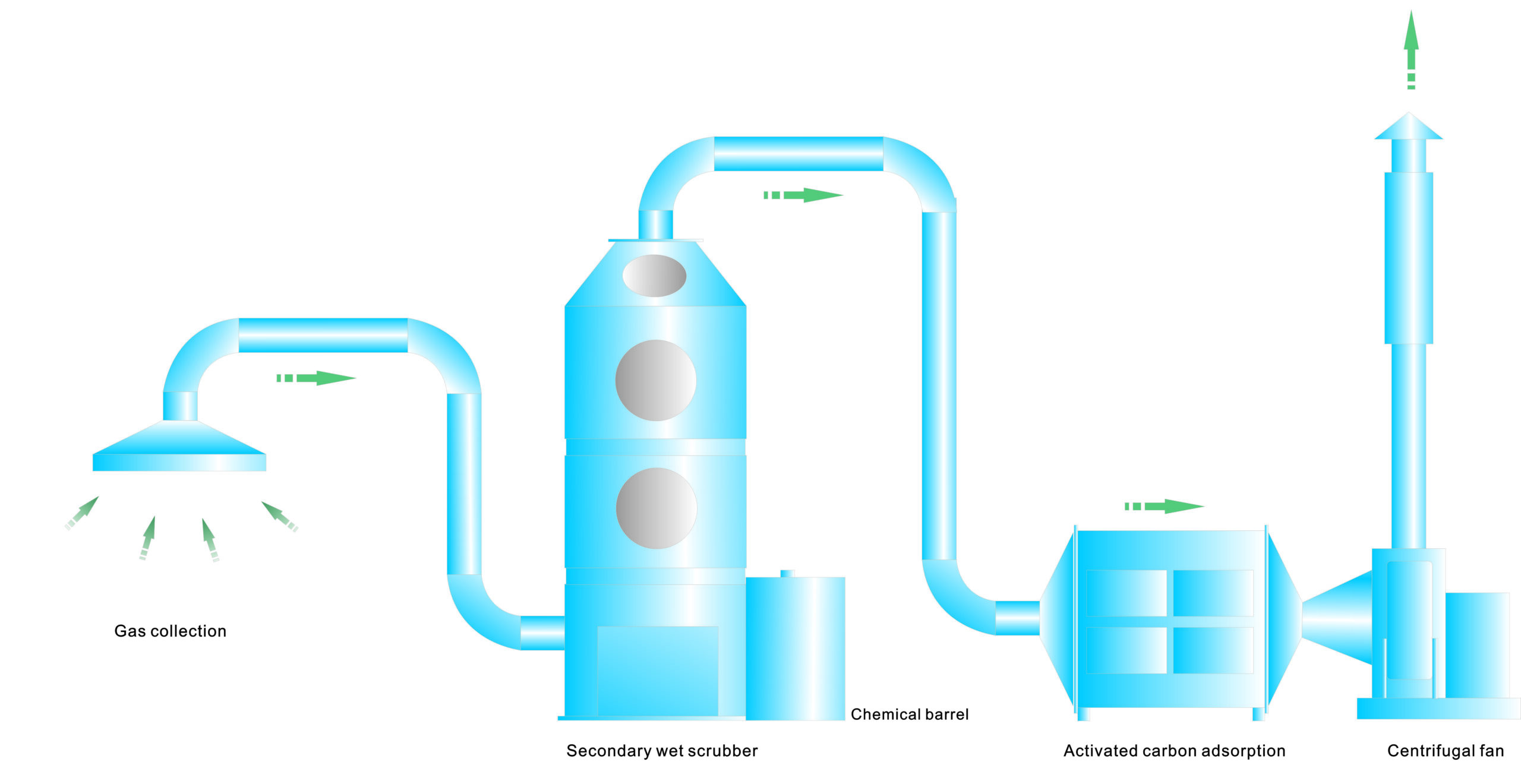

What Is a Gas Scrubber and How Does It Work?
A wet scrubbing system removes harmful gases and particulates from an exhaust stream by bringing contaminated air into intimate contact with a liquid. The scrubbing medium — usually water, caustic soda, or a specialized solvent — absorbs pollutants through direct mass transfer. Cleaned gas then exits the stack while the liquid is treated and recirculated. This principle powers everything from small laboratory units to massive refinery installations. The key variable is what you are trying to remove: acid gas units target HCl, HF, and SO₂; H2S-specific designs handle hydrogen sulfide; and fuel gas systems clean combustible gases before they enter engines or burners. For a deeper look at the underlying technology, read our guide on how scrubber work solves industrial air compliance.
Comparing H2S, Acid Gas, and Fuel Gas Scrubbers
While all three belong to the same equipment family, their applications, chemistry, and material demands differ significantly. The table below summarizes the key distinctions.
| Parameter | H2S Gas Scrubber | Acid Gas Scrubber | Fuel Gas Scrubber |
|---|---|---|---|
| Target Pollutants | Hydrogen sulfide (H₂S), mercaptans | HCl, HF, H₂SO₄, HNO₃, SO₂ | H₂S, siloxanes, moisture, particulates |
| Typical Scrubbing Liquid | Amine solutions, caustic soda, oxidizing agents | NaOH (caustic soda) or lime slurry | Water, glycol, or amine for biogas |
| Key Industries | Oil & gas, biogas plants, refineries | Electroplating, chemical processing, steel pickling | Biogas upgrading, landfill gas, natural gas processing |
| Material Recommendation | PP or 316L SS (PP preferred for wet, corrosive streams) | PP strongly preferred — 300% better than SS304 | PP for wet gas; coated carbon steel for dry gas |
| Maintenance Intensity | Moderate — solvent replacement needed | Low for PP; very high for SS | Moderate — depends on gas cleanliness |
H2S Gas Scrubber: Handling Hydrogen Sulfide Safely
Hydrogen sulfide abatement is essential wherever this toxic gas is present — biogas upgrading, refinery off-gas, or geothermal vents. H₂S corrodes most metals, and traditional carbon steel vessels degrade rapidly in wet service, while stainless steel can suffer stress corrosion cracking. Our PP packed bed scrubber handles H₂S-laden streams with complete chemical immunity. The EPA monitoring requirements for wet scrubbers mandate continuous or periodic checks, and PP construction ensures compliance without vessel degradation.
Acid Gas Scrubber: Neutralizing Corrosive Fumes
This configuration is the workhorse of metal finishing and chemical manufacturing. Exhaust containing hydrochloric, sulfuric, or hydrofluoric acid is routed through a packed bed where caustic solution converts pollutants into harmless salts. PP truly separates itself here: it demonstrates 300% better corrosion resistance than 304 stainless steel and lasts 2x longer than FRP. Unlike steel, which develops pinhole leaks within 18–24 months, PP remains gas-tight for over 15 years. Our industrial PP wet scrubber is purpose-built for mixed acid environments. To meet OSHA permissible exposure limits, a leak-free shell is non-negotiable. For more equipment options, see our 2026 guide to air pollution control systems.
Fuel Gas Scrubber: Cleaning Gas Before Combustion
This type treats combustible gases before they enter engines, turbines, or boilers, removing contaminants that corrode downstream equipment or cause post-combustion violations. In biogas applications, H2S removal is often the first stage, followed by moisture separation and siloxane filtration. PP is ideal for wet fuel gas streams because it resists the corrosive combination of moisture and acid compounds. For complete treatment systems, explore our gas scrubber for industrial waste gas treatment, which integrates multiple stages in a single PP vessel.
Why PP Material Is the Smart Choice
Regardless of configuration, the vessel material determines operational costs over the system’s 15–20 year lifespan. We have replaced hundreds of failed stainless steel and FRP units across Southeast Asia and the Middle East — not because the design was wrong, but because the material could not survive the chemistry.
- 300% better corrosion resistance than SS304 in acid service, backed by over 500 field installations.
- 40% lower maintenance labor — no welding, no patching, no recoating.
- 2x longer service life than FRP, which degrades from acid attack and UV exposure.
- Seamless homogeneous welds eliminate the leak paths where failures begin in metal vessels.
As this independent review on Pollution Engineering confirms, polymer-based systems are increasingly specified for corrosive applications where reliability is critical.
Not sure which type fits your process? Send us your gas composition and flow rate — our engineers will recommend the right PP configuration with a compliance guarantee. Get a Free Technical Recommendation →
How Much Can You Save with a PP System?
For a typical 10,000 CFM installation, a PP unit costs slightly more upfront than stainless steel, but the savings begin immediately: zero vessel rebuilds, 40% lower annual maintenance, and smoother internal surfaces that cut fan energy by roughly 15%. For an electroplating plant we served in Thailand, the replacement paid for itself in 18 months, and lifetime savings exceeded $80,000. To understand the hidden costs that inflate ownership, see our analysis of scrubber hidden costs. For precise sizing, consult our PP wet scrubber sizing guide.
Frequently Asked Questions
What is a gas scrubber and how does it work?
It removes pollutants by bringing contaminated air into contact with a scrubbing liquid. Pollutants are absorbed and neutralized, and the cleaned stream exits through a mist eliminator. PP systems maintain this efficiency for over 15 years without corrosion leaks.
What is the difference between acid gas and H2S scrubbing?
Acid gas units use alkaline solutions to neutralize HCl, HF, and SO₂. H2S-specific designs target hydrogen sulfide using amine-based or oxidizing solvents. Both benefit from PP construction in corrosive environments.
Why is PP the best material choice?
PP offers 300% better corrosion resistance than SS304, lasts 2x longer than FRP, and reduces maintenance by 40%. It is chemically inert to common acid gases and H2S.
Can one system handle multiple pollutants?
Yes. A properly designed PP packed bed unit can remove H2S, acid gases, and particulates simultaneously when the liquid chemistry is correctly matched. Our air pollution control wet scrubber is engineered for multi-pollutant removal.
How often is maintenance required?
PP systems require visual inspection every 6 months and occasional nozzle cleaning. Maintenance labor is 40% lower compared to stainless steel units needing frequent weld repairs.
What is fuel gas scrubbing used for?
It cleans combustible gases — biogas, landfill gas, or syngas — before combustion, removing H2S, moisture, and siloxanes that corrode engines and cause post-combustion emission violations.
Conclusion
Whether you need H2S removal for biogas, acid neutralization for electroplating exhaust, or fuel gas cleaning for engine protection, material choice is the single biggest factor in lifetime cost and reliability. PP systems — with 300% better corrosion resistance, 40% lower maintenance, and 2x longer lifespan — deliver the lowest total cost of ownership for any corrosive stream. Contact our team to specify the right configuration for your process, backed by factory-direct pricing and ten years of global project experience.
Get Your Free Gas Scrubber Quotation →
Written by our senior process engineer with 10+ years of experience designing and installing gas scrubbing systems for refineries, chemical plants, and metal finishing facilities across Asia, Africa, and Latin America. Every material comparison is based on actual field data from our 500+ installations.
