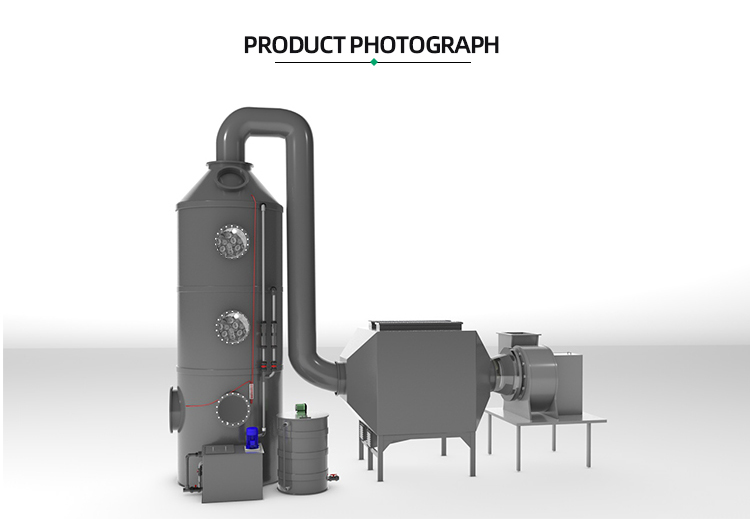

An industrial wet scrubber is a device used to control air pollution by removing harmful particles and gases from industrial exhaust streams. It introduces the polluted gas stream into a scrubbing liquid, typically water or a chemical solution, which absorbs or neutralizes the contaminants.
Principle: The primary mechanism of an industrial wet scrubber is the contact between the polluted gas stream and the scrubbing liquid. The effectiveness of the industrial wet scrubber depends on maximizing the surface area where the gas and liquid interact.
Method: Different designs (e.g., spray towers, venturi scrubbers, packed beds) achieve this through various means, such as spraying the liquid into the gas stream, forcing the gas through a liquid column, or using packing materials to enhance contact.
Absorption of Pollutants
Principle: The scrubbing liquid absorbs gaseous pollutants. Depending on the nature of the pollutant, the liquid might simply dissolve the gas or chemically react with it to form a less harmful compound.
Method: For example, acidic gases like sulfur dioxide (SO₂) can be absorbed by a basic solution (like lime or sodium hydroxide), neutralizing the gas and converting it into a harmless salt.
Capture of Particulates
Principle: Wet scrubbers capture particulate matter by entraining particles in the liquid droplets. The particles become suspended in the liquid, which is then collected, treated, or discarded.
Method: The gas stream is forced through a section where it encounters liquid droplets. The particles’ inertia causes them to collide and stick to the droplets, removing them from the gas stream.
Droplet Separation
Principle: After the gas and liquid have interacted, it is necessary to separate the liquid droplets from the cleaned gas stream before it is discharged.
Method: This is typically achieved using demisters, cyclones, or other droplet separation devices that force the gas to change direction sharply or pass through a mesh, allowing the heavier liquid droplets to be captured while the clean gas exits.
Chemical Reaction (Optional)
Principle: In some industrial wet scrubbers, the scrubbing liquid is designed to react chemically with the pollutants, converting them into less harmful substances.
Method: For instance, acidic gases can be neutralized by an alkaline solution, or certain organic compounds might be oxidized into CO₂ and water.
Pressure Drop
Principle: Wet scrubbers create resistance to the flow of gas, known as pressure drop. This pressure drop is a key design consideration because it affects the scrubber’s energy consumption and efficiency.
Method: The design of the industrial wet scrubber (e.g., size of the venturi throat, type of packing material) is optimized to balance effective pollutant removal with minimal pressure drop.
Liquid Handling and Recycling
Principle: The contaminated liquid must be collected, treated, and sometimes recycled back into the scrubber system.
Method: The used scrubbing liquid is often directed to a treatment system where pollutants are removed or neutralized, after which the clean liquid can be reused or safely discharged.
industrial wet scrubber applications
Industrial wet scrubbers are widely used across various industries to control air pollution by removing particulates, gases, and other pollutants from exhaust streams. Here are some common applications:
Application: Industrial wet scrubbers are used to remove SO₂ from flue gas produced by burning fossil fuels like coal. This is critical for reducing acid rain and complying with environmental regulations.
Example: Flue Gas Desulfurization (FGD) systems in coal-fired power plants.
Chemical and Petrochemical Industries
Pollutants Controlled: Volatile organic compounds (VOCs), hydrochloric acid (HCl), ammonia, and other hazardous gases.
Application: Industrial wet scrubbers are employed to capture harmful gases released during chemical processing, storage, and transport. They are also used in odor control and gas absorption processes.
Example: Removal of hydrochloric acid fumes from chemical reactors.
Metal Processing and Foundries
Pollutants Controlled: Metal fumes, acid gases, and particulates.
Application: Industrial wet scrubbers capture metal oxides and fumes generated during smelting, refining, and metal finishing operations. They are also used in acid pickling processes to remove acid gases.
Example: Scrubbing of sulfuric acid fumes in steel pickling operations.
Mining and Mineral Processing
Pollutants Controlled: Dust, particulates, and acid gases like sulfur dioxide.
Application: Industrial wet scrubbers control dust emissions from crushing, grinding, and other material handling processes in the mining industry. They are also used to remove sulfur dioxide produced during the roasting of ores.
Example: Dust control in copper and zinc smelting operations.
Food and Beverage Industry
Pollutants Controlled: Odors, particulate matter, and VOCs.
Application: Industrial wet scrubbers are used to control odors and emissions from food processing operations, such as frying, baking, and drying. They are also employed in cleaning exhaust gases from cooking operations.
Example: Odor control in rendering plants or removal of oil mist in food frying processes.
Pulp and Paper Industry
Pollutants Controlled: Sulfur compounds, chlorine, and particulate matter.
Application: Industrial wet scrubbers are used in pulp mills to remove sulfur dioxide and other harmful gases generated during the pulping process. They are also used to control chlorine emissions in paper bleaching operations.
Example: Control of sulfur dioxide emissions from kraft pulp mills.
Pharmaceutical Industry
Pollutants Controlled: Solvent vapors, VOCs, and hazardous gases.
Application: Industrial wet scrubbers are employed to capture solvent vapors and hazardous gases produced during the manufacturing of pharmaceuticals. They help in maintaining a clean and safe working environment.
Example: Scrubbing of solvent vapors from coating and drying processes.
Waste Incineration Plants
Pollutants Controlled: Acid gases, dioxins, furans, mercury, and particulates.
Application: Industrial wet scrubbers are used to clean the exhaust gases from waste incinerators, removing toxic substances before they are released into the atmosphere.
Example: Removal of acid gases and heavy metals from municipal waste incineration flue gas.
Textile Industry
Pollutants Controlled: Acid gases, VOCs, and particulates.
Application: Industrial wet scrubbers control emissions from dyeing, printing, and finishing operations in the textile industry. They help remove odors and harmful gases.
Example: Scrubbing of emissions from dyeing processes using sulfur dyes.
Cement Industry
Pollutants Controlled: Dust, sulfur dioxide (SO₂), and other acid gases.
Application: Industrial wet scrubbers are used to control dust and gas emissions from kilns and clinker coolers in cement production.
Example: Dust and SO₂ control in cement kiln exhaust.
Marine Industry
Pollutants Controlled: Sulfur oxides (SOx) and particulate matter.
Application: Industrial wet scrubbers, also known as exhaust gas cleaning systems (EGCS), are used on ships to reduce sulfur emissions from marine engines, helping to meet international maritime environmental standards.
Example: Scrubbing of SOx emissions from ship engines using seawater or an alkaline solution.
Glass and Ceramics Industry
Pollutants Controlled: Particulates, fluorides, and acid gases.
Application: Industrial wet scrubbers are employed to control emissions from glass-melting furnaces and ceramic kilns, removing particulate matter and gaseous pollutants.
Example: Control of fluoride emissions from glass manufacturing.
