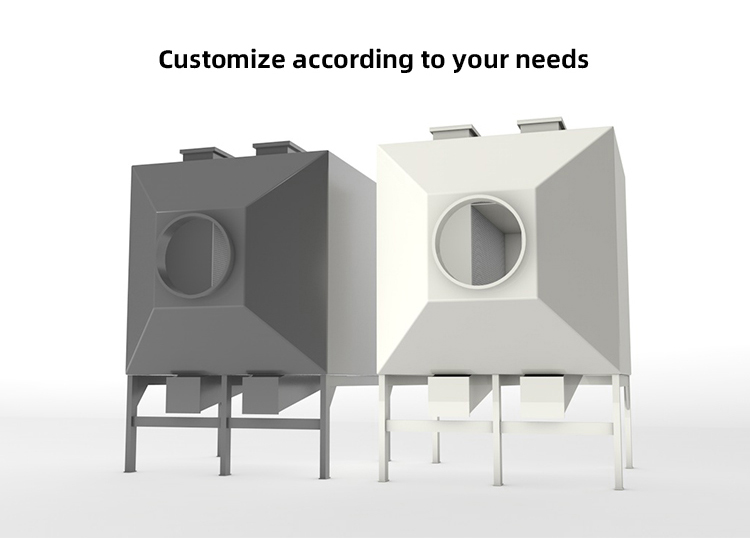

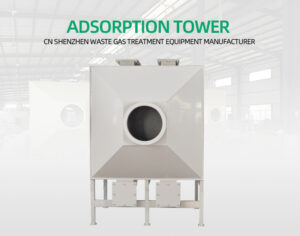

Carbon Adsorption Equipment

Carbon Adsorption Equipment

$599.00

The activated carbon adsorption tower is the best purification equipment for the treatment of organic waste gas and malodor. Activated carbon adsorption is an effective method to remove peculiar smells, natural and synthetic dissolved organic matter, and micro-polluting substances in water.

Description

The activated carbon adsorption tower is the best purification equipment for dealing with organic waste gas and odor treatment. Activated carbon adsorption is an effective way to remove the odor of water, natural and synthetic dissolved organic matter, micro polluting substances, and so on.

Most of the larger organic molecules, aromatic compounds can be firmly adsorbed on the surface or voids of the activated carbon, The results showed that humus, synthetic organic matter, and low molecular weight organic matter could be removed effectively. Adsorption of activated carbon as the depth of purification process, often used in the last stage of wastewater treatment, but also can be used for producing long water, purified water of life. When the dust particles and more, activated carbon adsorption device can simultaneously and water curtain machine and water spray tower and UV plasma used together to discharge waste gas purification.

Table parameters

Activated carbon tower common specification size
   Air volume Type Specification/mm With activated carbon Thickness Through area
1500-2500 2layers1side 1050*870*1000 100kg 10mm 0.64 (M2)
2500-3500 3layers1side 1150*870*1700 125kg 10mm 0.96(M2)
3500-5000 2layers1side 1550*870*1000 175kg 10mm 1.28 (M2)
5000-7000 3layers1side 1600*870*1700 275kg 10mm 1.92 (M2)
7000-10000 3layers1side 2150*870*1700 400kg 10mm 2.88 (M2)
10000-14000 3layers2side 1600*1730*1700 525kg 10mm 3.84(M2)
14000-18000 4layers2side 1800*1730*2000 700kg 10mm 5.12 (M2)
18000-22000 3layers2side 2150*1730*1700 775kg 10mm 5.76(M2)
22000-28000 3layers2side 2650*1730*700 1050kg 10mm 7.68(M2)
28000-35000 4layers2side 2900*1730*2000 1400kg 12mm 10.24(M2)
35000-45000 4layers2side 3500*1730*2400 1725kg 12mm 12.8(M2)
45000-55000 4layers2side 4000*1730*2400 2075KG 12mm 15.36(M2)
55000-6000 5layers2side 4000*1730*2900 2600kg 12mm 19.2(M2)

Activated carbon commonly used specifications are: cylindrical, diameter 4mm.
