PP plastic gas scrubber

PP plastic gas scrubber

PP plastic gas scrubber
PP plastic gas scrubber - Image 2
PP plastic gas scrubber - Image 3
PP plastic gas scrubber - Image 4

$1,000.00

PP gas scrubber is an efficient air pollution control equipment, which is widely used in industrial production. The main function is to absorb and separate the chemical components in the exhaust gas through the gas scrubber, with a purification efficiency of 85%. Processed and made of PP material, it has the characteristics of flame retardant, chemical resistance, lightweight and simple operation.

Category: Tags: , ,

Description

PP gas scrubber is purification equipment used to treat industrial waste gas pollution. The size and specifications need to be customized according to the waste gas emissions.

Equipment introduction:

PP gas scrubber is an efficient air pollution control equipment, which is widely used in industrial production. The main function is to absorb and separate the chemical components in the exhaust gas through the gas scrubber, with purification efficiency of 85%. Processed and made of PP material, it has the characteristics of flame retardant, chemical resistance, lightweight and simple operation.

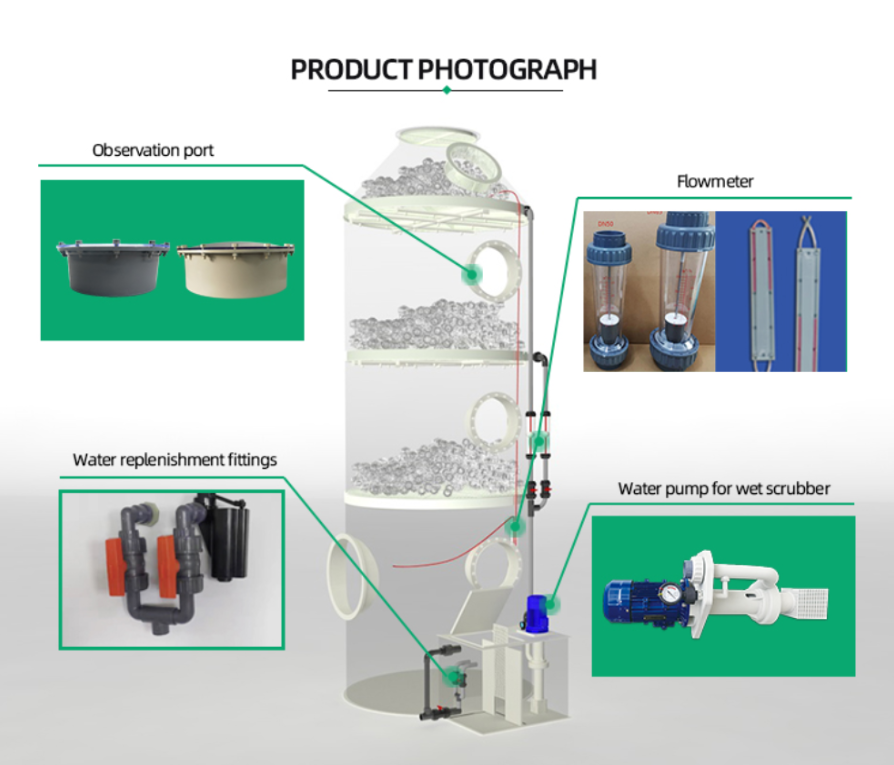

Plastic wet scrubber functional accessories

Structure and working principle

1. Structure

The structure of the PP gas scrubber is summarized as a defogging layer, spray layer, filler layer, transparent window, liquid storage tank, and water pump.

2. principle

The chemical gas enters the scrubber from the bottom of the scrubber, is sent into the intake space by the blower, and then rises evenly and flows into the packing absorption section. The packing layer is filled with polyhedral balls or Raschig rings to increase the contact neps of the exhaust gas with water. The pollutants in the exhaust gas can chemically react with the water, and the chemical substances will be absorbed by the water. As the absorption liquid of the filler layer flows down to the liquid storage tank, the exhaust gas that is not fully absorbed will rise to the spray layer and will be fully reacted by the high-speed spray water droplets.

Features of this equipment:

1. It is made of PP plastic with high flame-retardant properties.

2. Using high-temperature hot-melt welding technology, easy to install.

3. Various specifications and sizes can be customized to meet the needs of different industries.

Technical Parameter Table :

Air volume
(M3/H)		 Size
(mm)		 THK
(mm)		 Drain outlet
(mm)		 Water tank
size(mm)		 Inlet and
outlet size
(mm)		 Pump
(KW)		 Wind
resistance
(Pa)
3000 800    8    DN32 600*700*H700      315 0.75 500
5000 1000    8    DN40 600*800*H700      400  1.5 500
8000 1200    8    DN40 600*1000*H700      500  2.2 500
10000 1500   10    DN40 700*1000*H700      550  2.2 500
12000 1600   10    DN50 700*1000*H700      600 3.75 500
15000 1800   10    DN50 700*1200*H700      650 3.75 500
20000 2000   10    DN50 700*1200*H700      750  5.5 500
25000 2200   10    DN50 700*1200*H700      950  5.5 600
30000 2500   12    DN65 700*1200*H700     1000  5.5 600
35000 2700   12    DN65 1000*700*H700     1100 7.5 600
40000 2900   12    DN65 1000*700*H700     1200 7.5 600
45000 3000   12    DN65 1000*700*H700     1250  7.5 600

1. This form is a common size and we can customize different sizes and requirements according to your needs.
2. The material is polypropylene.
3. Equipment design wind speed 1.8m/s

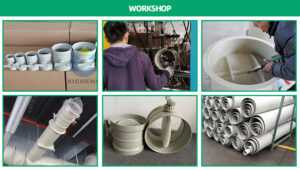

Workshop display

Product feature:

  1. high quality and high efficiency: It can process a variety of mixed organic waste gas at the same time, with strong adsorption capacity;
  2. easy to operate： It can run with one key, modular production, and easy installation, stable operation;
  3. long service life： pp polypropylene flame retardant materials, small equipment area, convenient maintenance, low operation cost.

Company Services

1. PERSONALIZED CUSTOMIZATION:
The product’s length can be customized according to customers’ requirements and drawings.
2. INSTALLATION:
Our company can send professional engineers to guide device installation and provide a professional plan.
3. AFTER SERVICE:
Our equipment will have one-year life of quality assurance, repair, and replacement are guaranteed.
