Description
Product Overview

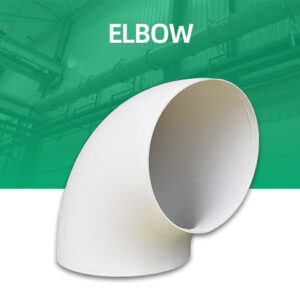

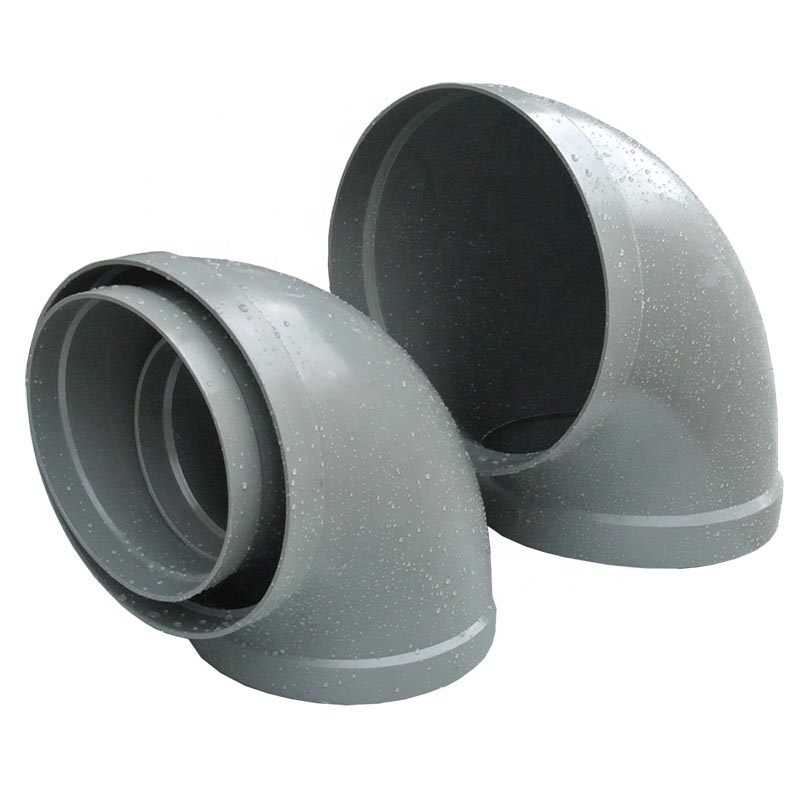

This series of PP elbows is specifically engineered for industrial exhaust, chemical ventilation, and corrosive media piping systems. Available in 45° and 90° standard angles, each elbow is manufactured from virgin PP resin using a one-shot injection molding process. The result is a uniform wall thickness with no secondary weld seams, which eliminates seam leakage risks at the source. The integral socket ends allow fast push-fit assembly followed by heat fusion or socket welding, dramatically improving installation speed and system sealing integrity.
Whether used for small laboratory fume extraction or as main headers in large chemical plant ventilation networks, these elbows deliver a durable, low-maintenance fluid directional change solution from material to structure.
Core Advantages of XiCheng PP Elbows
Our polypropylene elbows are engineered to outperform competitors in every critical aspect:
- Industry-Leading Chemical Corrosion Resistance: Manufactured from 100% virgin polypropylene resin, our elbows resist over 120 common chemicals including sulfuric acid, hydrochloric acid, sodium hydroxide, and most organic solvents. This makes them ideal for use in chemical plant exhaust gas treatment systems paired with our PP wet scrubbers.
- UL-Listed Flame Retardant Performance: All our PP elbows meet UL 94 V-0 flame retardant standards, significantly reducing fire risks in industrial ventilation systems. This is especially important for facilities handling flammable gases or dust.
- Seamless One-piece Molding Structure: Unlike welded or assembled elbows, our one-piece design eliminates splicing gaps that cause air leakage. Independent testing shows our elbows reduce system air leakage by up to 95% compared to conventional welded alternatives, lowering energy costs and improving exhaust efficiency.
- Dual Connection Options for Versatility: Support both quick socket connection for standard installations and hot melt welding for high-pressure or high-corrosion applications. Both methods are compatible with all standard PP duct sizes and require minimal training to perform.
- Complete Size Range with Customization: Standard sizes from φ63mm to φ315mm are in stock and ready to ship. We also offer custom angles (15°, 30°, 60°, 180°), wall thicknesses, and colors to meet specific project requirements.
- Smooth Inner Surface for Optimal Airflow: Precision molding creates a mirror-smooth inner surface that minimizes airflow resistance and reduces pressure drop. This allows your centrifugal fans to operate more efficiently, saving energy and extending equipment life.
Comprehensive Specifications
| Parameter | Standard Options | Customization Available |
|---|---|---|
| Product Angles | 45°, 90° | 15°, 30°, 60°, 180° |
| Standard Sizes | φ63mm, φ75mm, φ90mm, φ110mm, φ160mm, φ200mm, φ250mm, φ315mm | φ355mm to φ1200mm |
| Material Options | 100% Virgin Polypropylene (PP) | PVC, PP-FRP composite |
| Wall Thickness | Standard (SN4), Heavy Duty (SN8) | Custom thicknesses |
| Connection Methods | Socket connection, hot melt welding | Flanged connection |
| Production Process | Precision injection molding | Hand lay-up for large sizes |
| Standard Color | Gray | Blue, white, black, custom RAL colors |
| Operating Temperature Range | -10℃ to 80℃ | Special grades for -20℃ to 110℃ |
| Pressure Rating | 0.6MPa (standard) | Up to 1.0MPa (heavy duty) |
| Certification | CE, RoHS, UL 94 V-0 | ISO 9001, FDA food grade |
Production Process & Quality Control
Every XiCheng PP elbow undergoes a rigorous 5-step manufacturing process to ensure consistent quality:
- Raw Material Inspection: All incoming PP resin is tested for melt flow rate, density, and chemical composition to ensure it meets our strict specifications.
- Precision Injection Molding: Using computer-controlled injection molding machines with temperatures maintained within ±1℃, we produce elbows with uniform wall thickness and precise dimensional accuracy.
- Defect Removal: Each elbow is visually inspected for cracks, bubbles, and surface imperfections. Any defective parts are immediately discarded.
- Pressure Testing: Random samples from each production batch undergo hydrostatic pressure testing at 1.5 times the rated pressure for 24 hours to ensure structural integrity.
- Final Packaging: Elbows are individually wrapped in protective film and labeled with product specifications, batch number, and production date for traceability.
For detailed information on our quality control procedures, download our PP Pipe Fittings Quality Assurance Manual.
Step-by-Step Installation Guide
Socket Connection (Recommended for Most Applications)
- Cut the PP pipe to the required length using a fine-tooth saw, ensuring a clean, square cut.
- Remove any burrs from the pipe end with a deburring tool.
- Clean both the pipe end and the elbow socket with isopropyl alcohol to remove dirt and grease.
- Apply a thin, uniform layer of PP solvent cement to both surfaces.
- Insert the pipe fully into the elbow socket, twisting 1/4 turn to ensure even distribution of the cement.
- Hold the joint firmly for 30 seconds to allow the cement to set.
- Allow the joint to cure for 24 hours before pressurizing the system.
Hot Melt Welding (For High-Pressure/High-Corrosion Applications)
- Prepare the pipe and elbow ends as above.
- Set the hot melt welding machine to 260℃ and allow it to reach operating temperature.
- Simultaneously heat the pipe end and elbow socket for the recommended time (varies by size).
- Remove both parts from the heater and immediately push them together with firm, even pressure.
- Hold the joint in place until it cools completely (approximately 1-2 minutes).
- Inspect the weld bead for uniformity and absence of defects.
For video demonstrations and troubleshooting tips, visit our PP Duct System Installation Guide.
Typical Application Scenarios
PP 45° and 90° elbows are essential components in a wide range of industrial and commercial ventilation systems:
- Chemical Processing Plants: Used in exhaust systems for acid mist, alkaline fumes, and organic solvent vapors, paired with caustic scrubbers and activated carbon adsorption towers.
- Electroplating & Metal Finishing: Ideal for handling corrosive fumes from plating baths, anodizing lines, and etching processes.
- Semiconductor Manufacturing: Used in clean room ventilation systems to exhaust toxic process gases and maintain air quality.
- Pharmaceutical Production: Suitable for exhaust systems in laboratories and production areas where chemical resistance and hygiene are critical.
- Laboratory Fume Hoods: Standard components in fume hood ductwork to safely exhaust hazardous chemicals.
- Wastewater Treatment Plants: Used in ventilation systems for aeration tanks, sludge processing areas, and chemical storage facilities.
View our project gallery to see our PP elbows in action in real-world installations.
Matching Polypropylene Pipe Fittings & Accessories
Complete your ventilation system with our full range of compatible products:
- PP Plastic Tee Pipe Fittings for branch connections
- PP Pipe Reducers & Concentric Reducers for size transitions
- PP Manual & Electric Butterfly Valves for airflow control
- PP Flanges & Gaskets for equipment connections
- PP Flexible Duct Connectors to absorb vibration and compensate for thermal expansion
- PP Pipe Hangers & Supports for secure installation
Why Choose XiCheng EP?
With over 15 years of experience in manufacturing anti-corrosion plastic ventilation equipment, XiCheng EP has established itself as a trusted partner for industrial clients worldwide. Here’s why customers choose us:
- ISO 9001 Certified Manufacturing: All our products are manufactured in accordance with international quality standards.
- In-House Engineering Team: Our experienced engineers can provide custom design solutions and technical support for complex projects.
- Fast Delivery: Standard sizes are in stock and can be shipped within 3-5 business days. Custom orders typically ship within 2-3 weeks.
- Competitive Pricing: As a direct manufacturer, we offer factory-direct prices without middleman markup.
- Comprehensive Warranty: All our PP elbows come with a 5-year warranty against manufacturing defects.
- Global Shipping: We ship to over 50 countries worldwide and can handle all aspects of international logistics.
For bulk orders, custom specifications, or technical assistance, contact our engineering team today for a free, no-obligation quote.
Frequently Asked Questions (FAQ)
Q: What is the difference between PP and PVC elbows?
A: PP elbows offer better chemical resistance, higher temperature tolerance, and greater impact strength than PVC elbows. They are also more flexible and less likely to crack under thermal stress. PVC elbows are generally less expensive and suitable for less demanding applications. For help choosing the right material for your project, read our article: PP vs PVC: Which is Better for Industrial Ventilation?
Q: Can PP elbows be used outdoors?
A: Yes, our standard PP elbows are UV-stabilized and can be used outdoors. For prolonged exposure to direct sunlight, we recommend adding a protective coating or using our UV-resistant PP grade.
Q: What is the maximum operating temperature for PP elbows?
A: Standard PP elbows can operate continuously at temperatures up to 80℃. For higher temperature applications, we offer special heat-resistant PP grades that can withstand temperatures up to 110℃.
Q: How do I determine the correct size elbow for my duct system?
A: The elbow size should match the outer diameter of your PP pipe. For example, a φ110mm elbow is designed to fit a φ110mm PP pipe. If you need help sizing your duct system, our engineering team can provide detailed calculations and recommendations.
Q: Do you offer custom colors and branding?
A: Yes, we can produce PP elbows in any RAL color and can add your company logo or branding for orders over 500 pieces.
