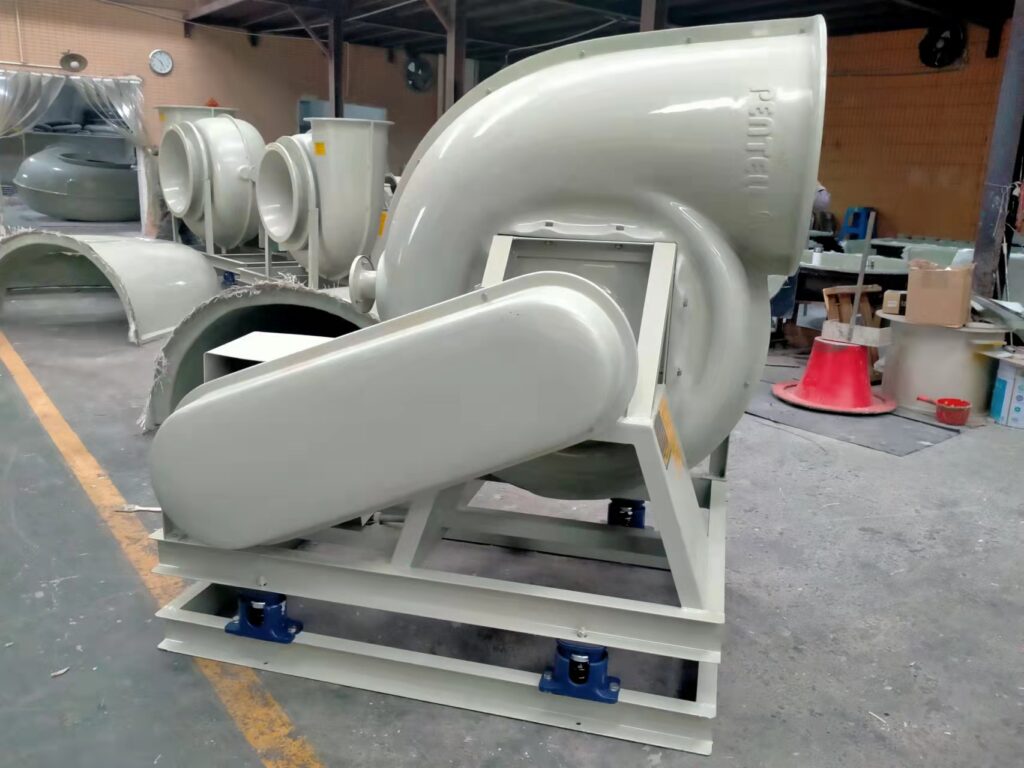

FRP glass fiber reinforced plastic anticorrosive centrifugal fan is mainly composed of an impeller, casing, air inlet, casing support frame, belt, pulley, pulley cover, base and relative base, shock absorber, and other parts of which are equipped with motors.
FRP glass fiber reinforced plastic anticorrosive centrifugal fan has a maximum air volume of 150,000 CMH with high performance, high efficiency, low noise, low vibration, and energy saving, which can create profits for you and is suitable for a variety of working conditions.
Instructions for use
Please check whether the installation foundation is good, whether the wire connection is correct, whether the electrical system meets the specifications, and ensure the normal operation of the fan.
The relative humidity of the fan is ≤100%, the temperature of the glass fiber reinforced plastic fan is -20℃~60℃, the temperature of the plastic fan is 0℃~50℃, and the dust content of gas particles is ≤150mg/m³.
The inlet of the fan should be equipped with a protective net to prevent the fan from flying out and hurting people after sucking in a hard object; a steel safety net must be installed when installing the roof fan to prevent the motor from falling off and causing an accident. Note that the fan cannot be installed horizontally or upside down.
Please make sure that the fan is running in the correct direction and must not be reversed, otherwise, the motor will burn out.
The normal exhaust medium of the fan is dry and clean air. For fans working in an environment with oily fume, dust, and acid-base accumulation gas, please clean the fan blades regularly. Do not strike the fan blades by gravity during cleaning, and make sure that the fan blades are not any residual paint, dust, or acid-base crystals that will prevent the fan from being unbalanced and causing the fan to vibrate.
The power supply must be cut off before disassembling and disassembling the maintenance cargo of the fan to avoid accidents.
When the fan has a serious failure (severe vibration/spindle and blade deformation/bearing damage), non-professionals are not allowed to disassemble the fan to avoid danger.
Regular maintenance instructions
Oil lubrication:
Please replace 30#, 40# engine oil or No. 3 lithium base grease after the fan has been used for 90 days, and then add engine oil as appropriate. When adding engine oil, do not exceed half of the oil mirror.
The fan blade is easy to deposit grease, dust, and other attachments, pay attention to cleaning the inside of the casing and the debris drawn by the fan blade
For fans working in an environment with oily fume, dust, and acid-base accumulation gas, clean it out every 15-30 days.
