Odor control activated carbon packed bed absorption column

Odor control activated carbon packed bed absorption column

Activated carbon adsorption tower
activated carbon adsorption box

$899.00

The odor control activated carbon packed bed absorption column is the best purification equipment for the treatment of organic waste gas and malodor. Activated carbon adsorption is an effective method to remove peculiar smells, natural and synthetic dissolved organic matter, and micro-polluting substances in water.

Category: Tags: , ,

Description

The odor control activated carbon packed bed absorption column is mainly composed of activated carbon, a supporting layer. It has developed voids, a large specific surface area, and a high adsorption capacity. Dust gas powered by a fan, positive pressure or negative pressure get into the tower body, due to the unbalance and unsaturated molecular attraction or chemistry bond on the surface of the activated carbon when in contact with gas the solid surface can attract a gas molecule to make them strong and keep them on the solid surface. Then the pollutants are absorbed and get into the filter system.

Working principle

The odor control activated carbon packed bed absorption column mainly removes the exhaust gas’s organic waste gas (VOC) and odor. It has a good adsorption effect on organic waste gas and smell, and the treatment efficiency is over 80%.

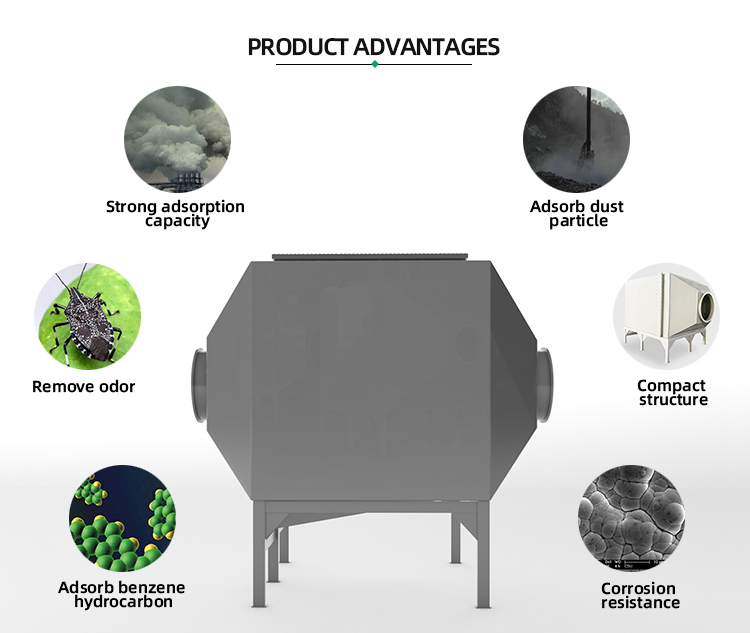

Performance advantages

  1. High adsorption efficiency and large adsorption capacity.
  2. Convenient maintenance.
  3. Simple and safe operation.
  4. Activated carbon sources are cheap.

Composition structure

​​​​

Specifications:
air volume-m 3 /h  size-mm with activated carbon thickness pass area
50-2500 1050*870*1000 125KG 8mm 0.64（M2）
2500-3500 1100*870*1700 175KG 8mm 0.96(M2)
3500-5000 1550*870*1000 250KG 8mm 1.28（M2）
5000-7000 1600*870*1700 350KG 10mm 1.92（M2）
7000-10000 1750*870*1700 525KG 10mm 2.88（M2）
10000-14000 1600*1730*1700 700KG 10mm 3.84（M2）
14000-18000 1800*1730*2000 925KG 10mm 5.12（M2）
18000-22000 2150*1730*1700 1050KG 10mm 5.76（M2）
22000-28000 2650*1730*1700 1400KG 10mm 7.68 (M2)
28000-35000 2900*1730*2000 1850KG 12mm 10.24 (M2)
35000-45000 3500*1730*2400 2300KG 12mm 12.8(M2)
45000-55000 4000*1730*2400 2775KG 12mm 15.36(M2)
55000-60000 4000*1730*2900 3475KG 12mm 19.2(M2)
The specification of the activated carbon:  φ4mm or 100*100*100mm
