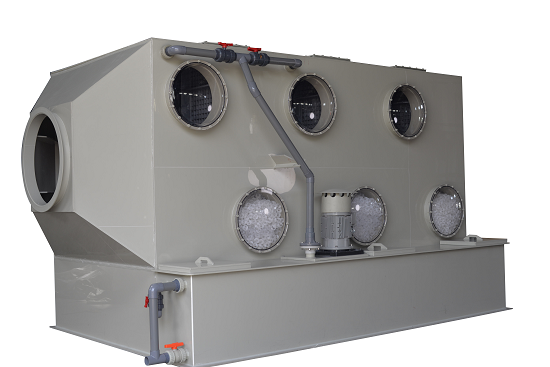

Horizontal wet scrubber equipment manufacturer

Horizontal wet scrubber equipment manufacturer

horizontal scrubber
horizontal wet scrubber

$1,300.00

The horizontal wet scrubber equipment is suitable for installation in a small space and is mostly used for indoor installation. It can be used to treat soluble gases, liquid particles, solid particles, and ozone.

Category: Tags: , ,

Description

The full name of the horizontal wet scrubber equipment is a horizontal crossflow scrubber. Hereinafter referred to as horizontal spray tower. It is suitable for installation in a small space and is mostly used for indoor installation.

1. Equipment introduction:

The horizontal wet scrubber equipment is suitable for installation in a small space and is mostly used for indoor installation. It can be used to treat soluble gases, liquid particles, solid particles, and ozone. In industrial use, it can be used as a cooling tower, and humidifier, and is suitable for waste gas treatment in various engineering processes.

2. Structure and working principle

structure

The structure of the horizontal wet scrubber equipment: the acid and alkali waste gas is sucked in by the connecting air pipe and passes through the packing layer from bottom to top. The mixed circulating absorbent is sprayed evenly from the top of the tower through the liquid distributor. Into the packing layer, and flow down along the surface of the backing layer, and into the circulating water tank.

principle

Harmful exhaust gas is forced into or sucked into the air inlet section by the centrifugal fan, then flows to the packing layer, and reacts with the spray liquid. The horizontal wet scrubber equipment uses clean water as the circulating absorption liquid, and the circulating water is sprayed from the water distributor on the upper part of the tower to the packing layer to wet the surface of the packing to form a flowing liquid film. The gas and liquid phases in the packing layer are in countercurrent flow, and the gas and liquid phases are in countercurrent contact in the tower body. The certain solubility of the harmful gas in the absorbent is used, and the soluble part is continuously integrated into the absorption liquid to reach the harmful group in the degradation gas. The purpose of sub-content.

3. Features of this equipment:

1. The horizontal wet scrubber equipment occupies a small space.

2. Low resistance, low energy consumption, and low noise.

3. polypropylene material has the characteristics of flame retardant, chemical corrosion resistance, and high hardness.

Technical Parameter Table :

Air volume
(M3/H)		 Size
(mm)		 THK
(mm)		 Drain outlet
(mm)		 Water tank
size(mm)		 Inlet and
outlet size
(mm)		 Pump
(KW)		 Wind
resistance
(Pa)
3000 800    8    DN32 600*700*H700      315 0.75 500
5000 1000    8    DN40 600*800*H700      400  1.5 500
8000 1200    8    DN40 600*1000*H700      500  2.2 500
10000 1500   10    DN40 700*1000*H700      550  2.2 500
12000 1600   10    DN50 700*1000*H700      600 3.75 500
15000 1800   10    DN50 700*1200*H700      650 3.75 500
20000 2000   10    DN50 700*1200*H700      750  5.5 500
25000 2200   10    DN50 700*1200*H700      950  5.5 600
30000 2500   12    DN65 700*1200*H700     1000  5.5 600
35000 2700   12    DN65 1000*700*H700     1100 7.5 600
40000 2900   12    DN65 1000*700*H700     1200 7.5 600
45000 3000   12    DN65 1000*700*H700     1250  7.5 600

1. This form is a common size and we can customize different sizes and requirements according to your needs.
2. The material is polypropylene.
3. Equipment design wind speed 1.8m/s
