Description

The waste gas treatment equipment has the characteristics of simple structure, low rose, and high purification. It can effectively remove saliva gas (HCl), fluorinated gas (HF), ammonia (NH3), sulfuric acid mist (H2SO4), chromic acid mist (CrO3), Bone acid cartilage (CrO3) HCN), alkali salt (H2S), graphite hydrogen gas (H2S), formalin (HCHO) and other bubbles. The two-phase liquid is fully contacted to absorb and react. After the acid mist is demisted, the mist is purified, and the atomization plate is extracted atomized and discharged into the atmosphere by the fan. The absorption liquid is pressurized by a water pump at the bottom of the tower sprayed down in the tower and then circulated to the tower after being purified and recycled. The acid bottom mist reaches the discharge standard.

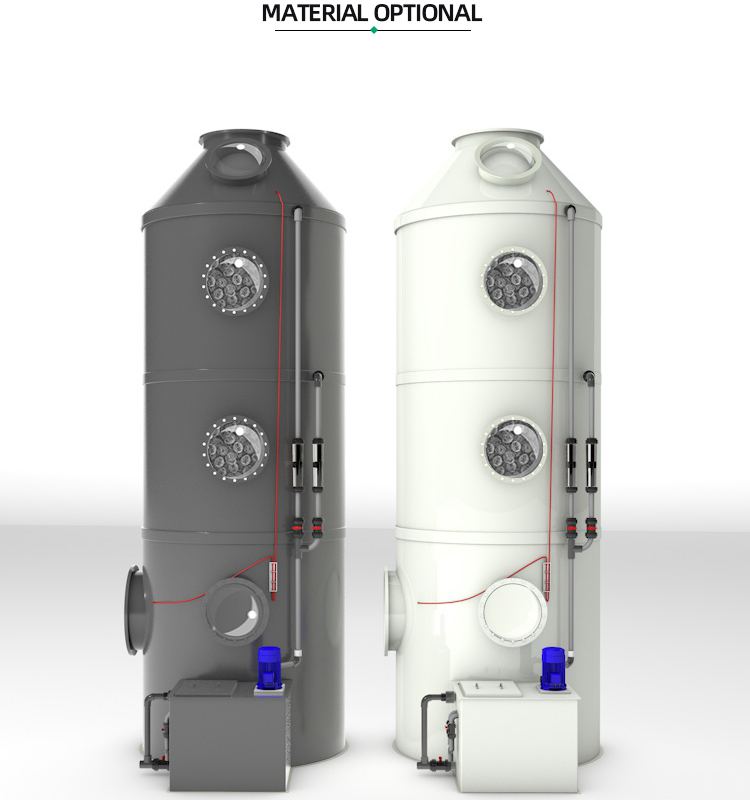

The PP wet scrubber includes a tower body, a packing layer, a defogging layer, a circulating sprinkler pipe, and a circulating water tank.

The wet scrubber body includes exhaust gas inlets, outlets, windows, maintenance inlets, and the structure of the tower internal support and fixing structure to ensure the body’s tolerance of the acid gas scrubber and increase its service life.

Principle and structure of acid gas scrubber

The role of an acid gas scrubber is to absorb impurities in the gas with a solvent, which can be used in various industries that require gas scrubbing. The waste gas produces liquid removal enters the reaction and fully contacts with the scrubbing liquid in the tower, which can remove impurities and achieve the function of purifying gas. Including body, filling layer, mist layer, circulating sprinkler pipe, circulating water tank, etc.

Features: PP wet scrubber has low noise, stable operation, simple operation, and convenience; it is used in the electroplating industry and the acid-alkali battery produced by Wuduo surface treatment for neutralization. It uses a high-quality PP board, and the air volume can be adjusted randomly.

Application field

Factories and enterprises mainly used for industrial production: electronics industry, semiconductor manufacturing, PCB manufacturing, LCD manufacturing, iron and steel metal industry, electroplating and metal surface treatment industry, pickling process, dye/pharmaceutical/chemical industry, deodorization/ Neutralization of chlorine, destruction of SOx/NOx of combustion exhaust gas, and destruction of air pollution. Because the PP wet scrubber has low cost and high purification efficiency, and it is used by most manufacturers, it has become the most important air pollution control equipment.

Product parameters

Air volume(M3/H)	Size(mm)	THK(mm)	Drain outlet(mm)	Water tank size(mm)	Inlet and outlet size (mm)	Pump(kW)	Wind resistance (Pa)
200-4000	800	8	DN63	700*550*H600	315	0.75	500
4000-5500	1000	8	DN63	750*600*H600	400	1.5	500
5500-8000	1200	8	DN63	750*600*H600	500	1.5	500
8000-12000	1500	8	DN63	750*600*H600	600	2.2	500
12000-17000	1800	10	DN63	850*600*H700	650	3	500
17000-21000	2000	10	DN63	850*600*H700	700	4	500
21000-25000	2200	10	DN63	950*600*H700	750	4	600
25000-32000	2500	12	DN63	950*600*H700	800	5.5	600
32000-40000	2800	12	DN63	1000*700*H700	900	7.5	600
40000-48000	3000	12	DN63	1000*700*H700	1000	7.5	600

This form is a common size and we can customize different sizes and requirements according to your needs.

Packing

Company Profile

Shenzhen XiCheng Environmental Technology Co., LTD. is located in Guangming District, Shenzhen. It is an environmental protection equipment manufacturer which has been focusing on the environmental protection industry for many years and specializing in the production and sales of environmental protection equipment and various accessories.

Product display

Workshop display

product feature

1. high quality and high efficiency: It can process a variety of mixed organic waste gas at the same time;
2. easy to operate: It can run with one key, modular production, and easy installation, stable operation;

3. long service life: pp polypropylene flame retardant materials, small equipment area, convenient maintenance, low operation cost.

Company Service

1. PERSONALIZED CUSTOMIZATION: The product’s length can be customized according to customers’ requirements and drawings.
2. INSTALLATION: Our company can send professional engineers to guide device installation and provide a professional plan.
3. AFTER SERVICE: Our equipment will have one-year life of quality assurance, repair, and replacement are guaranteed.

Why choose us

1. 16 years manufacture experience,
2. on-time delivery (5-20 days for stocking),
3. 12 months warranty,
4. the professional design team and sales service,
5. installation support technical training,
6. low MOQ: 1 PC accepted,
7. high quality,
8. factory direct price,
9. customized,
10. after-sales services,
11. etc.

FAQ

1. who are we?
We are based in Guangdong, China, start from 2016,sell to Mid East(10.31%),North America(18.87%),South America(5.88%),Southeast Asia(8.83%),Oceania(4.76%), Europe(23.28%),Africa(6.66%),Eastern Asia(8.54%),South Asia(12.78%). There are total about 11-50 people in our office.

2. how can we guarantee the quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. what can you buy from us?
Wet Scrubber, Activated Carbon Air Filter, Air Damper Valve, PP Pipe, PP Tank

4. why should you buy from us, not from other suppliers?
Our company has been focusing on the environmental protection industry for many years and specializes in the production and sales of environmental protection equipment and accessories. Our company has an excellent team with advanced service concepts.

5. what services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW；
Accepted Payment Currency: USD, HKD;
Accepted Payment Type: T/T;
Language Spoken: English, Chinese
