PP Air duct is a piping system used for air transportation and distribution. PP air duct is a vent pipe made of PP material. Compared with other material ducts, it has wear resistance, no scaling, low flow resistance, corrosion resistance, etc. It has characteristics, anti-freeze cracking, and a good sound insulation effect. It is a kind of pipe that is widely used at present. Due to these characteristics of the PP air duct, it is also used in waste gas environmental protection equipment to reduce the concentration of harmful gases and allow air to circulate. Since the PP ducts are all section by section, if they are improperly connected, leakage will occur and the desired effect will not be achieved. Therefore, they must be installed in strict accordance with the steps.
PP duct is a metal or composite pp duct used in industrial ventilation systems and civil building ventilation and air-conditioning projects. It is a municipal infrastructure that circulates air and reduces the concentration of harmful gases.
The main finished materials such as plates and profiles used in the production and installation of the ducts in the pp duct shall comply with the current national design and relevant product standards, and shall be inspected and qualified by the factory. When materials enter the market, they should be checked and accepted in accordance with current national standards.
The pp duct is a kind of urban infrastructure, its purpose is to circulate the air and reduce the concentration of harmful gases. The main finished materials such as plates and profiles used for the production and installation of pp air ducts and ducts shall comply with the current national design standards and relevant product regulations, and shall be inspected and qualified by the factory.
When materials enter the market, they should be checked and accepted in accordance with current national standards. pp air duct according to the key points of the material: generally: steel duct (ordinary steel), galvanized iron (tin) pipe, stainless steel vent pipe, pp air pipe, plastic vent pipe, composite vent pipe, color steel sandwich insulation board vent pipe, double Surface aluminum foil insulation ventilation pipe, single color steel insulation ventilation pipe, ventilation pipe used in adhesive layer (etc.), mine ventilation pipe, plastic ventilation pipe, etc.;

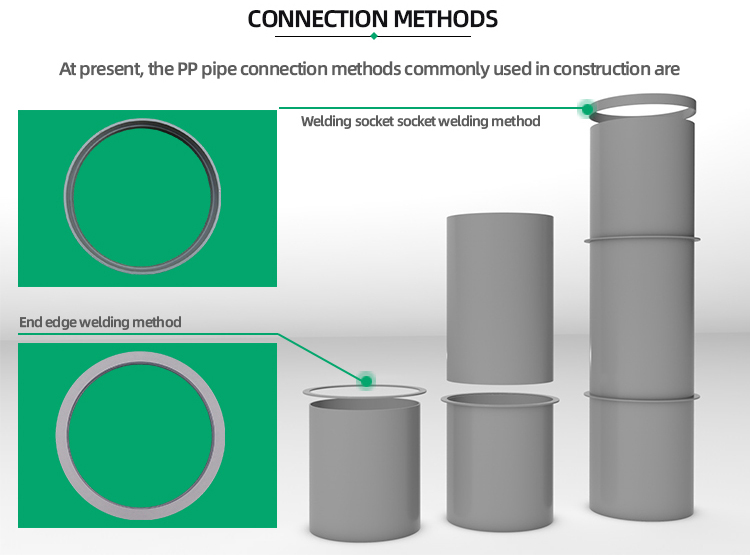

In general pp air pipe connection, the cut should be tight and firm, and the four corners of the rectangular pipe should have positioning and sealing measures.
1. Insert type connection
The bayonet-type air duct is connected with the rectangular air duct, and different forms of bayonet are inserted into both ends of the air duct.
2. PP duct connection
Both ends of each pipe section are rolled into drum rods connected by bands, and one end is shrunk into a small opening. When installing, insert the small port into the large port according to the airflow direction. On the outside, fasten the drum rods at the two tube ends and connect with bolts, and the bolts are fixed and fastened to the earrings.
3. Hose connection
The hose connection is mainly used to connect the spiral air pipe and various components (such as the air outlet on the side of the static pressure box of the diffuser, etc.).
4. Insert and connect PP duct
The plug connection is mainly used for rectangular or circular duct connections. First, make the connecting pipe, and then insert the connecting pipe into the air ducts on both sides. Then, tighten it with self-tapping screws or rivets. The pp duct is economical, and the thickness of the pp duct processing board can be reduced by 10%-15% under the same diameter. It reduces costs, and the efficiency during hoisting is about twice that of a rectangular pp duct. Under the same plate thickness and pipe diameter, the strength of the pp duct is higher. On the same cross-section, the spiral duct structure has more reasonable tension and better rigidity, so it can greatly reduce noise and vibration.
